Late

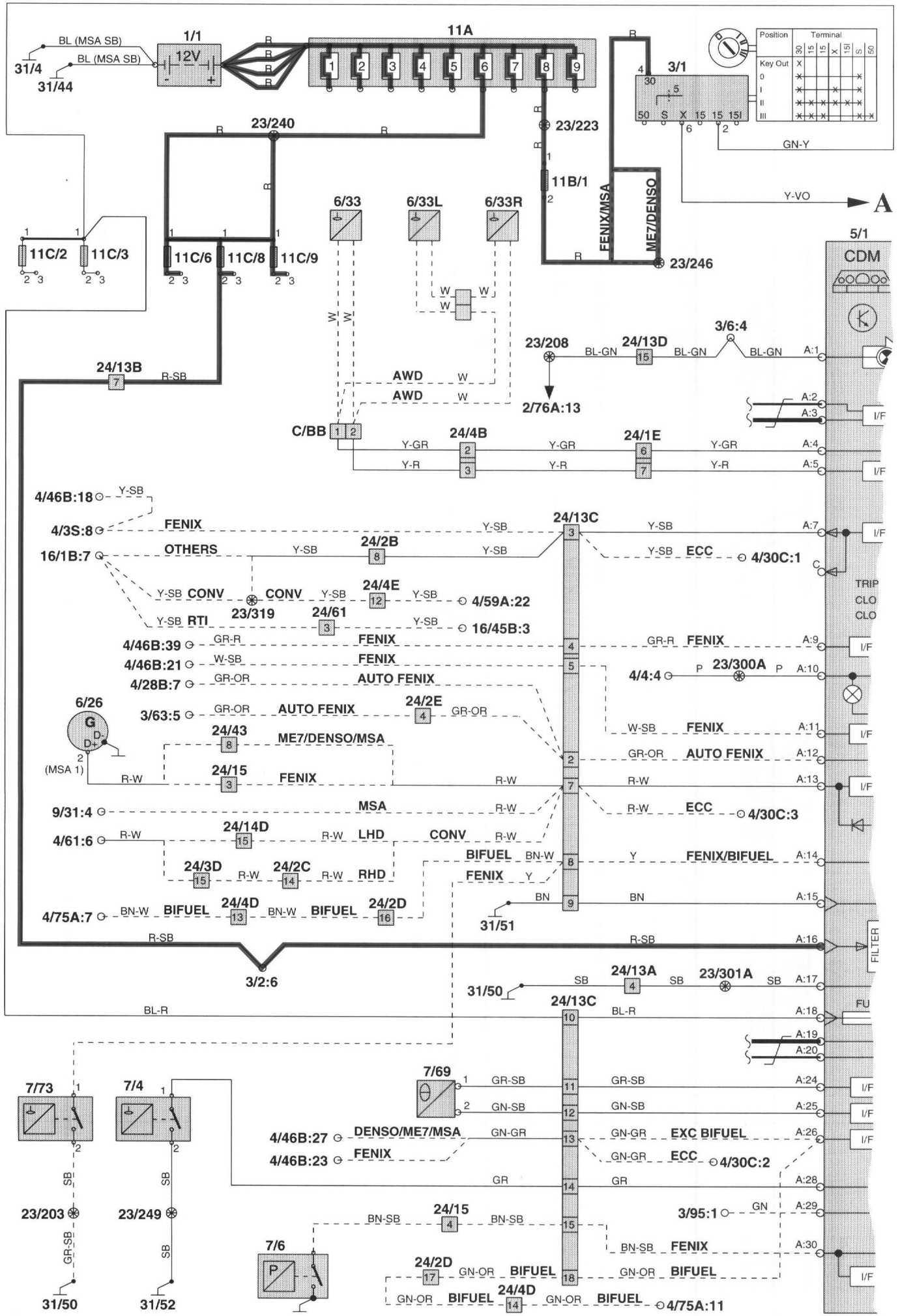

Wiring Diagram - Fig. 1:

Wiring Diagram - Fig. 2:

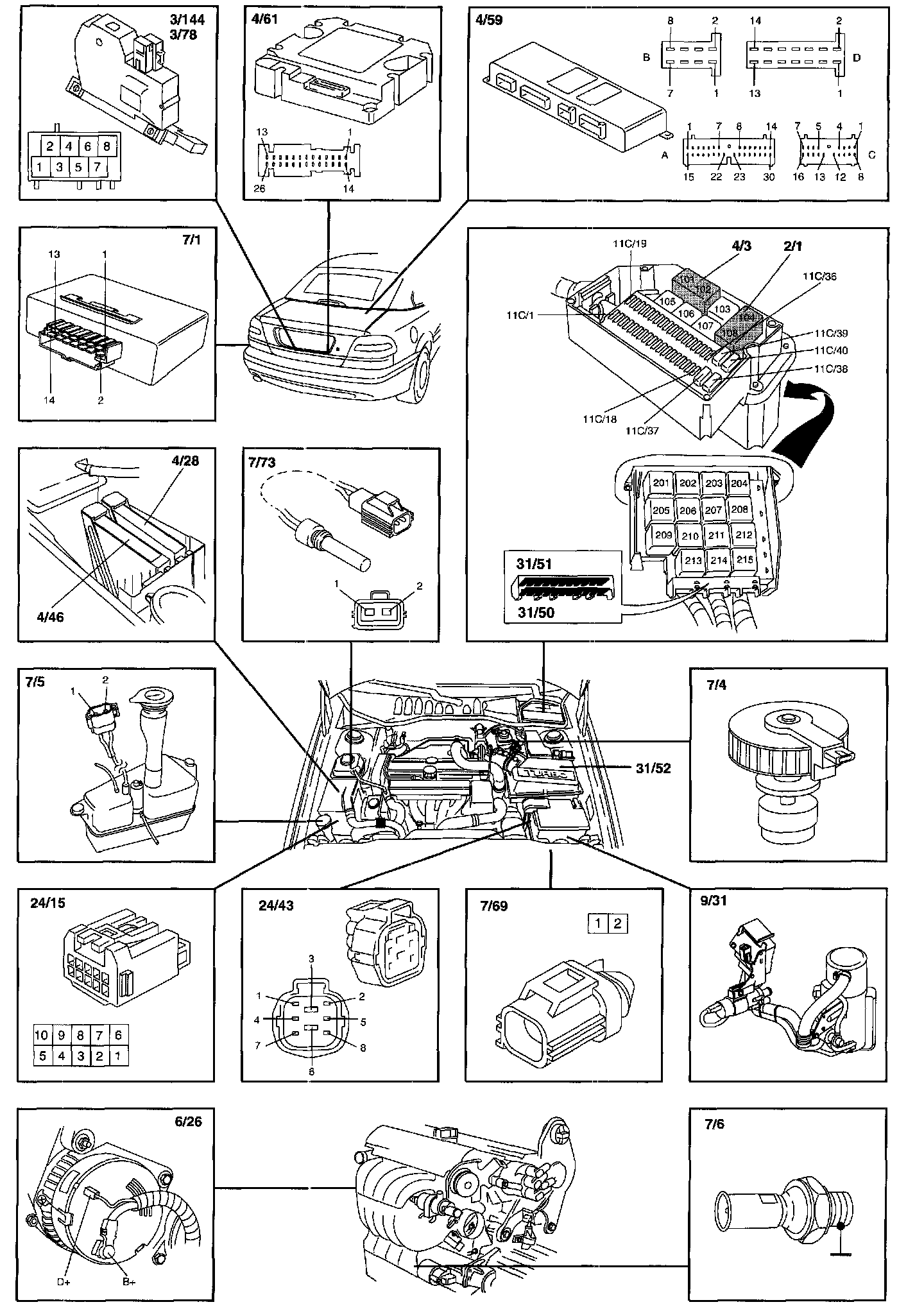

Component Location - Fig. 1:

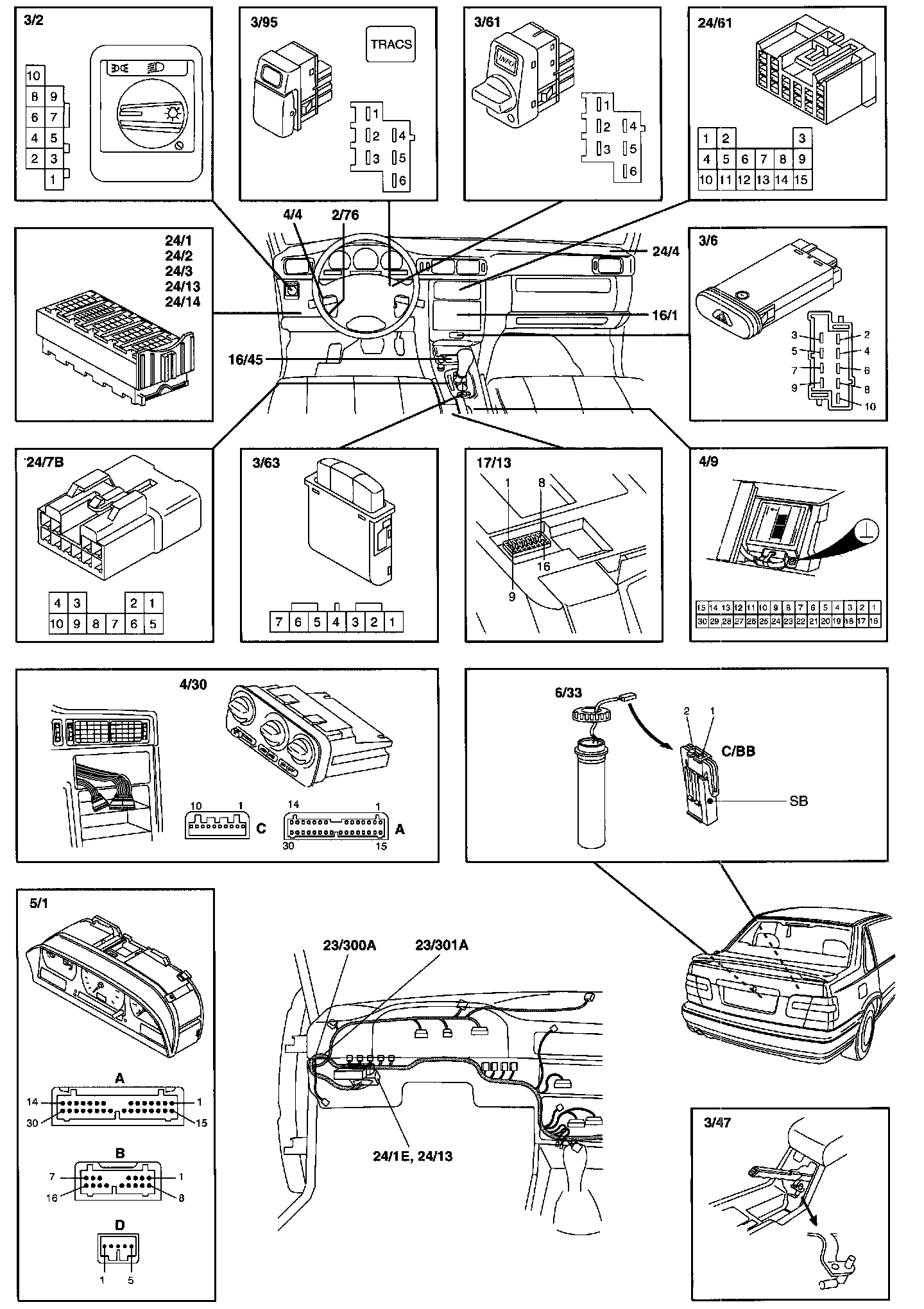

Component Location - Fig. 2:

To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
