Shift Interlock, A/T

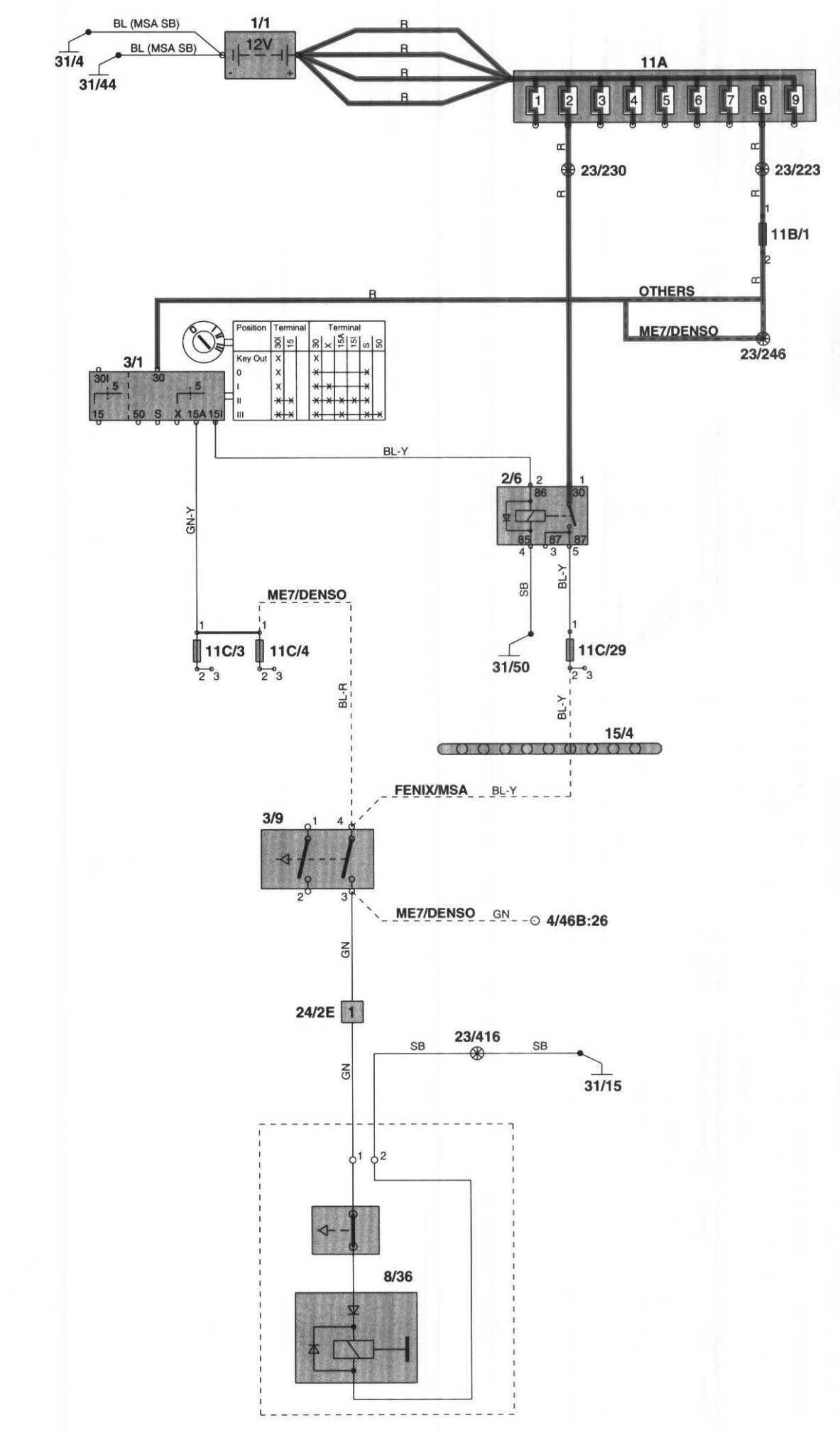

P-shift Lock, Automatic Transmission - Wiring Dia.:

P-shift Lock, Automatic Transmission - Component Loc.:

To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
