System Diagram

24/35
1 30-supply
2 X Supply
3 High beam
6 Rheostat, variable supply
8 Ground terminal

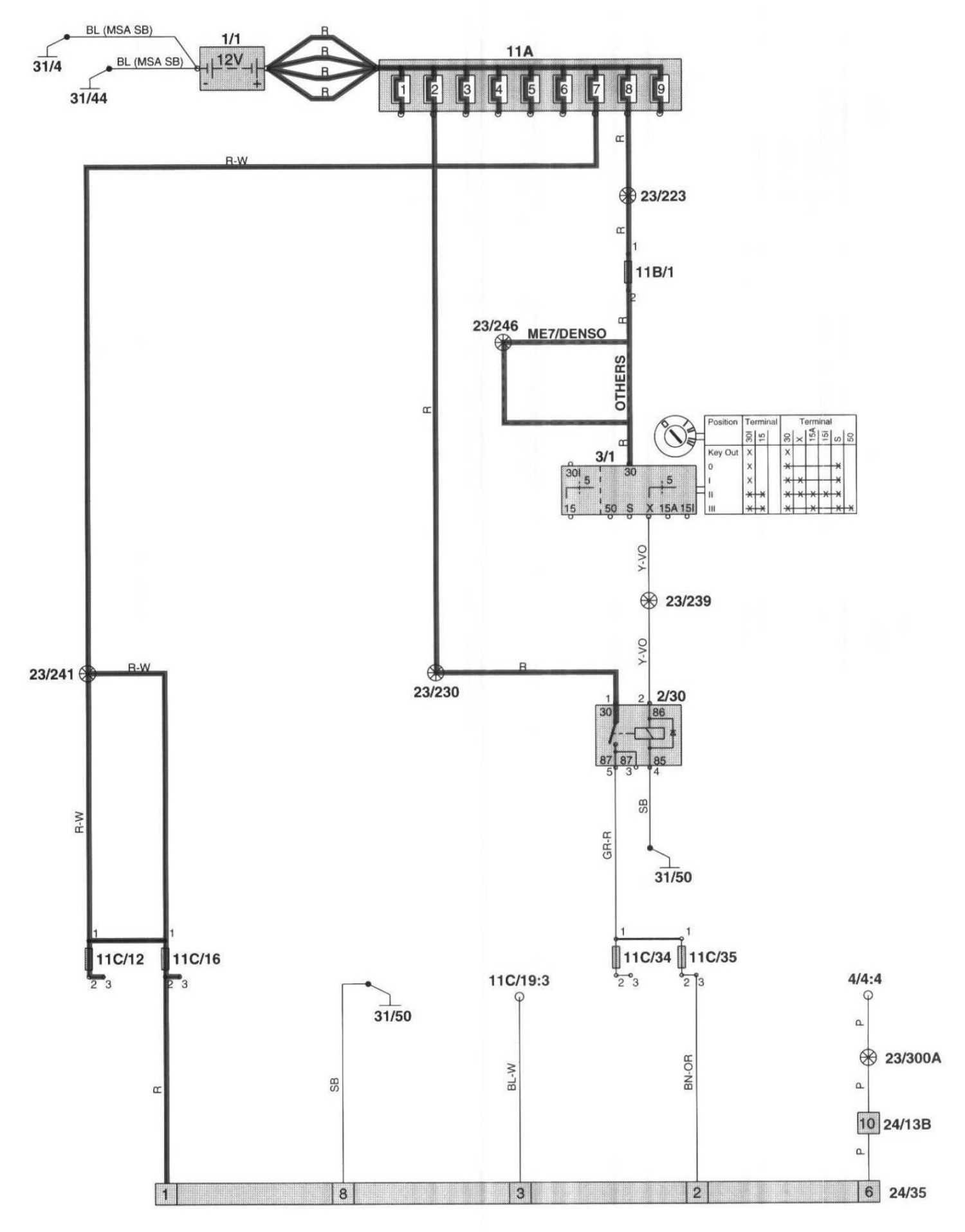

Accessories Wiring - Wiring Diagram:

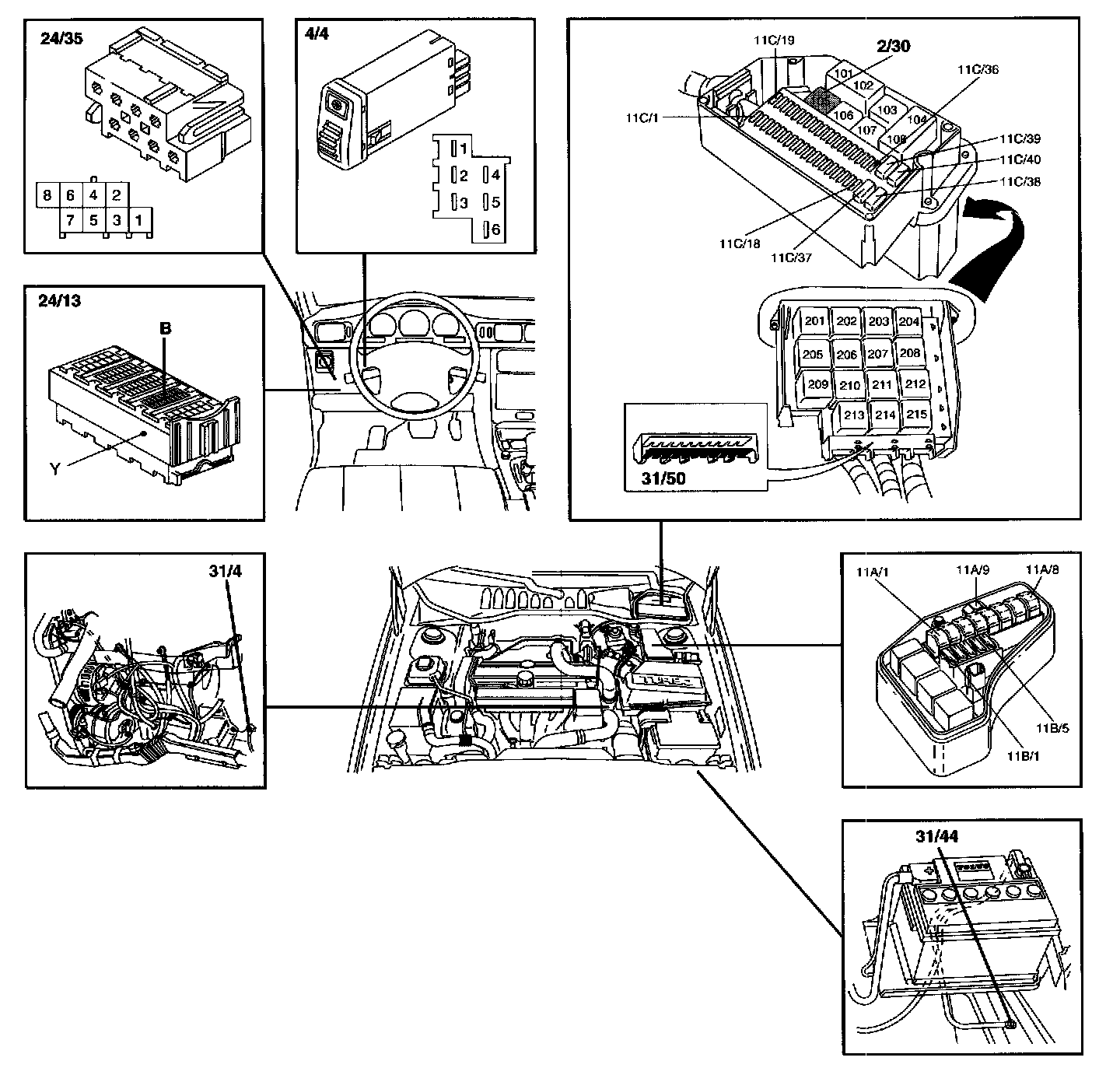

Accessories Wiring - Component Location:

To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
