Navigation System

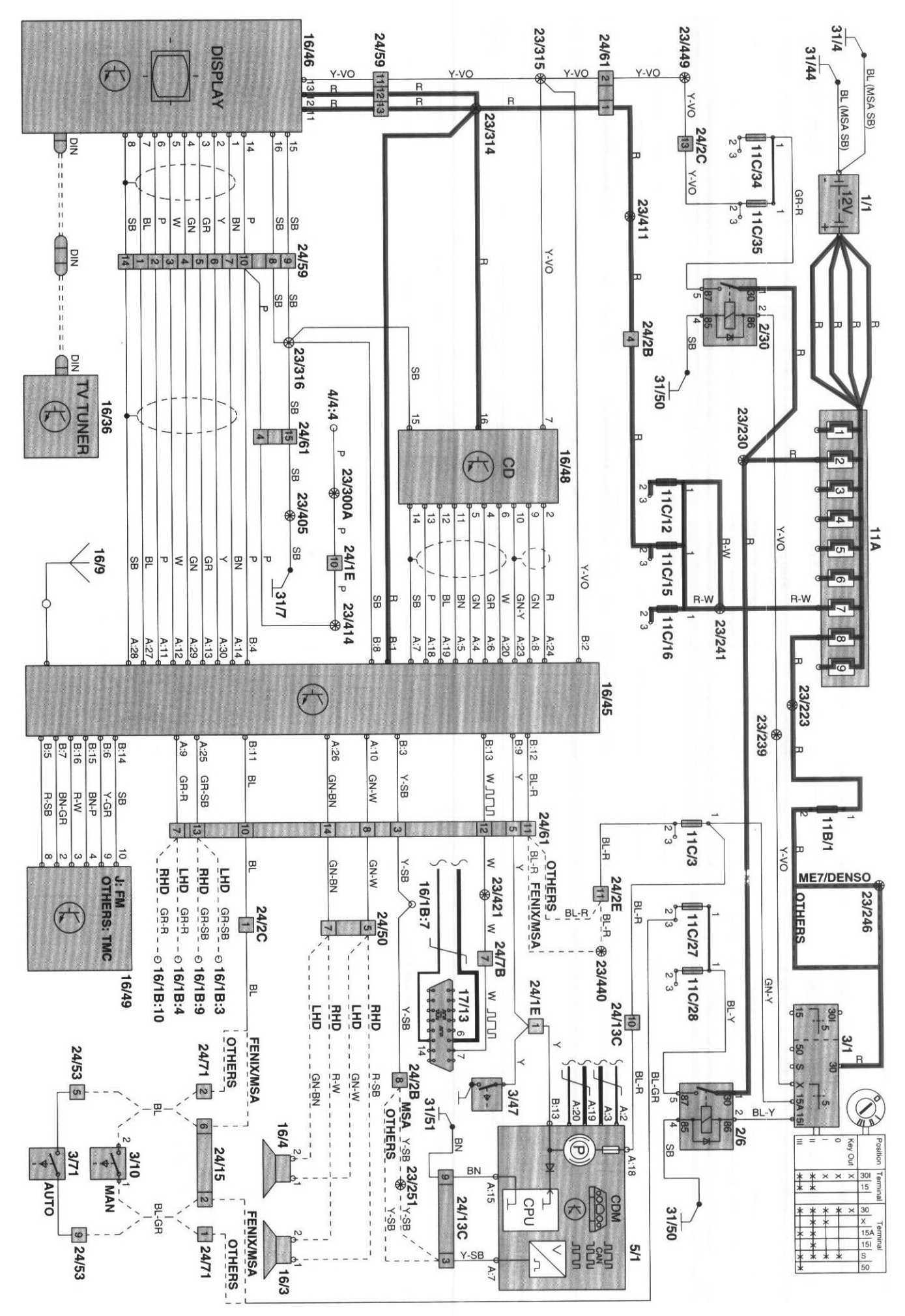

RTI Road Traffic Information S70, V70 - Wiring Dia.:






RTI Road Traffic Information S70,V70 - Component Loc.:





To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
