Garage Door Opener Transmitter

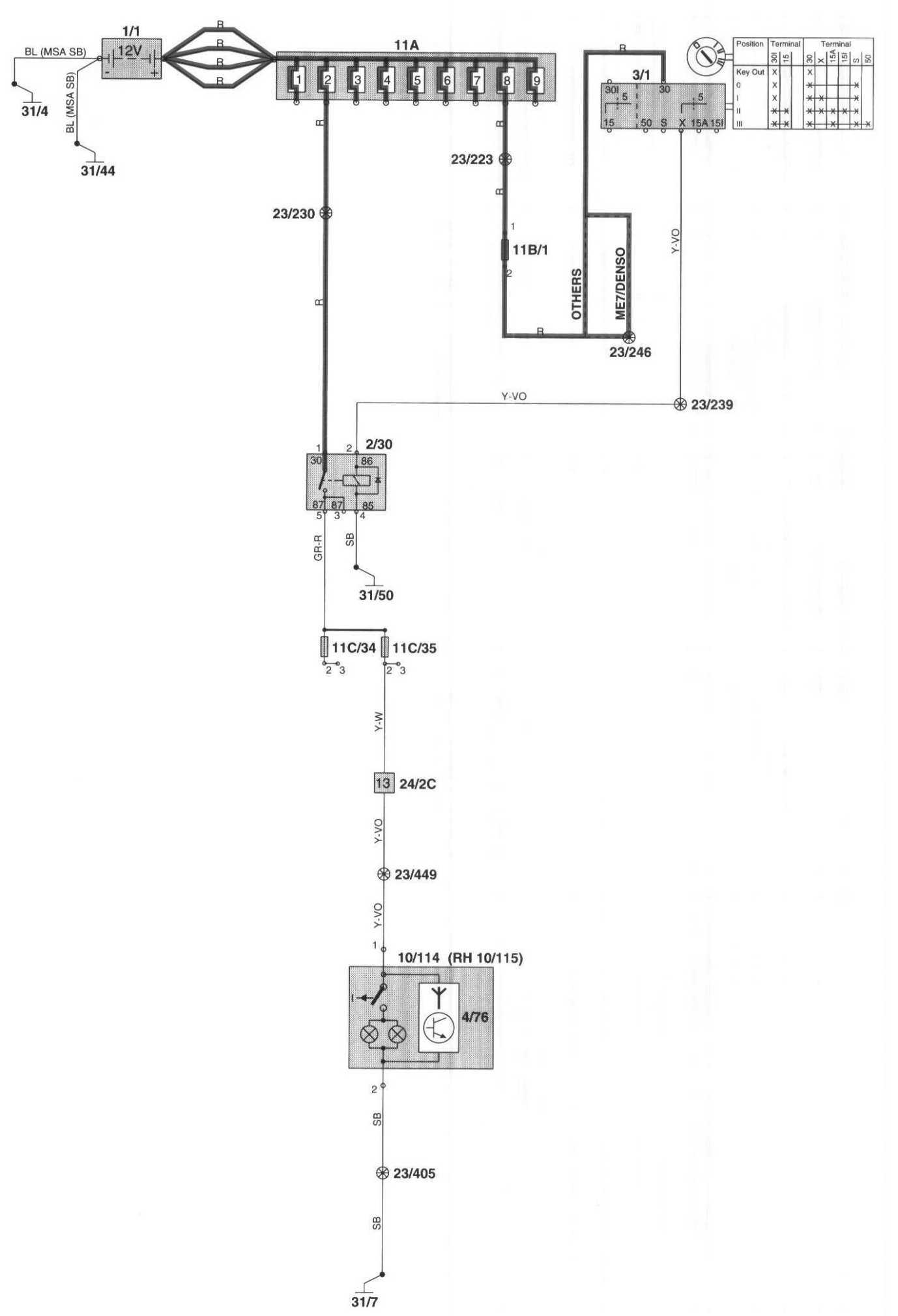

Remote Controlled Garage Door Opener - Wiring Diagram:

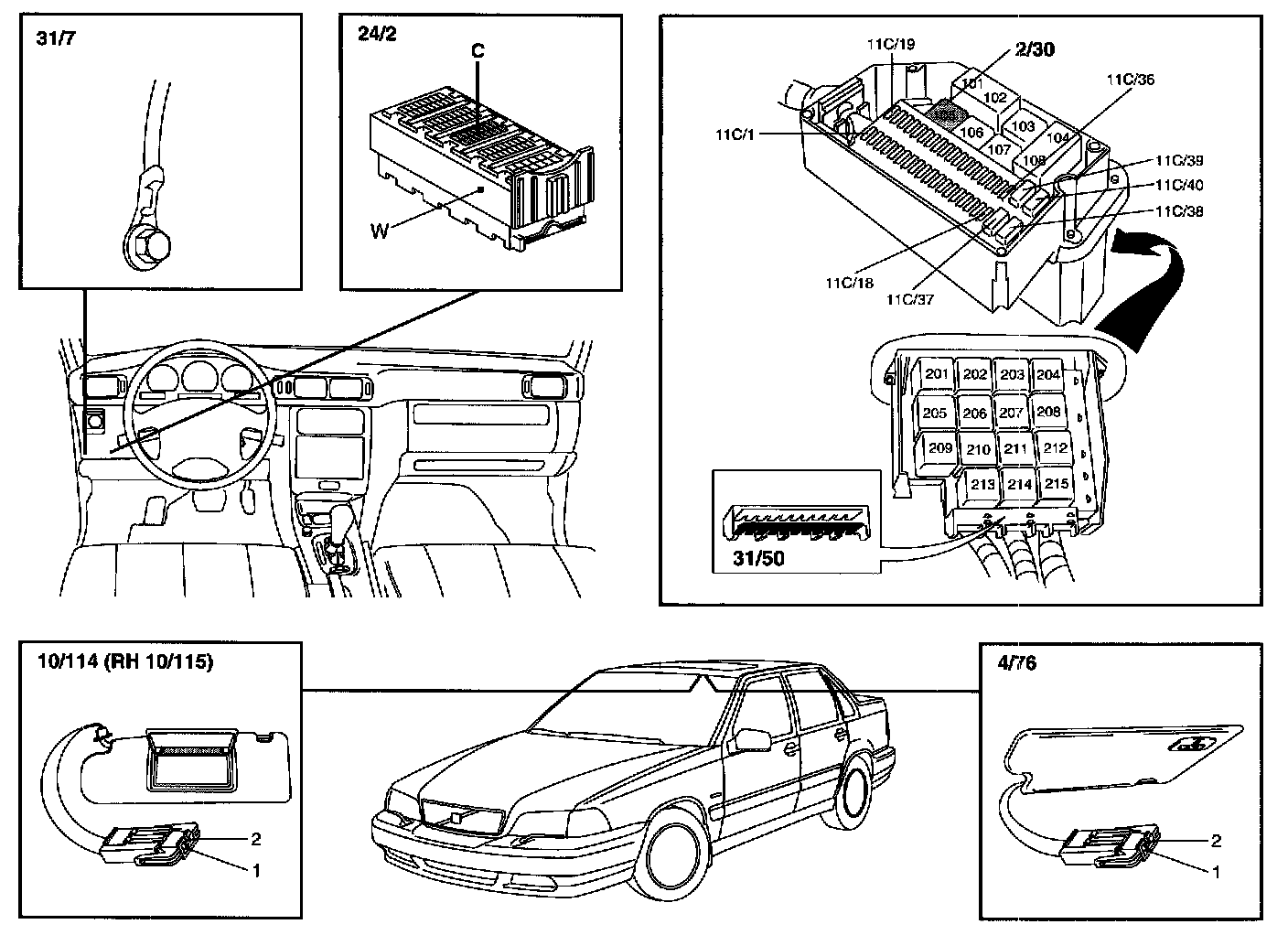

Remote Controlled Garage Door Opener - Component Loc.:

To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
