S70 AWD L5-2.4L Turbo VIN 56 B5254T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Early
Early

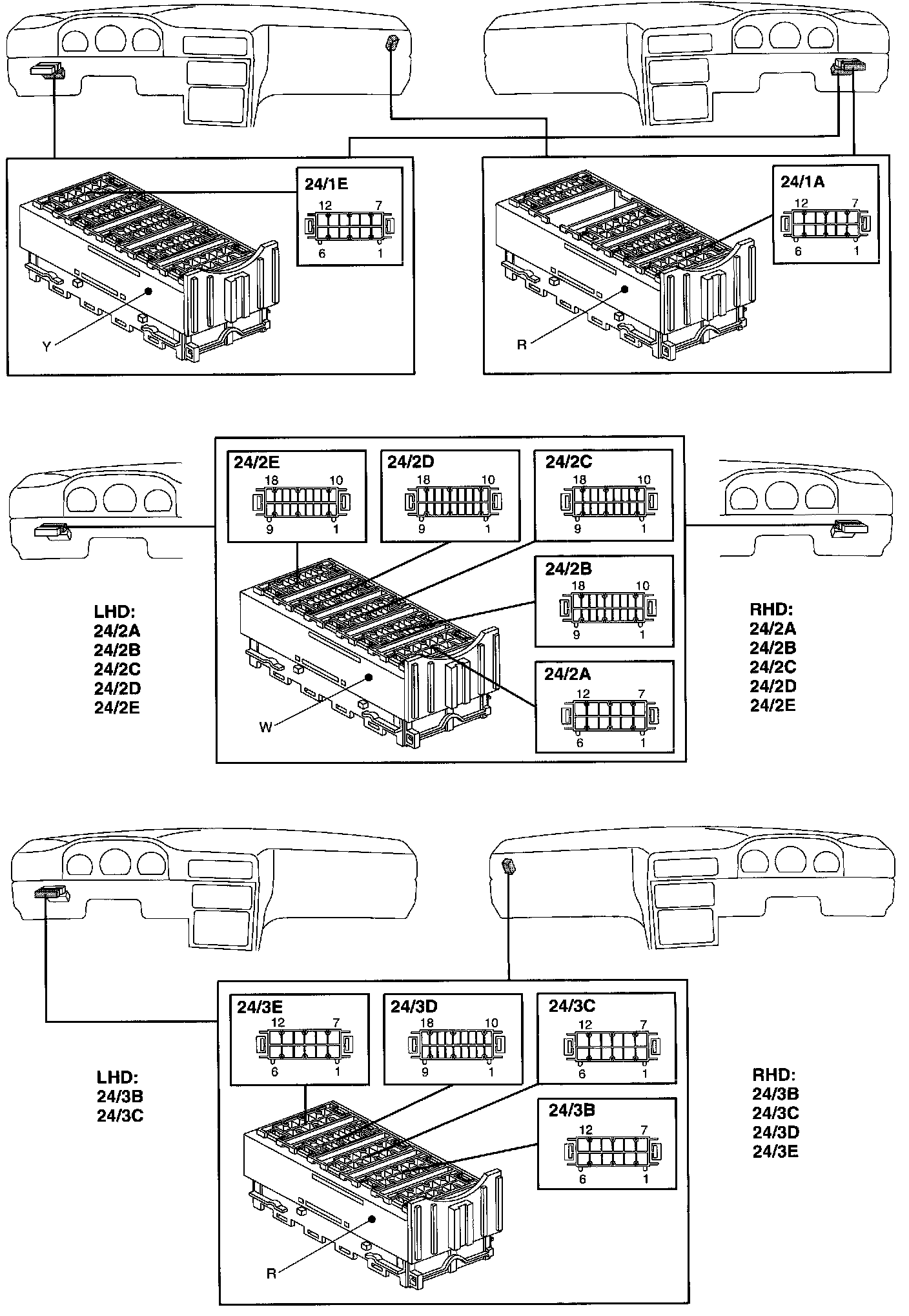

Connectors 24/1E - 24/3E:

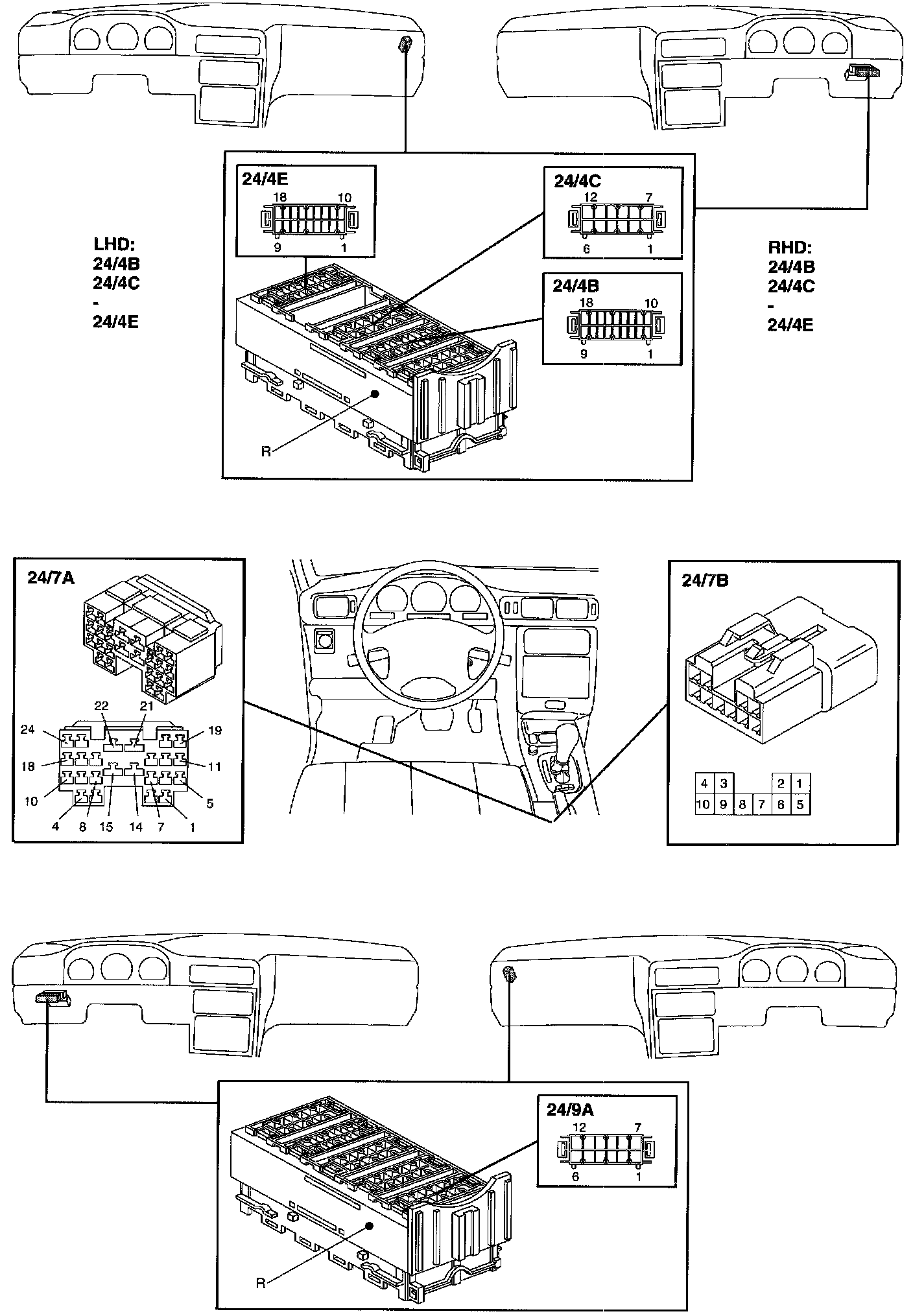

Connectors 24/4B - 24/9A:

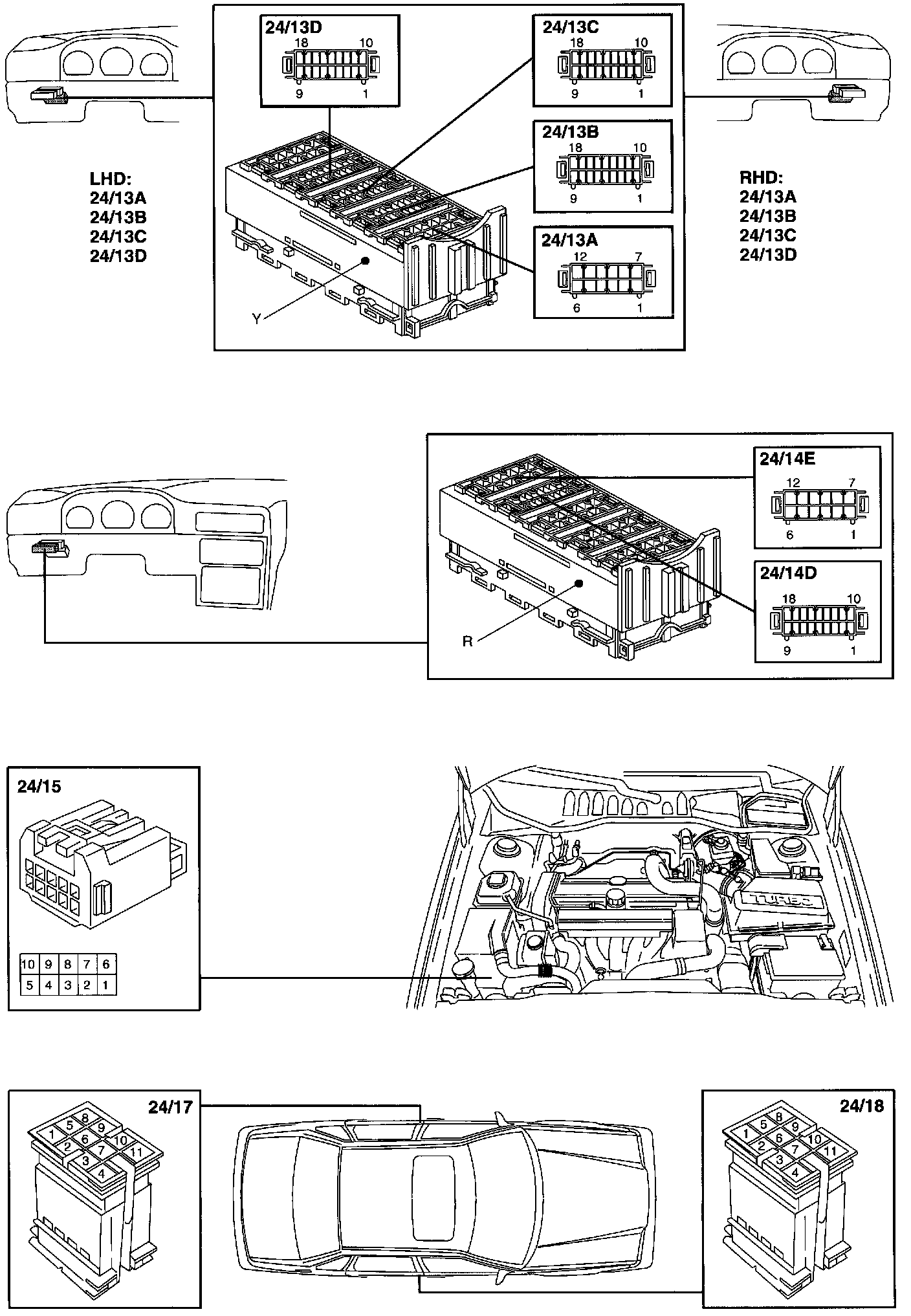

Connectors 24/13A - 24/18:

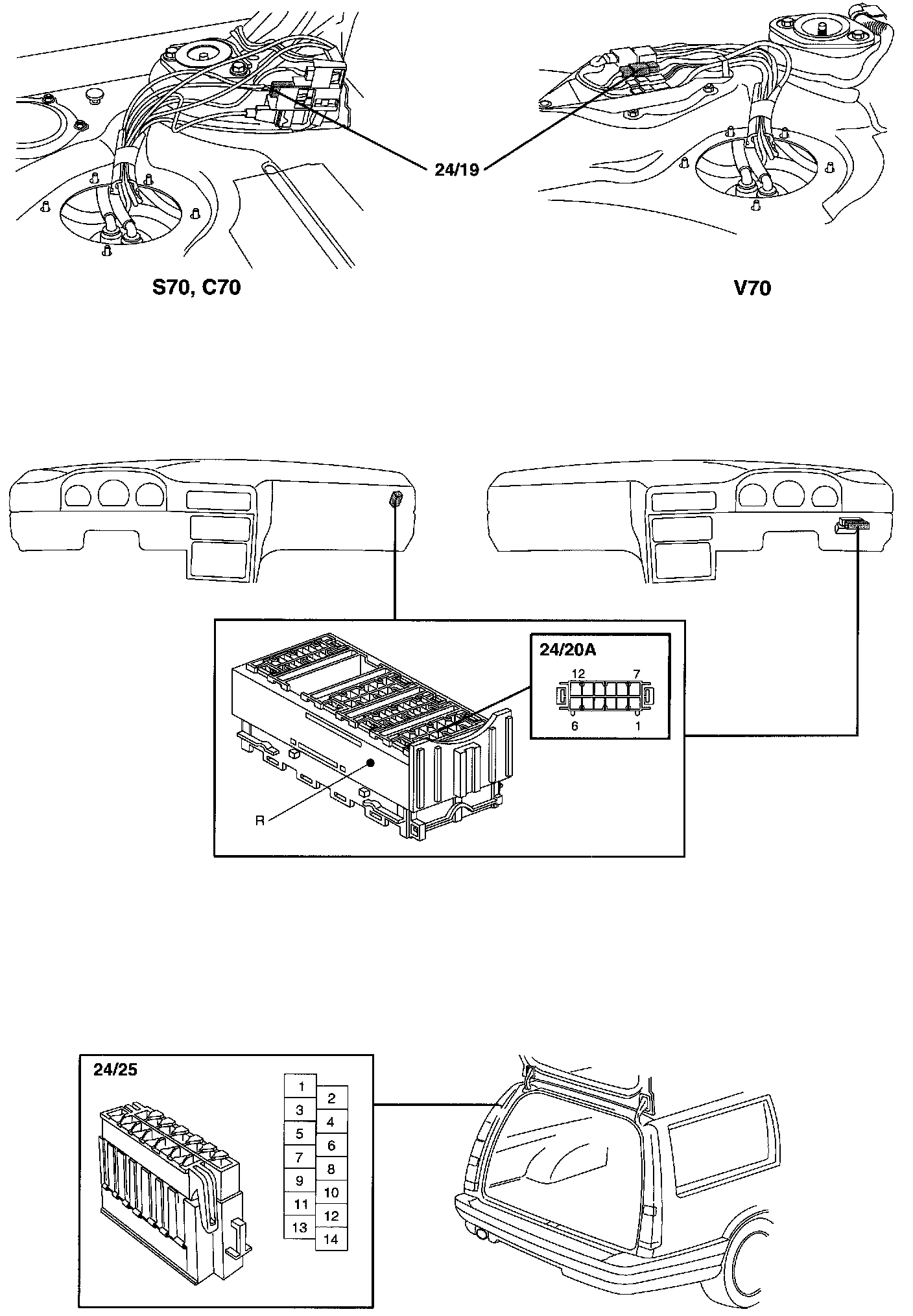

Connectors 24/19 - 24/25:

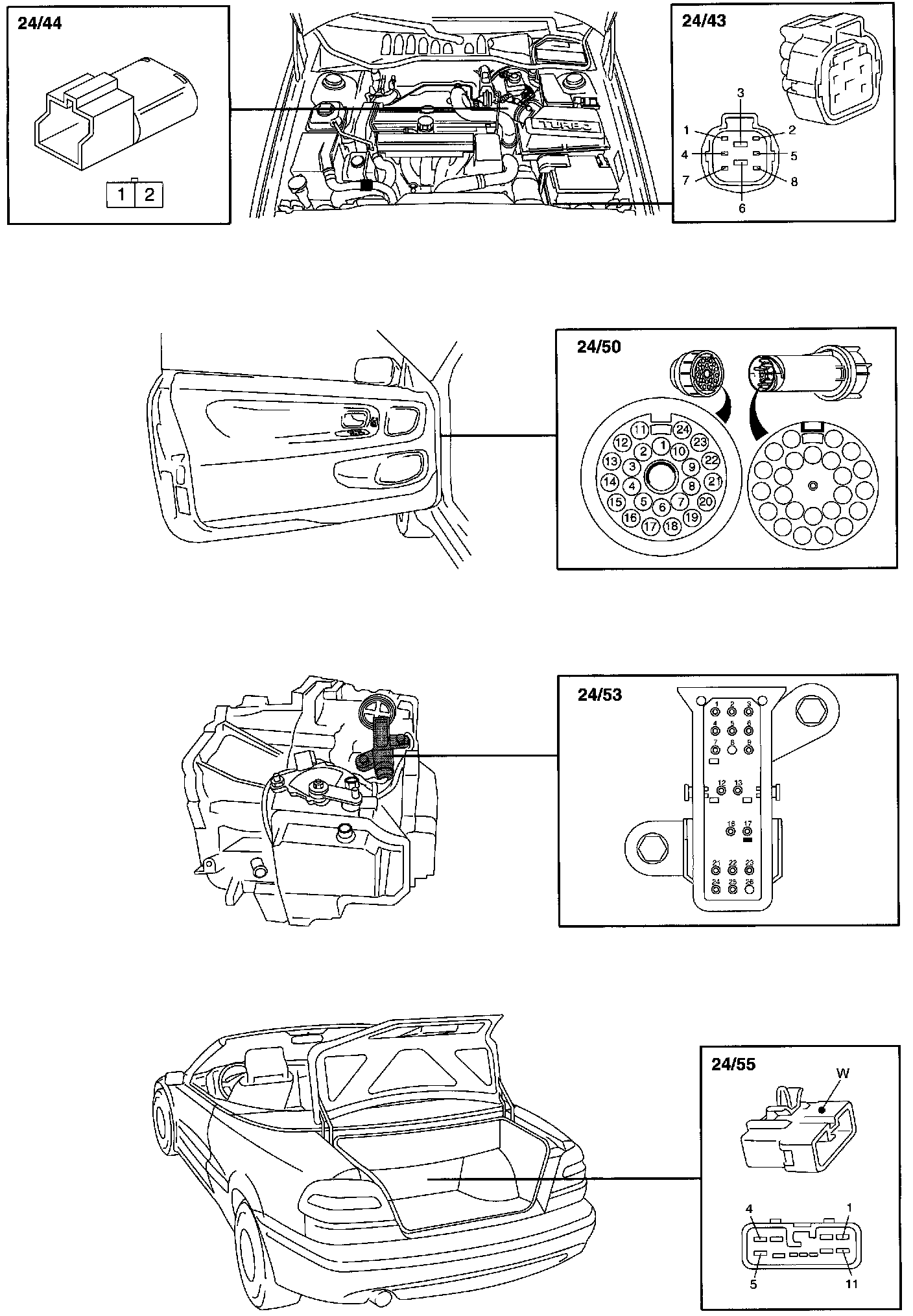

Connectors 24/44 - 24/55:

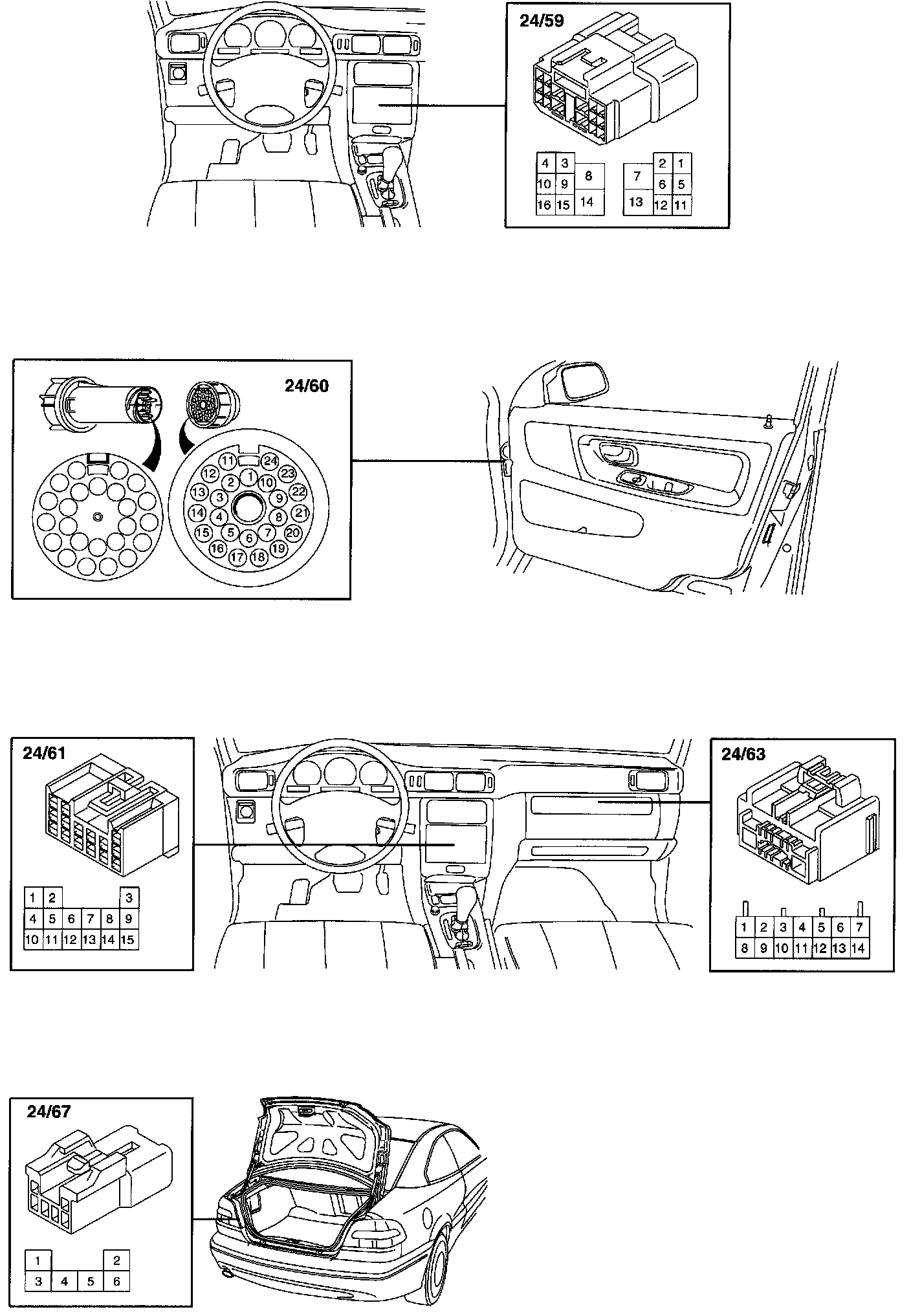

Connectors 24/59 - 24/67:

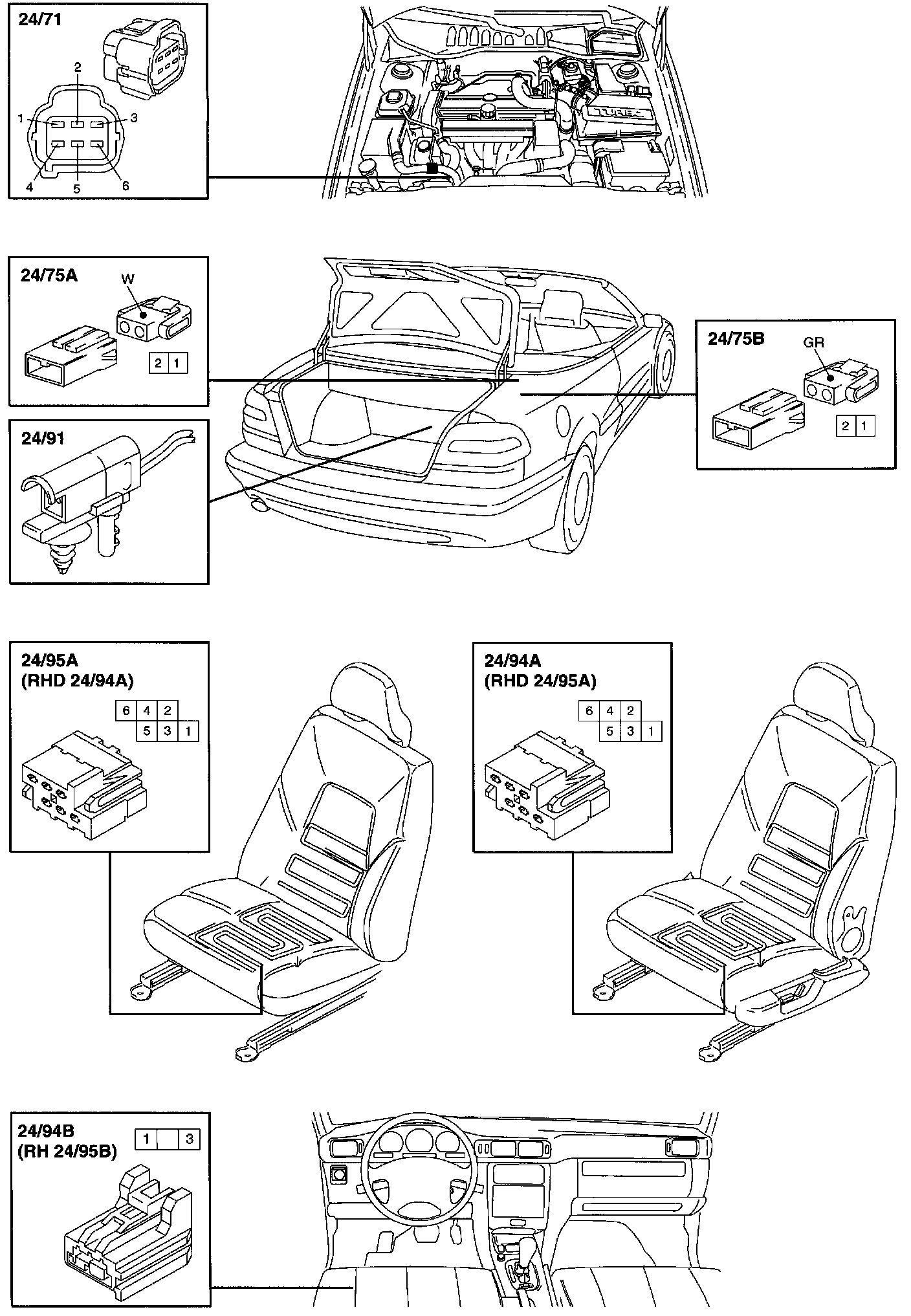

Connectors 24/71 - 24/95A:
