Signal Missing - Permanent Fault

ECM-4010 EVAP CANISTER SHUT-OFF VALVE
SIGNAL MISSING - PERMANENT FAULT

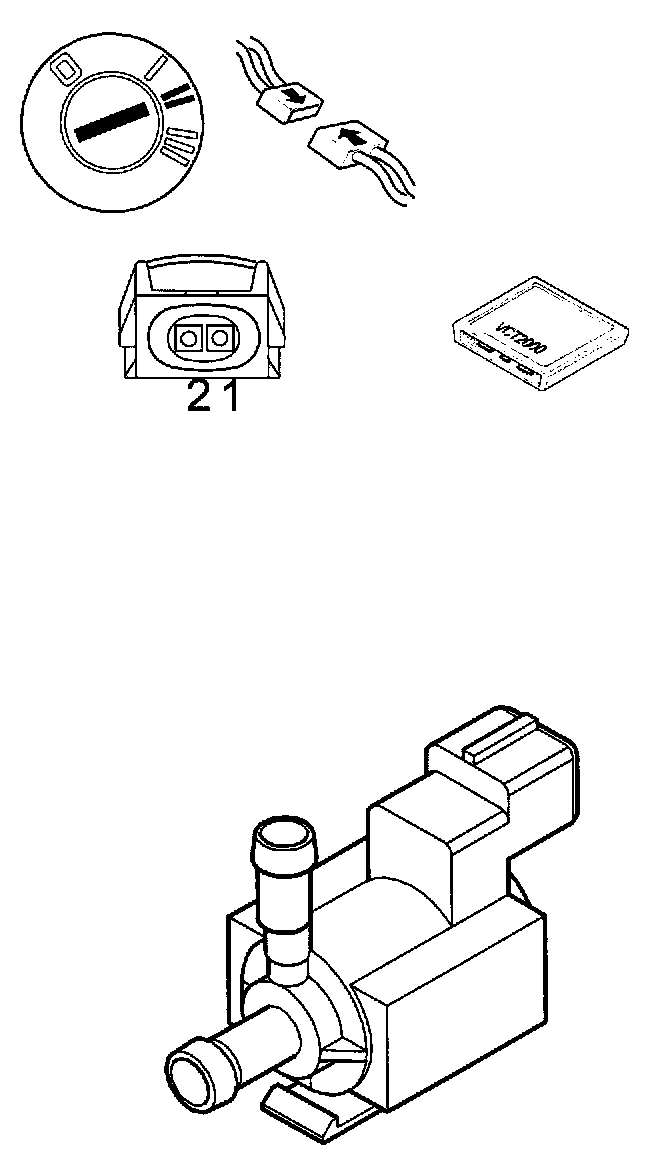

Checking connector



- Ignition off
- Check EVAP canister shut-off valve connector for contact resistance and oxidation
- Reinstall components, reconnect connectors etc.
- Ignition on.
- Activate EVAP canister shut-off valve.

A "click" should be heard when the EVAP canister shut-off valve is activated.
If the EVAP canister shut-off valve is now OK this indicates that the fault was caused by poor contact in the connector.

Other information
- To access/replace the EVAP canister shut-off valve, EVAP Canister Shut-Off Valve, Replacing
- For information about signals, see Diagnostic Parameters and Pinout Values. Signal Description, ME7, B5XX4T

Is the EVAP canister shut-off valve working?
Yes - Testing Complete.
No - Continue below.


Checking wiring and components

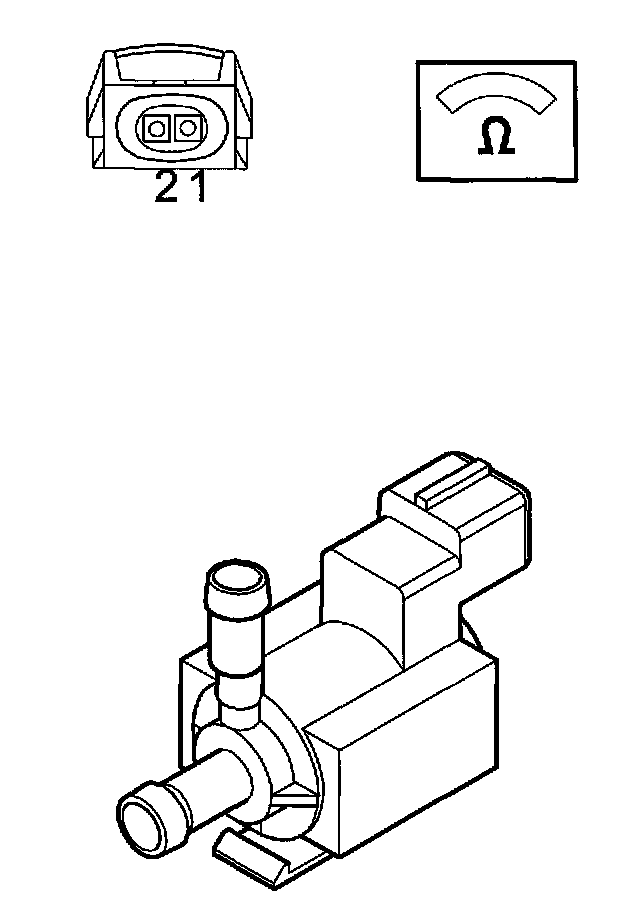

Check EVAP canister shut-off valve resistance.

Check signal cable between control module # B40 (# B50) and EVAP canister shut-off valve terminal 2 and power supply between system relay terminal 3 and EVAP canister shut-off valve terminal 1 for an open-circuit according to [1][2]Checking Wiring and Terminals. Permanent Fault

Remedy as necessary.

Other information
- Connecting the breakout box/accessing the control module Connecting the Breakout Box (ECM)
- To access/replace the EVAP canister shut-off valve, EVAP Canister Shut-Off Valve, Replacing
- For resistance values, see Component Specifications. Specifications
- For information about signals, see Diagnostic Parameters and Pinout Values. Signal Description, ME7, B5XX4T


Verification



Hint: After carrying out the repair, check that the fault has been remedied.

- Ignition off.
- Reconnect connectors, reinstall components.
- Ignition on.
- Activate EVAP canister shut-off valve.

A "click" should be heard when the EVAP canister shut-off valve is activated.

Is the EVAP canister shut-off valve working?
Yes - Testing Complete.
No - Continue below.


Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed. Exit fault tracing for this diagnostic trouble code (DTC) or make another attempt.
