Windows: Testing and Inspection

Water leak test

Before test




Close the convertible top as per illustration so that no water can come into the passenger compartment.

Water test

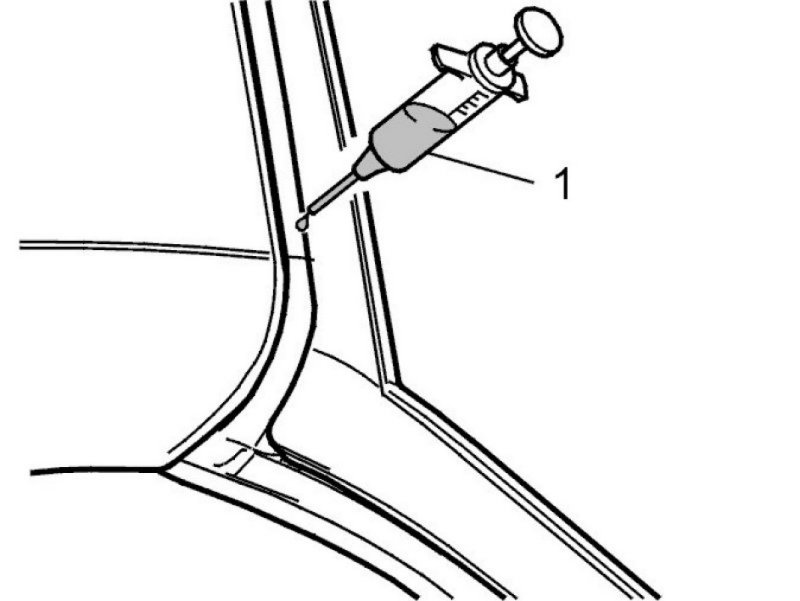

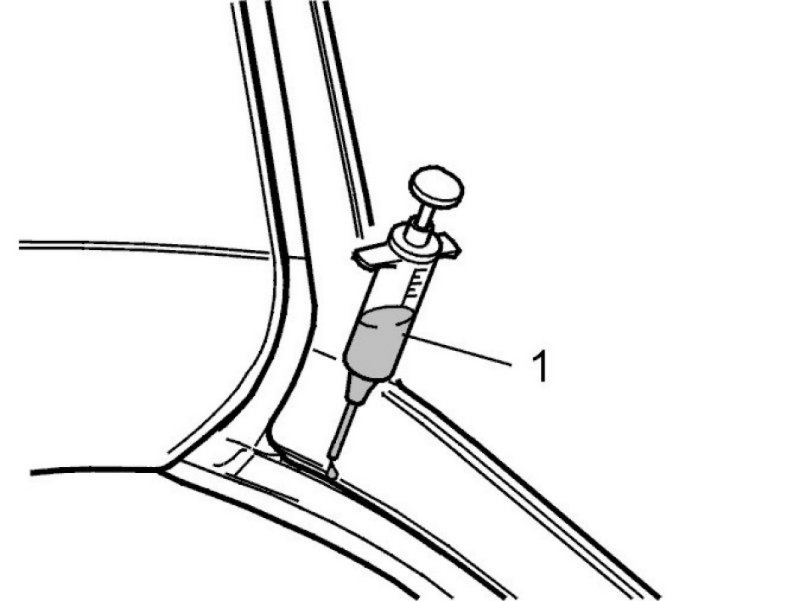

Squirt water gently from a distance of approximately 25mm (1") onto the area that has been sealed off.





Continue along the A-post.

Verify

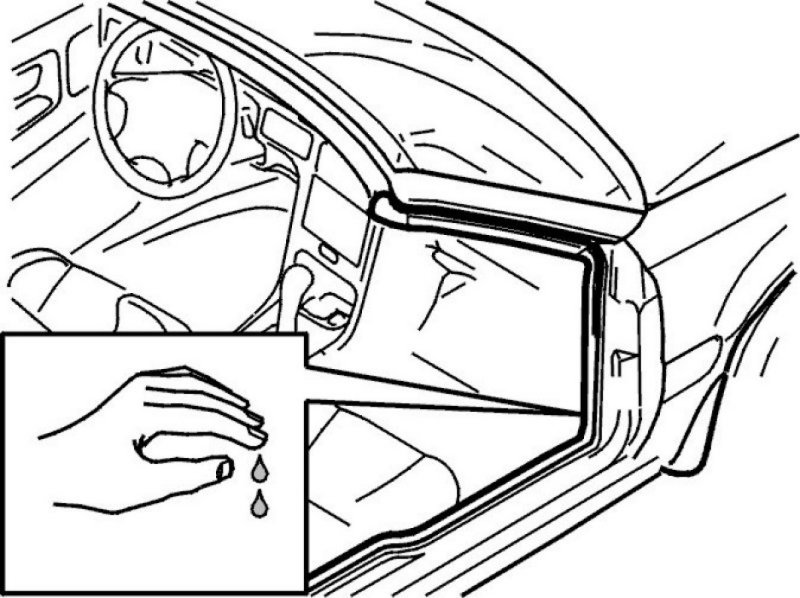

Verify that no water is present at the inside of the primary seal all along the A-post from top to floor.
