Manual Gear Change, Checking

Manual gear change, checking

Disconnecting the control module





Note! The ignition must be switched off

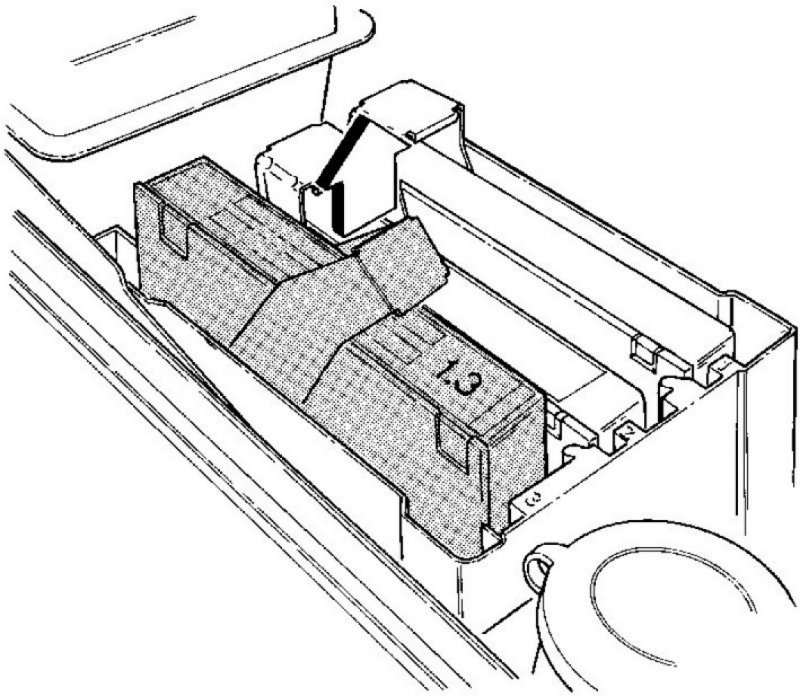

Remove the Transmission Control Module (TCM) from the control module box (compartment no. 3)

Check
Drive the car and check that the transmission changes in all positions.





Check:
That the car does not move in the N-position
The the parking block locks in the P-position.

Incorrect result
Replace the transmission:
- For gasoline engines, see Gearbox/torque converter, replacing .
