Control System, Replacing

Control system, replacing

Special tools:
999 5006 LIFTING BAR 999 5006 Lifting Bar
999 5033 SUPPORT 999 5033 Support
999 5460 Lifting hook 999 5460 Lifting Hook
999 5477 JOINT WEDGE 999 5477 Joint Wedge
999 5562 PROTECTIVE SOCKET 999 5562 Protective Socket
998 5972 JACK 998 5972 Jack
998 8670 DIAGNOSTIC KEY ST 998 8670 Diagnostic Key ST
951 2050 BEVEL PROTRACTOR 951 2050 Bevel Protractor

Preparations
Open the control system. See Inspecting / replacing solenoids Inspecting / Replacing Solenoids.

Removing the control system

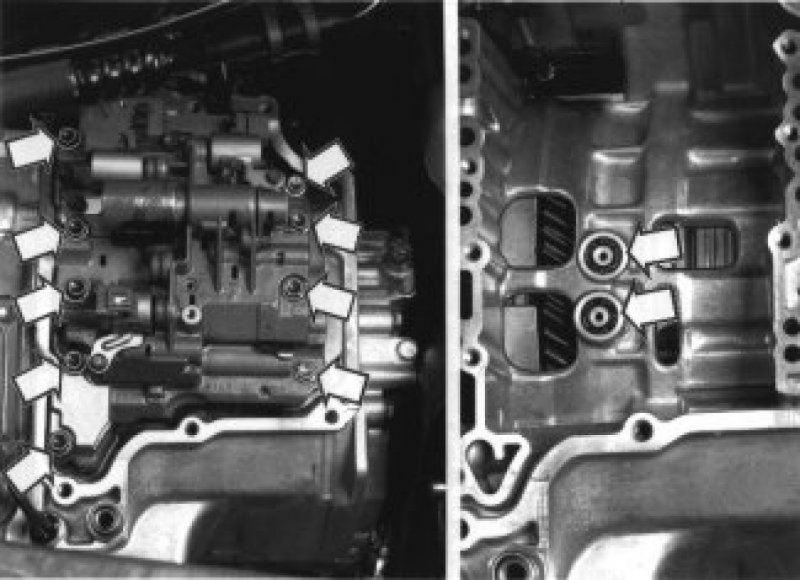

Remove the control system from the gearbox.
7 screws, and 2 for the cover.
Remove the two seals between the control system and the gearbox. See figure.

Note! Ensure that no contamination enters the gearbox.

Finishing
Install the control system. See Inspecting / replacing solenoids Inspecting / Replacing Solenoids , Inspecting / replacing solenoids Inspecting / Replacing Solenoids and Inspecting / replacing solenoids Inspecting / Replacing Solenoids.
