Pressure Sensor

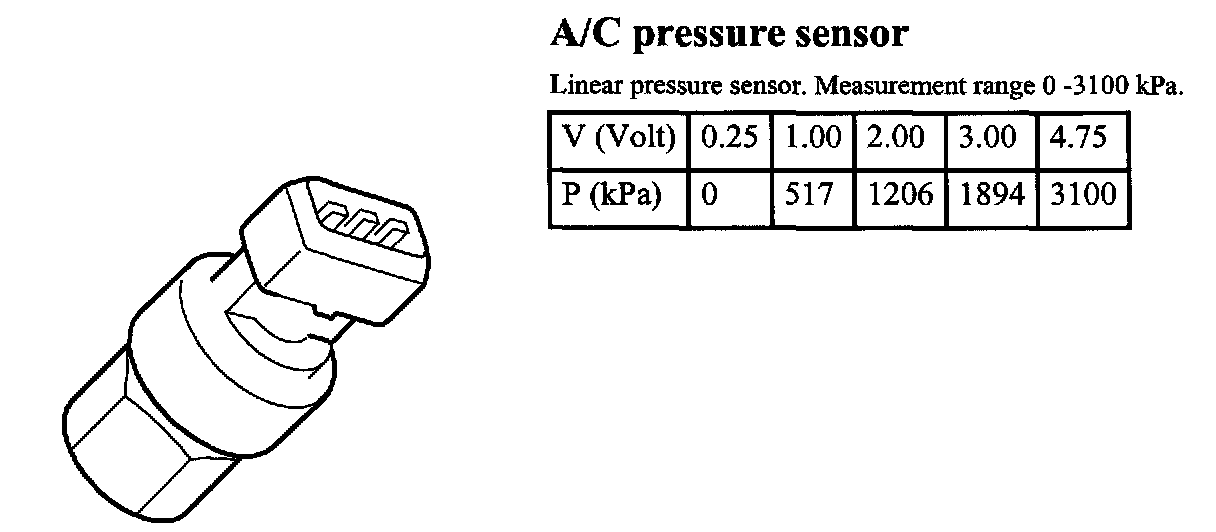

A/C Pressure Sensor:





A/C pressure sensor





Linear pressure sensor.
Measurement range 0 - 3100 kPa
