Braking Sensor/Switch: Description and Operation


Brake Pedal Sensor:

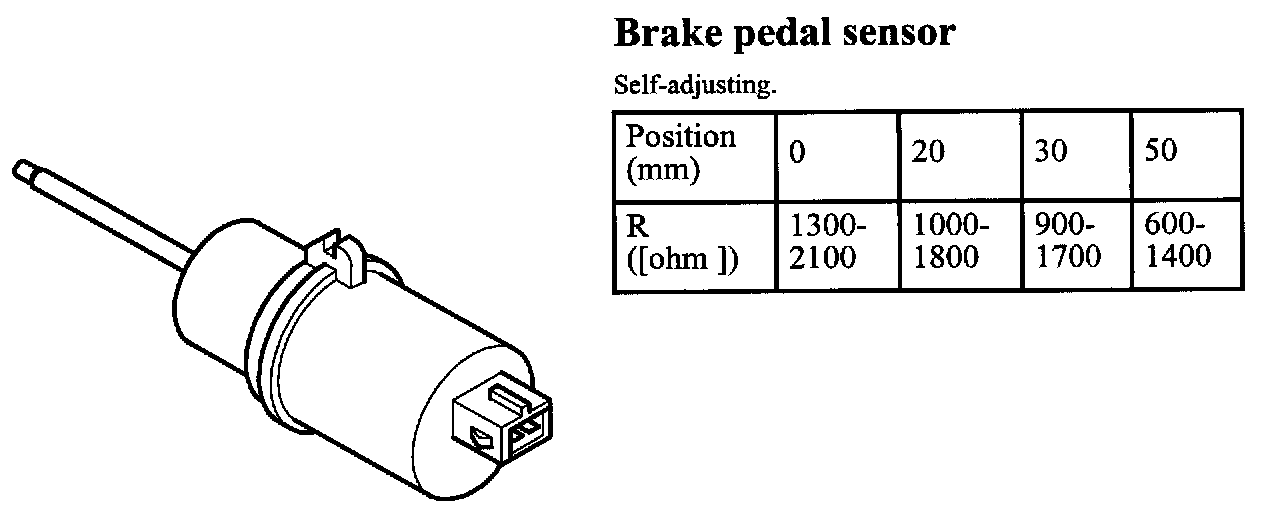

Brake pedal sensor
Self-adjusting.

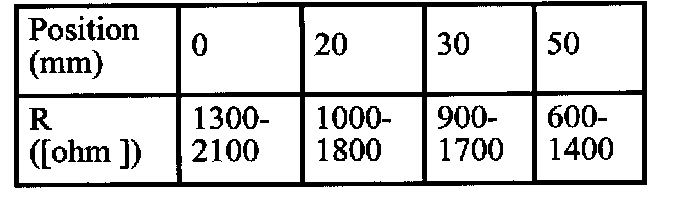

Position/Resistance Chart
