Modification Of Crankcase Ventilation With New Cylinder Head/Engine

Modification of crankcase ventilation with new cylinder head/engine

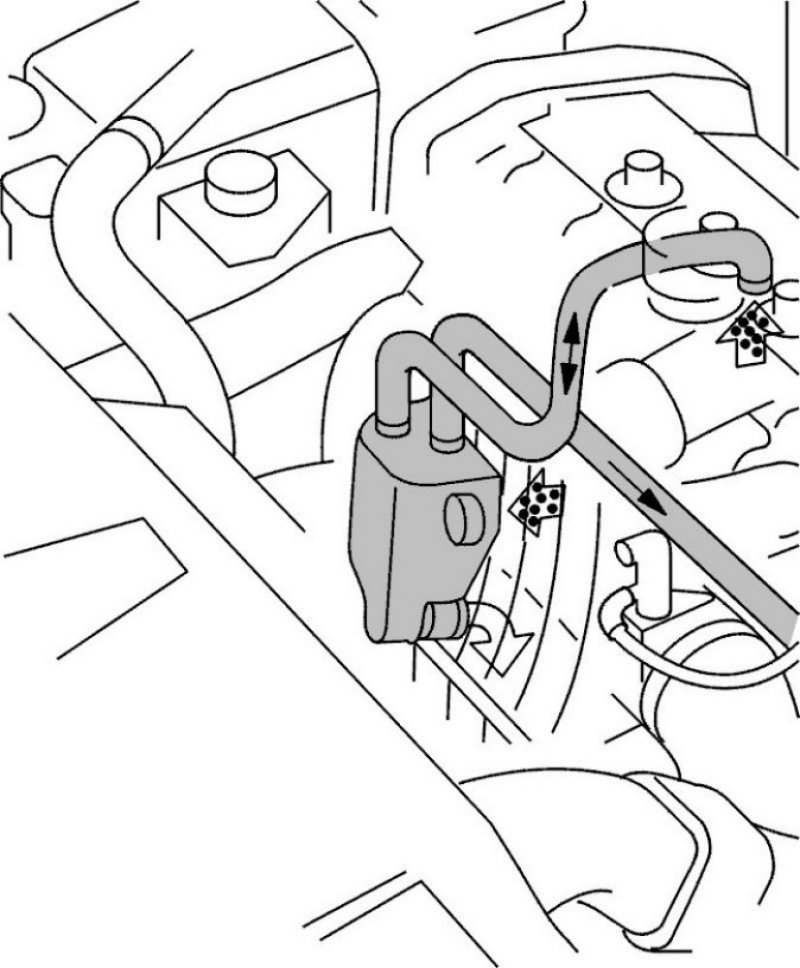

From engine number 139320 (approximately chassis number 098900) a modfied crankcase ventilation has been introduced into production. A hose was added from the oil trap to the cylinder head. Only the later type of cylinder heads and engine are available as replacement parts





Replacing cylinder head/engine
When replacing a cylinder head or engine, the crankcase ventilation must be upgraded to the later type.

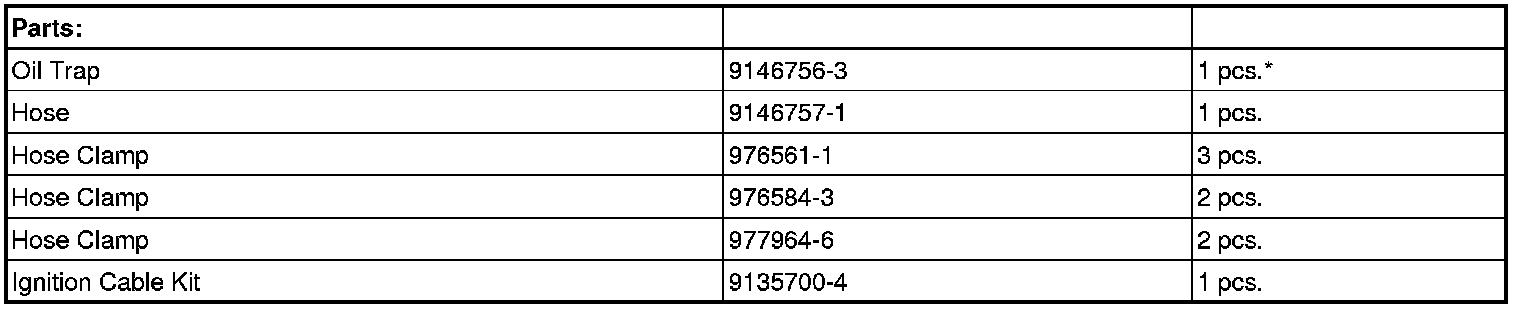

- The later type of oil trap has to be installed when replacing a cylinder head.
- A hose has to be installed from the oil trap to the cylinder head.
- A new ignition cable kit with a longer cable must be installed





* not necessary for engine replacement.
