Home >> Volvo >> 1999 >> C70 L5-2.4L Turbo VIN 56 B5254T >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Diagrams >> Electrical Diagrams

Electrical Diagrams

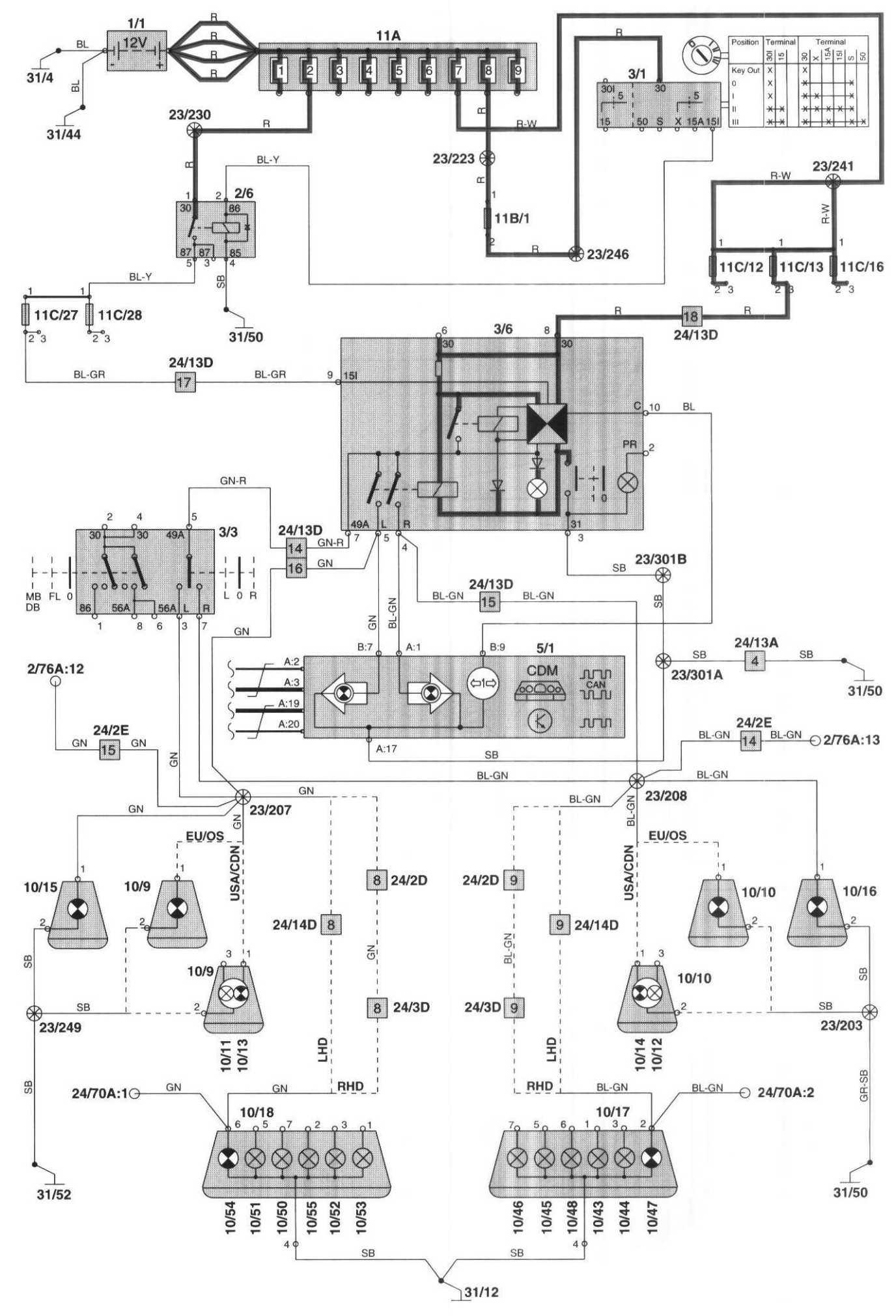

Turn Signal Lamps C70 - Wiring Diagrams:

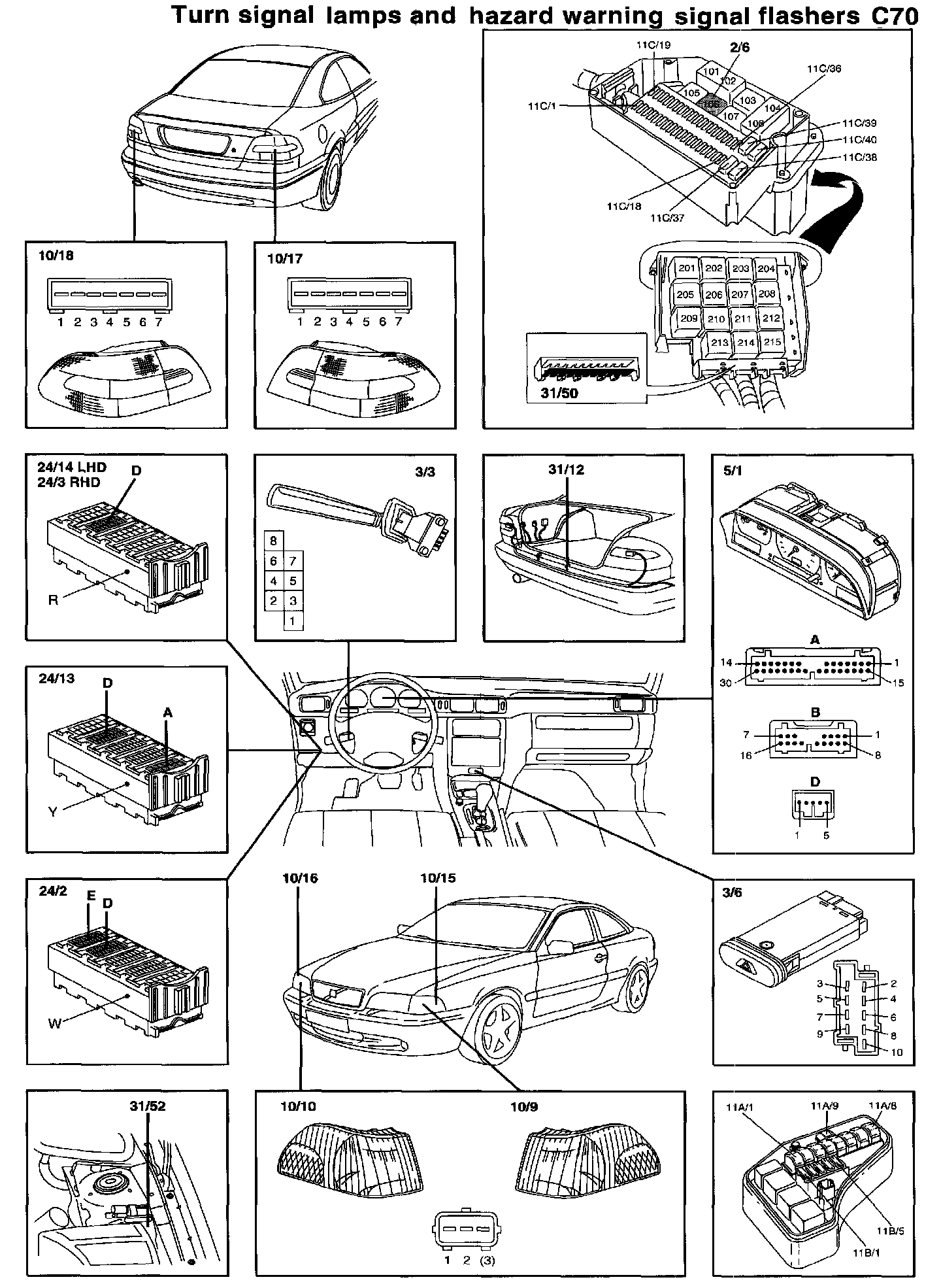

Turn Signal Lamps C70 - Component Location:





To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
