Signal Specification, Parking Heater 091 B/D

Signal specification, Parking heater 091 B/D

General

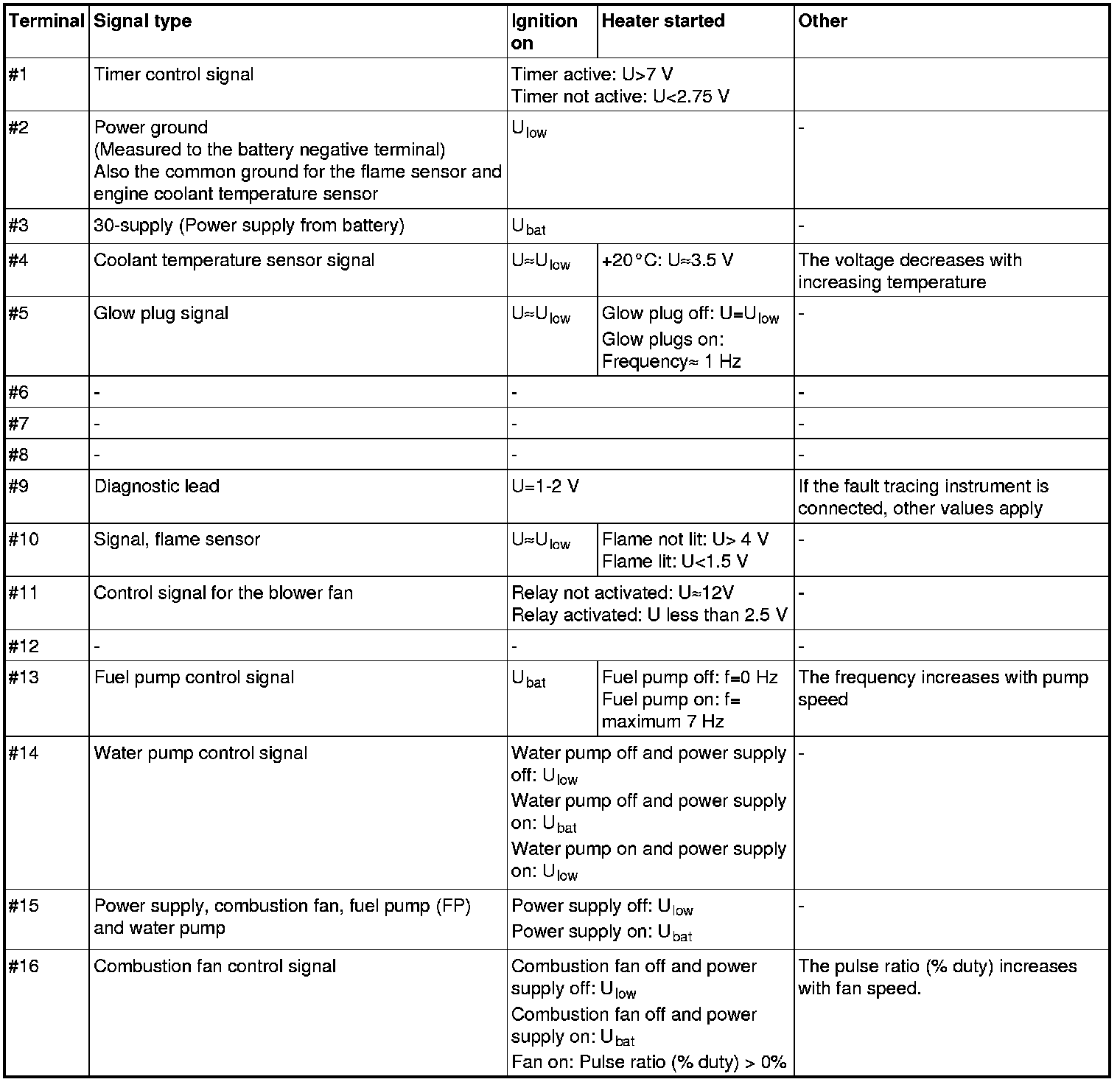

All values given below are between the respective terminal in column 1 and terminal #2 (power ground) unless otherwise stated in brackets after the entry.
