Radio/Stereo

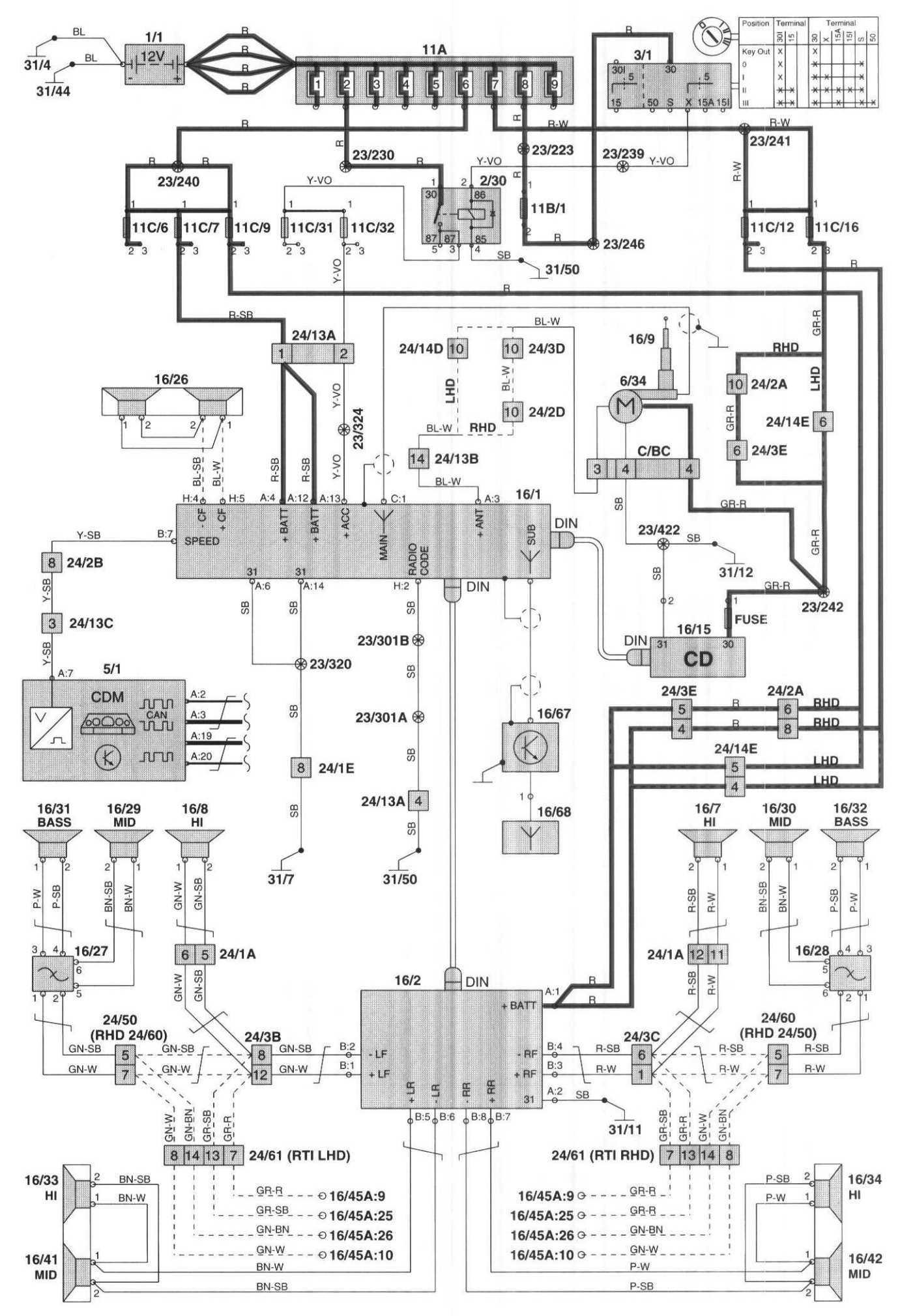

Radio C70 Coupe - Wiring Diagram:

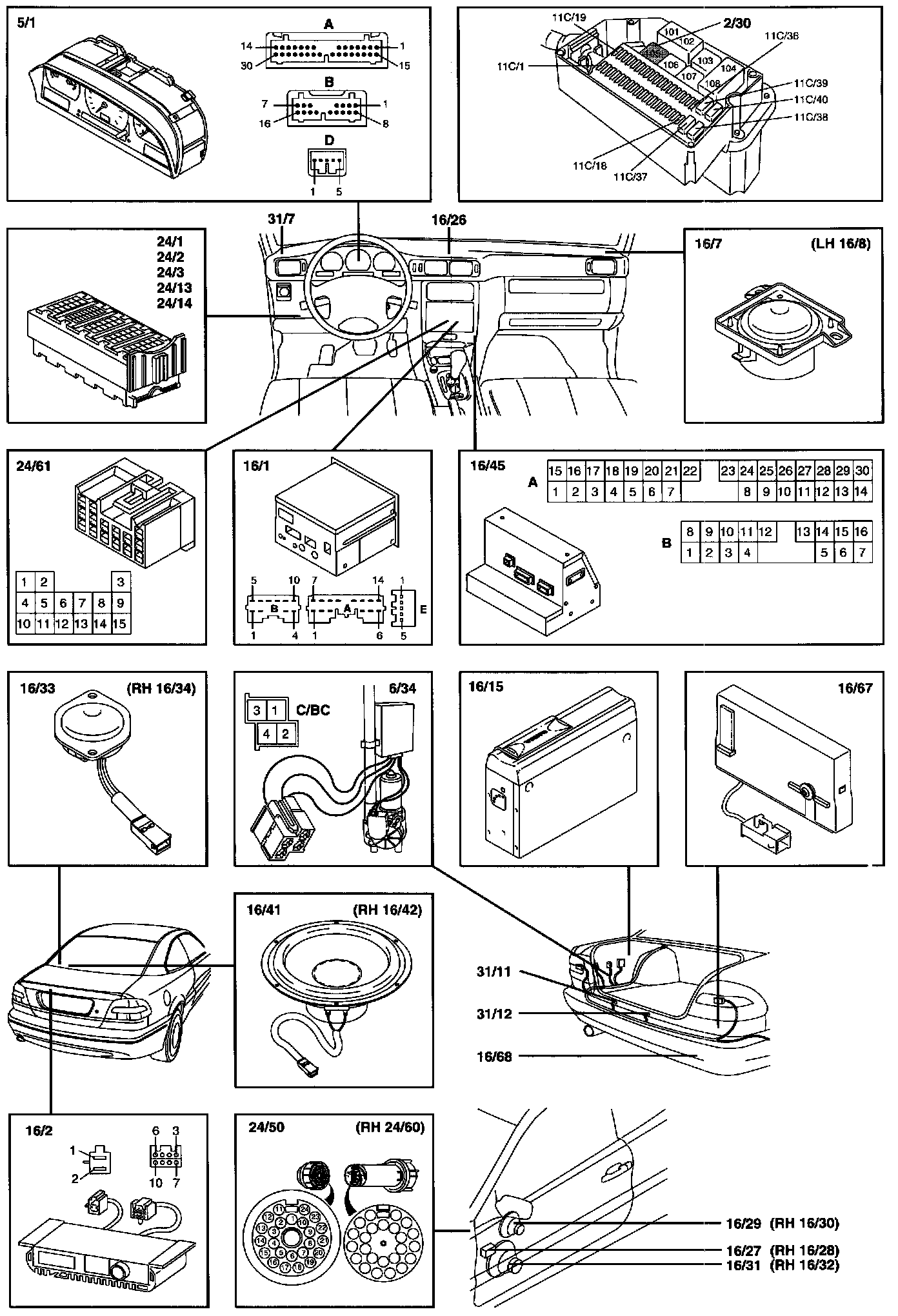

Radio C70 Coupe - Component Location:

To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
