Fuel Line/Blower Fan Motor, Replacing (Cleaning)

Fuel line/blower fan motor, replacing (cleaning)

Removal





Remove:
- The combustion unit, see Replacing the combustion unit Service and Repair
- Combustion chamber, see Fuel injection nozzle/combustion chamber, replacing Fuel Injection Nozzle/Combustion Chamber, Replacing
- Fuel injection nozzle, see Fuel injection nozzle/combustion chamber, replacing Fuel Injection Nozzle/Combustion Chamber, Replacing

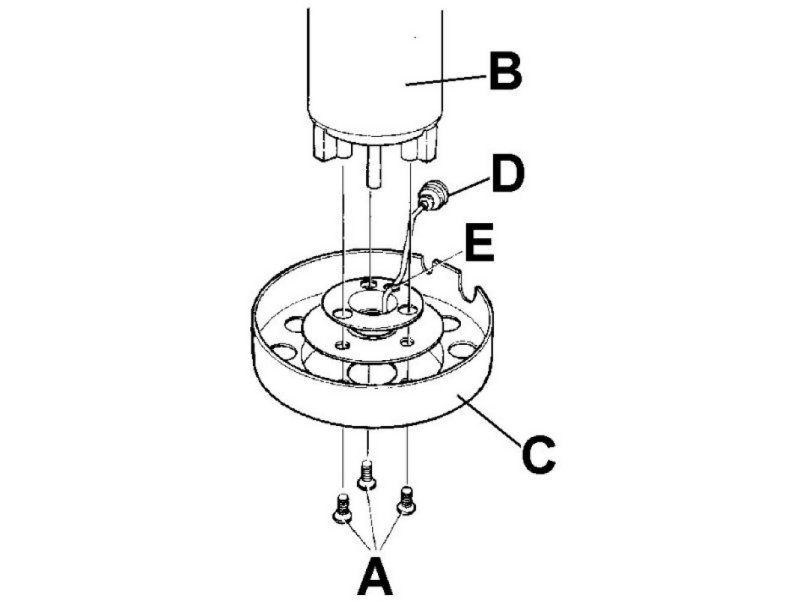

- Remove the three screws (A) securing the blower fan motor (B) at the engine mounting (C).

Installation

- Assemble in reverse order.

Cleaning the fuel line
- Remove the fuel line from the sleeve by easing off the tabs (E) holding the line. If the outlet of the line is blocked, clean mechanically or chemically
- Blow the line clean.
Replace the line if cleaning has not helped.
