Exhaust System

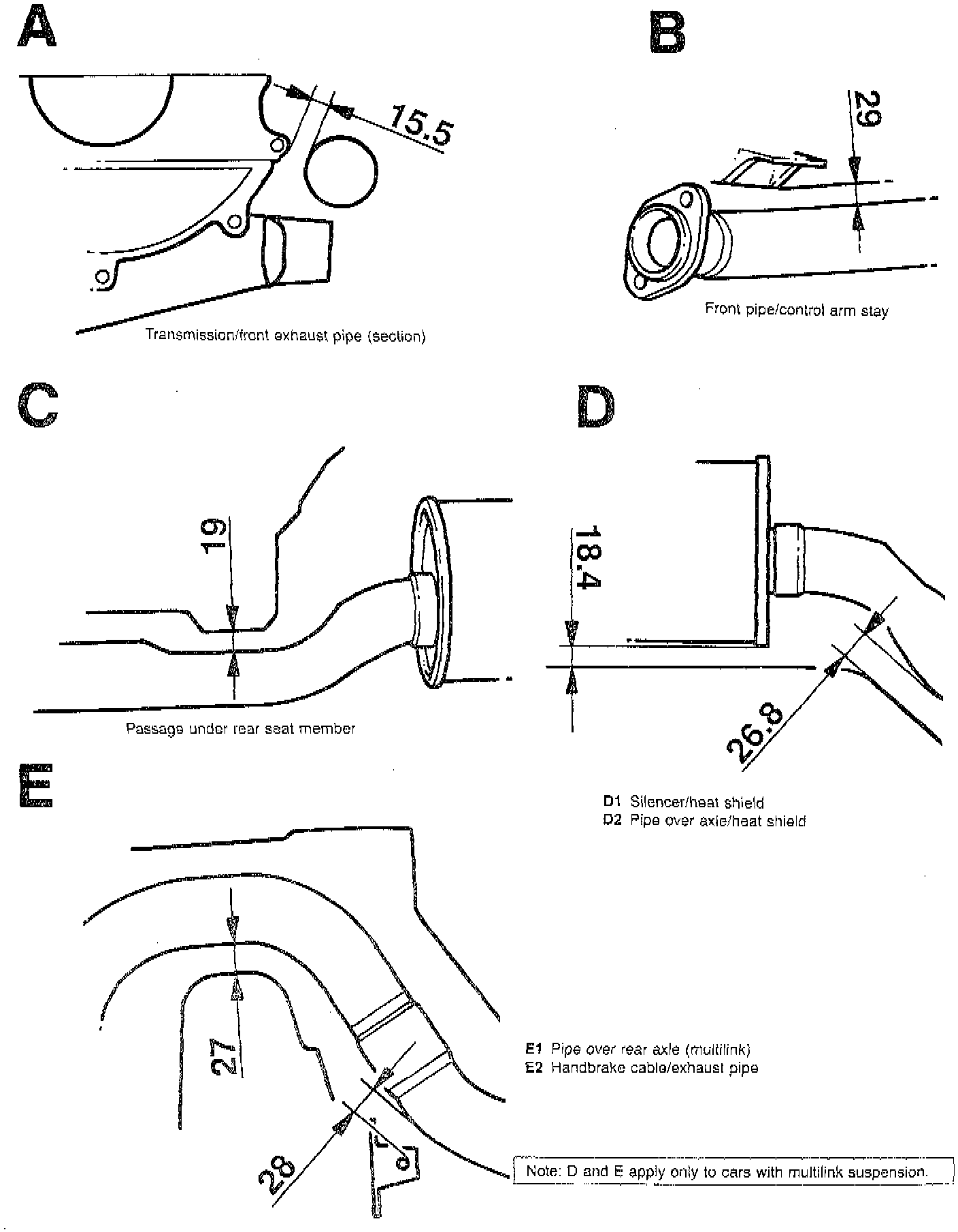

EXHAUST SYSTEM - CLEARANCES IN MM





Check clearances as shown in the illustration.
