Throttle Position Sensor: Locations

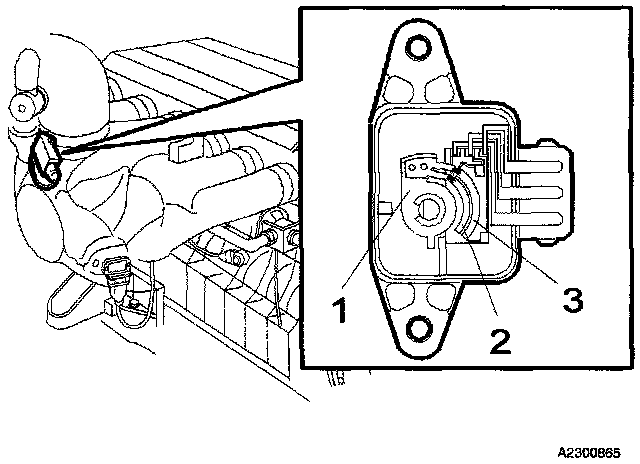

The throttle position sensor is mounted on the throttle body (TB).
