ECC Control Panel Removal

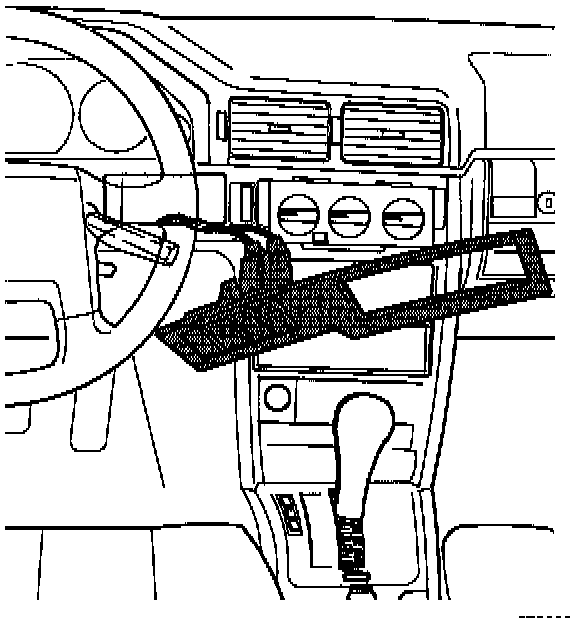

Remove decorative trim around ECC control module.
Pry off carefully with small screwdriver. Allow trim to remain hanging on wiring.

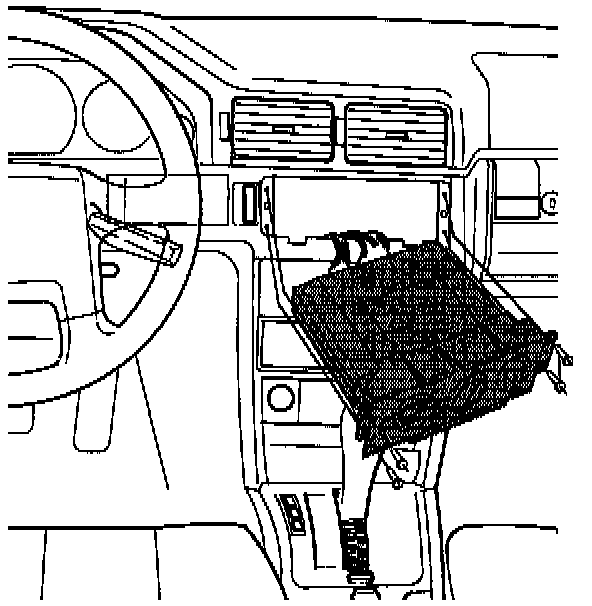

Remove 4 screws (TX10).
Withdraw ECC control module and detach wiring.
