ACC

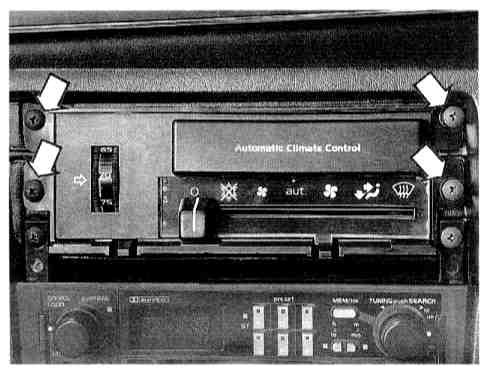

ACC climate unit control panel, replacement

Note: Control panel may differ from that shown, but replacement procedure remains the same.


Removal




Remove:
- trim panel around control panel
- control panel from dashboard.

Remove:
- vacuum connections
- light.

Undo connector.


Installation

Remake all connections.

Install:
- control panel
- trim panel.
