Recall - Seat Heater Cable Harness Defect: Overview
8501996 - 1997
Section:
8
Group:
85
No.:
0028
Year:
03
Month:
02
Recall Campaign no. 112, Rerouting Seat Heater Cable Harness
Background:
Under certain circumstances, it is possible that excessive compression of the seat cushions may cause damage to the electrical wiring of the seat heater If this occurs, the damage may result in a short circuit and could lead to burning of the underseat materials, increasing the risk of a fire and injury to a vehicle occupant.
The corrective action will consist of disconnecting the existing wires and installing a new electronic thermostat and cable harness kit.

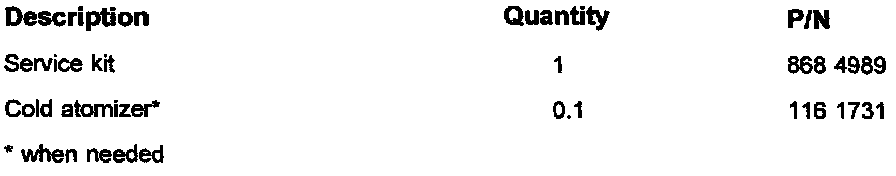

Material
Special Tool
Description
Ohm meter
