Checking Wiring and Terminals In Connector

When replacing the connector it is important that cables are properly connected in the new connector. Check cable connections before connecting the control module.

Method

- Ignition off.

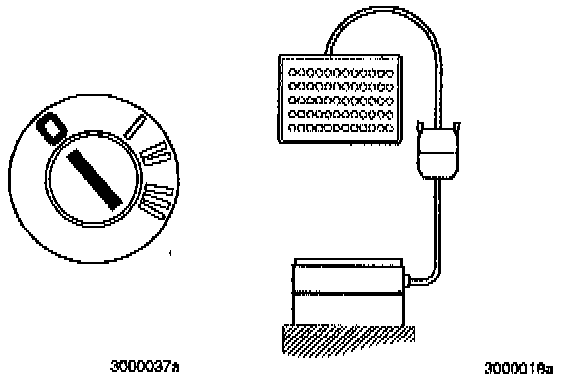

- Connect adapter 951 1354-4 to the control module connector (cable side) (see illustration).

- Connect breakout box 981 3190-7 to adapter.

- Control module disconnected.

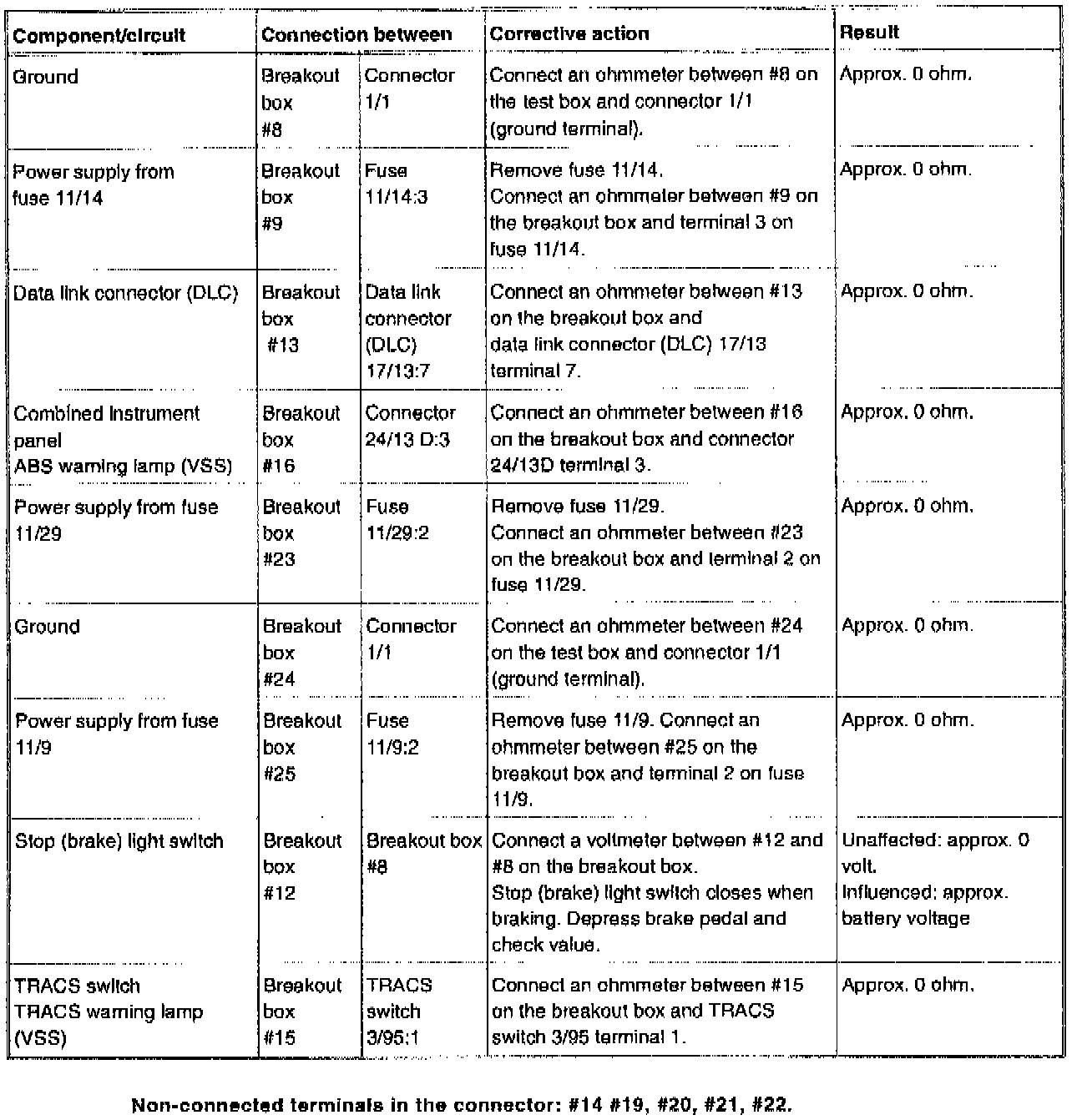

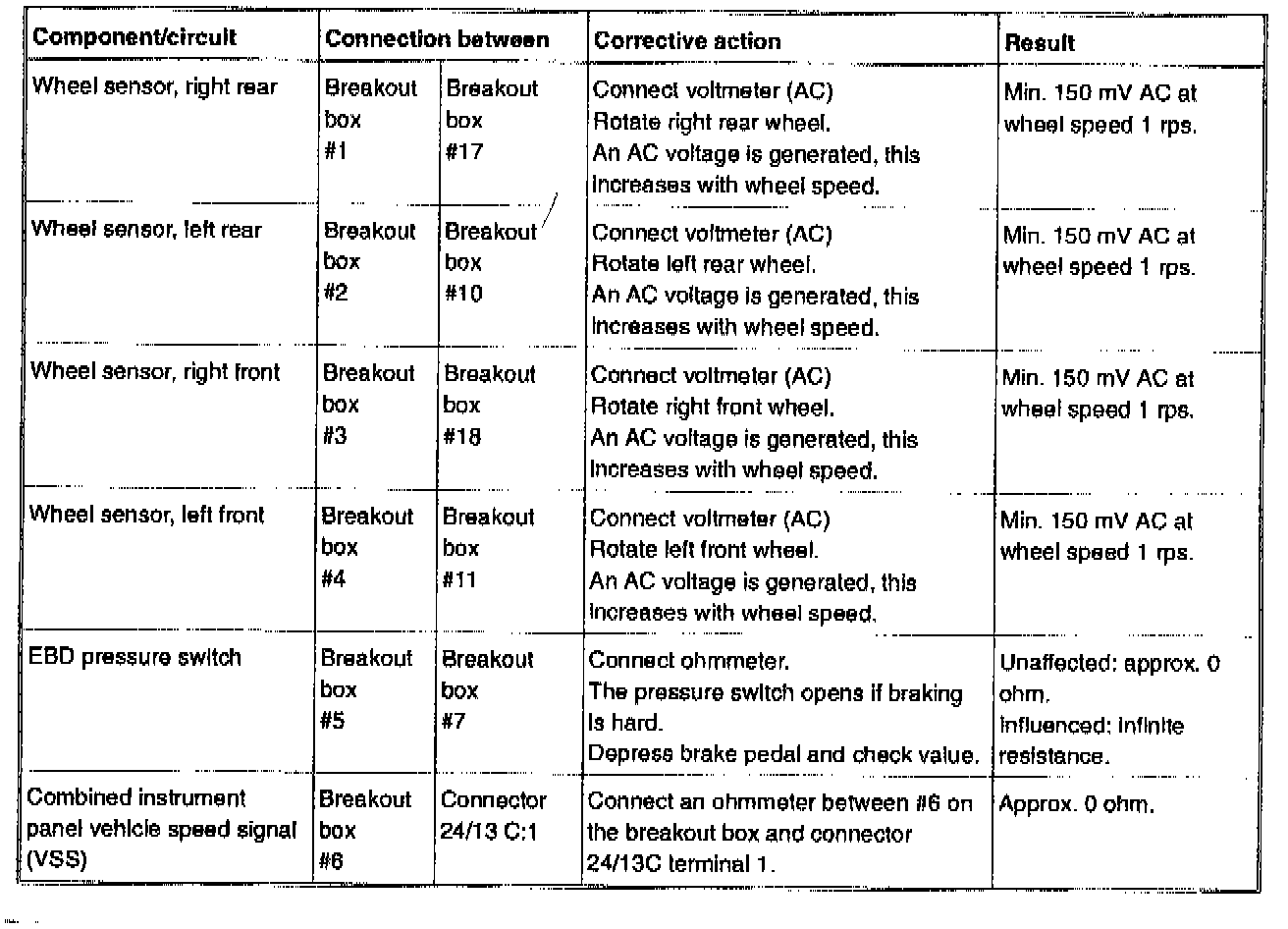

- Take readings according to the table above.
