Audio - Generator Noise in the Loudspeakers

SECTION
3

GROUP
39

NO.
811

DATE
Oct. -96

Generator (GEN) noise in the loudspeakers
850

REFERENCE: TP 3501201, SECTION 3(35-38) LIGHTING, INSTRUMENTS AND OTHER ELECTRICAL COMPONENTS; 850 1992-

Generator (GEN) noise in the loudspeakers

Background:
Generator (GEN) noise may be heard from approx. 3,000 rpm and upwards on cars with an amplifier and CD player introduced in the following chassis no. range.

This noise can be clearly heard just after the radio is turned on at low volume.

Adapter wiring has been developed as a service solution in case of customer complaints.

Adapter wiring P/N 9452125-9

Model: Factory Code: Chassis no.:

854 1 298483-
854 2 296572-
855 2 205648-

Method

Remove cover over CD player.

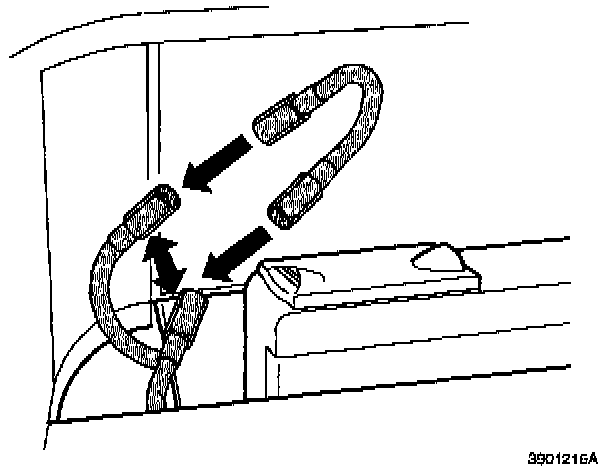

Disconnect CD cable and connect adapter wiring.

WARRANTY STATEMENT: Claims may be submitted under the New Car Limited Warranty when there is a documented generator noise using claim type: 01

Operation No. Labor description Time allowance

39931-2 Installing adapter cable 0.1 hr.
