Washer Fluid Level Switch: Service and Repair

Removal:

- Remove filler pipe from washer fluid reservoir.
- Pull level sensor up. (Located on end of lead).
- Undo connector.

Installation:

- Connect connector to level sensor.
- Install level sensor, pressing it carefully into place.
- Reinstall filler pipe on washer fluid reservoir.

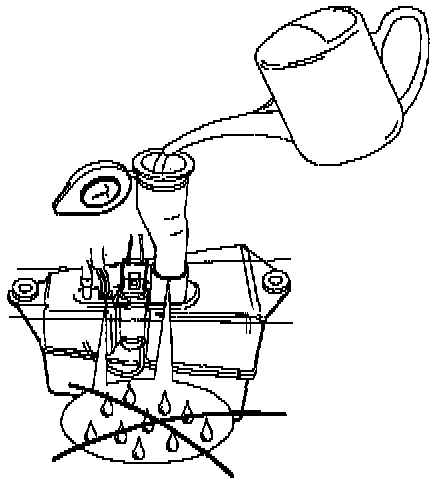

- Fill reservoir with water and check that level sensor and filler pipe fit tightly to reservoir.
