Power Window Switch: Service and Repair

Removal:





- Turn ignition off.
- Remove screws from front of cigarette lighter compartment.

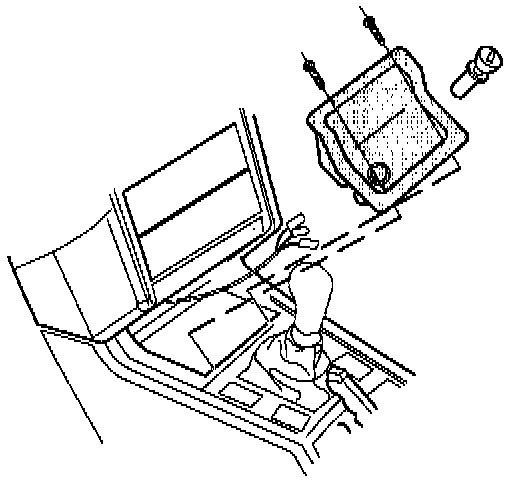

- Remove cigarette lighter compartment, pull carefully back.
- Undo cigarette lighter contact and light





- Remove panel underneath handbrake lever.
- Remove cover from storage compartment.

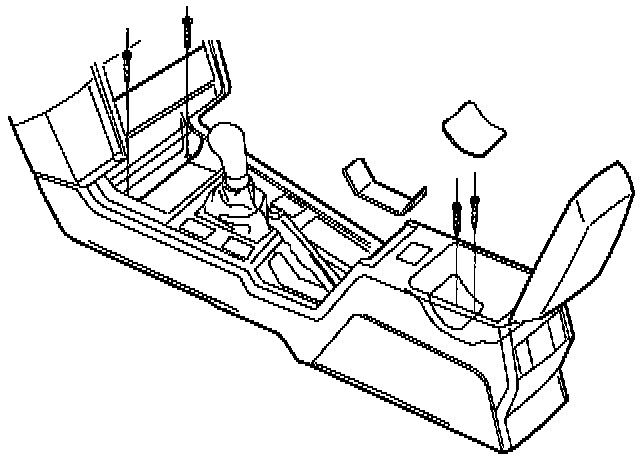

- Remove screws under cover in storage compartment.
- Remove screws on front of tunnel compartment (Center console).





- Undo connector at front of tunnel compartment.

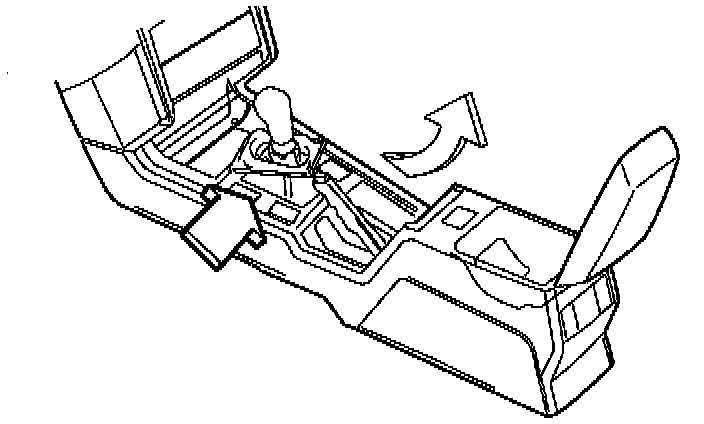

- Pull tunnel compartment carefully upwards.
- In manual models, undo gearshift curtain at connection to tunnel compartment before removing tunnel compartment.
- Remove tunnel compartment from car and lay it upside down.

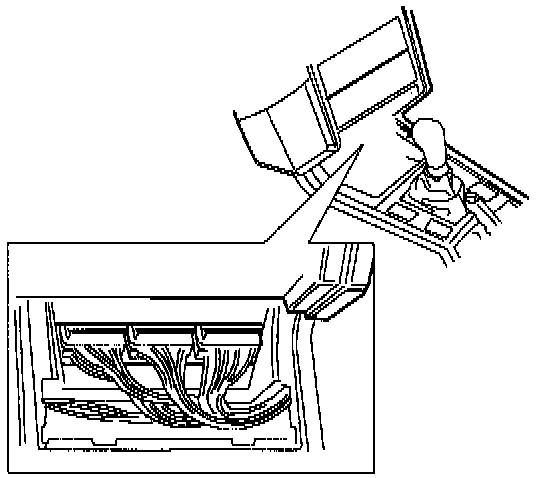

- Undo connector to control panel.
- Undo connector to 'Autodown relay'.
- Remove clip from control panel cable harness.

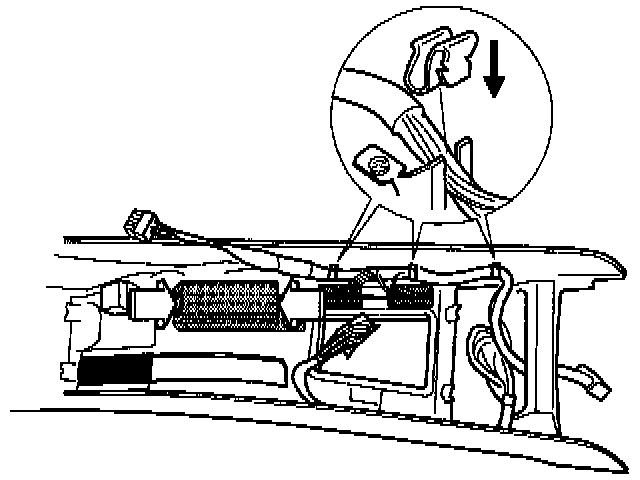

- Remove control panel, push in hooks on clip and push control panel out.

Installation:





- Install control panel, making sure hooks catch properly.
- Put control panel cable harness in tunnel compartment track as before.

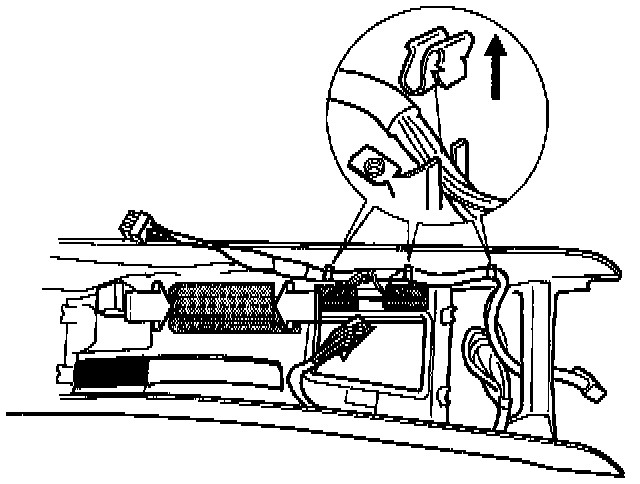

- Install clip to control panel cable harness.
- Connect connector to control panel.
- Connect connector to 'Autodown relay'.





- Install gearshift curtain (Manual Models Only). Insert curtain through opening in tunnel console and press frame into tunnel bracket.

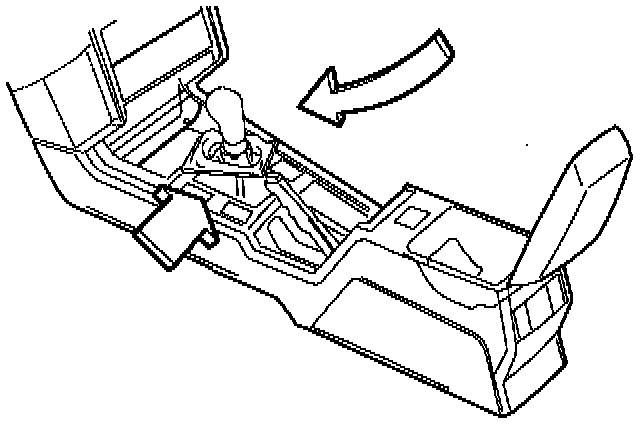

- Install tunnel compartment, take care not to crack tunnel compartment.

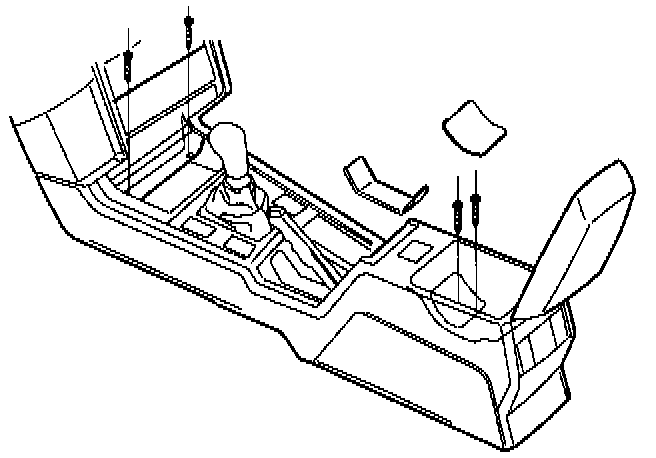

- Install screws under cover in storage compartment.
- Install cover on storage compartment.
- Install screws on front of tunnel compartment.
- Install panel under handbrake lever.





- Connect connector at front of tunnel compartment.
- Connect cigarette lighter connector and light.
- Install screws in front of cigarette lighter compartment.
- Install cigarette lighter compartment, pull back carefully.
- Test control panel switches.
