Electrical Diagrams

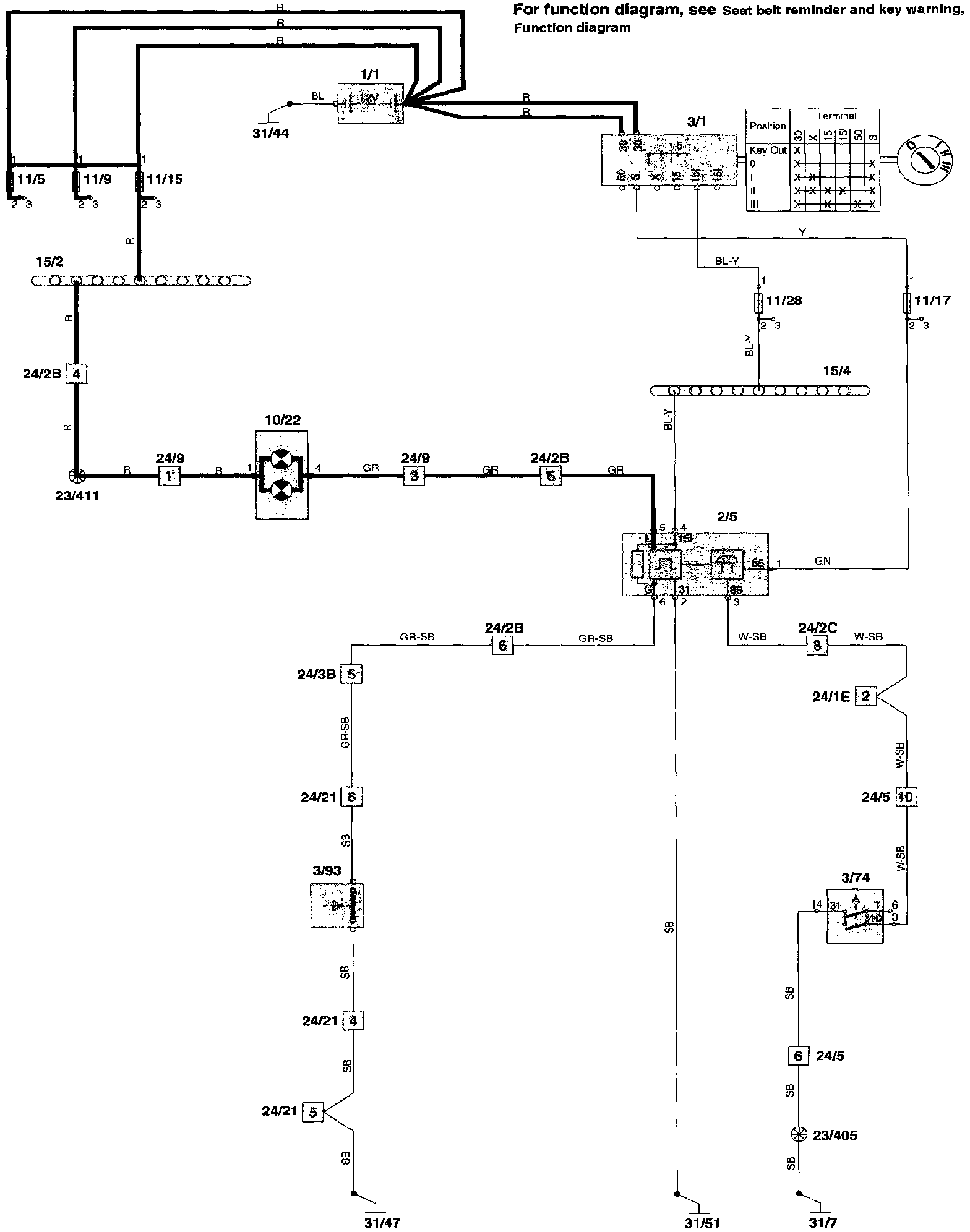

Wiring Diagram

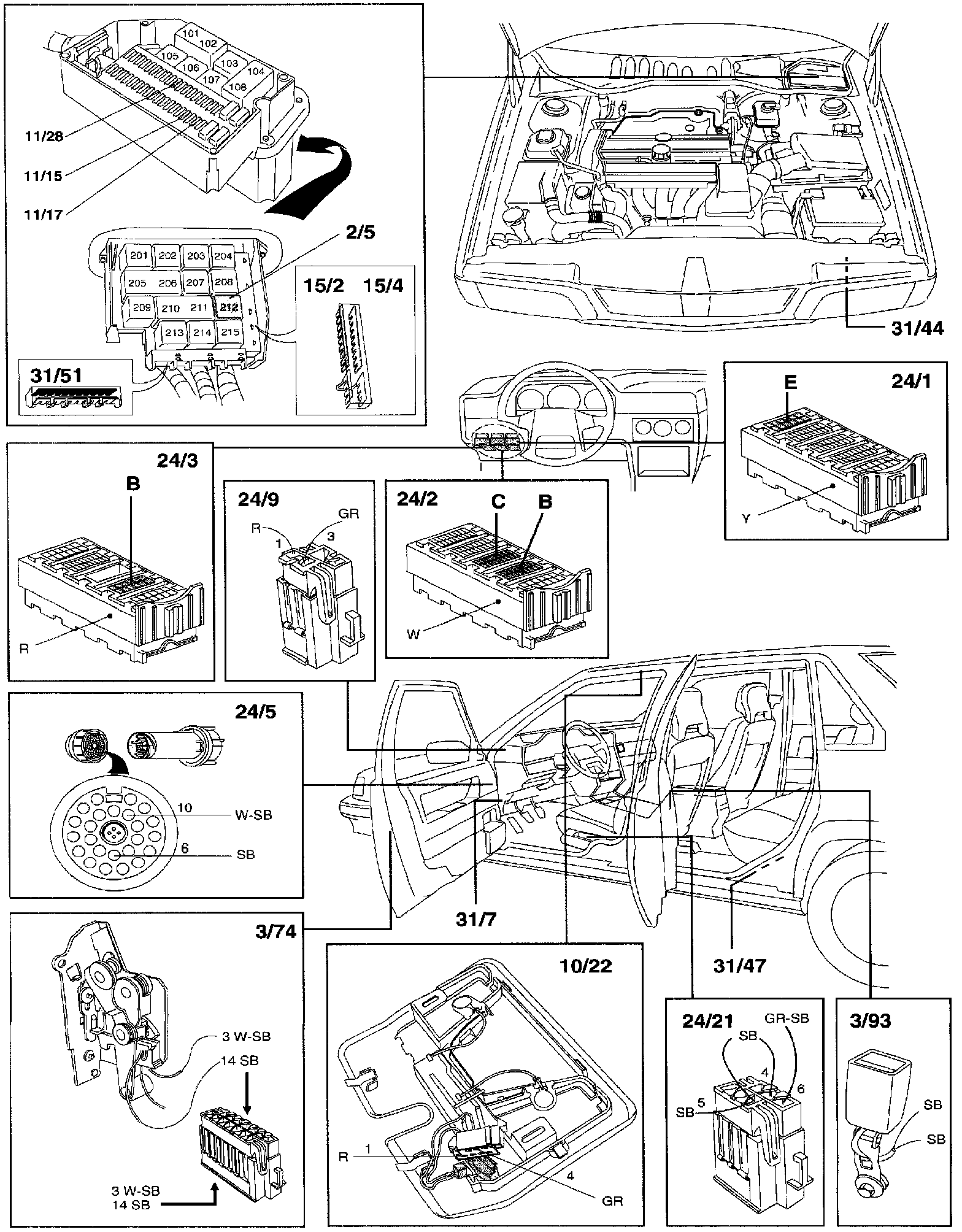

Component Location

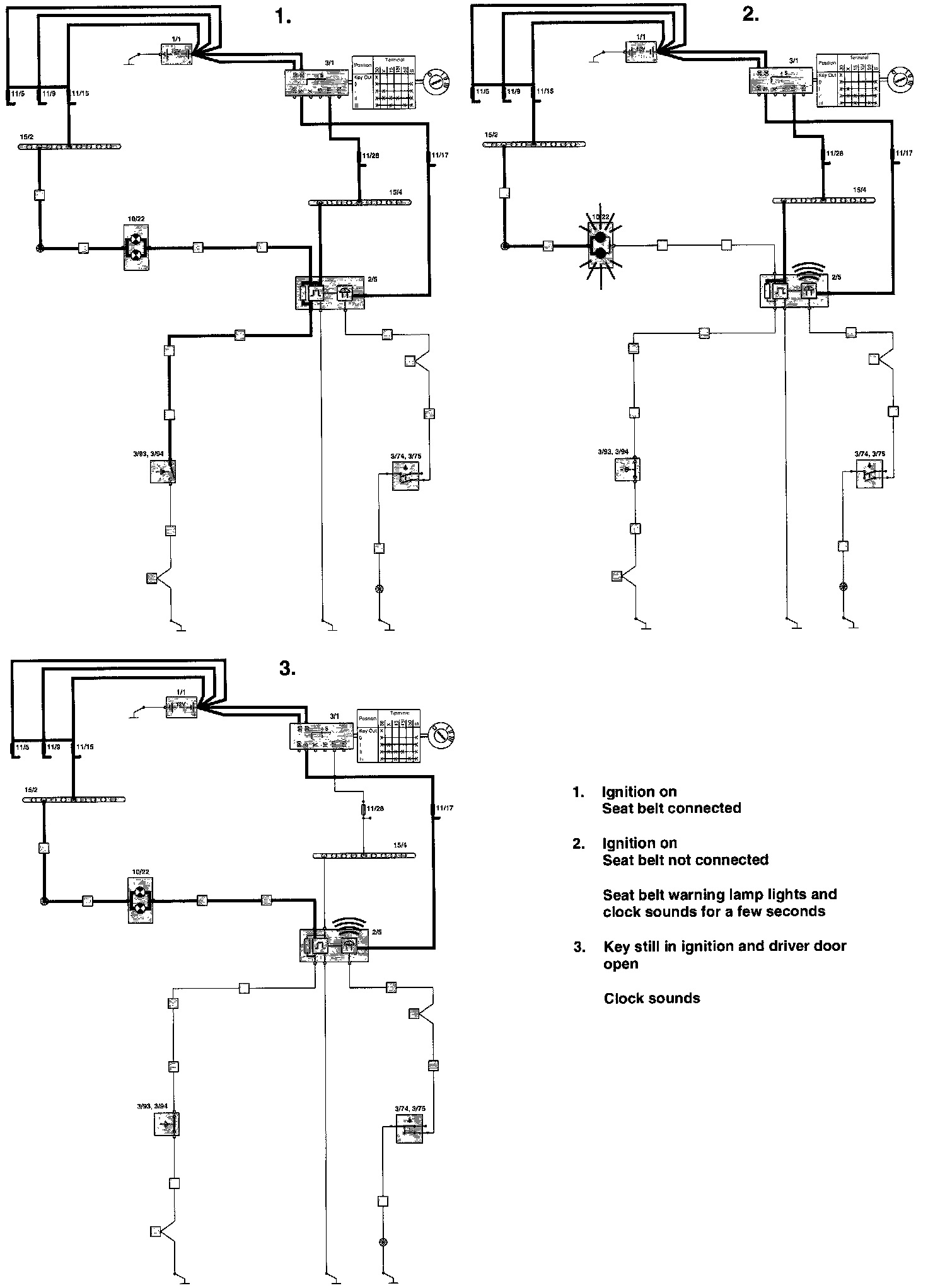

Fuction Diagram

Component I.D. List
2/5 Seat belt reminder/key warning relay
3/74 Lock module, front left
3/93 Seat belt lock, left front seat
10/22 Courtesy light
11/15 Fuses
11/17 Fuses
11/28 Fuses
15/2 30-rail in central electrical unit
15/4 15I-rail in central electrical unit
24/1 Connector
Instrument panel harness - firewall harness
24/2 Connector
Engine compartment harness - firewall harness
24/3 Connector
Firewall harness - left door sill harness
24/5 Connector, 24-pin
Firewall harness - left front door harness
24/9 Connector, 4-pin Firewall harness - roof harness
24/21 Connector, 6-pin
Left door sill harness - left front seat
31/7 Ground point, A-pillar driver side
31/44 Ground point, engine compartment (ground point, battery - body)
31/47 Ground point, left cross member
31/51 Ground point, central electrical unit, signal ground
