Oil Level Sensor: Service and Repair

NOTE: When checking oil level sensor, always make sure car is level and check level via dipstick.

Oil Level Sensor:

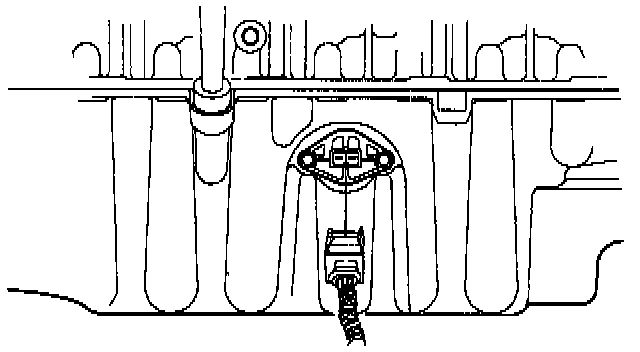

- Oil level sensor is located in a hole on the long front side of the sump.
- Hoist car up before starting work.
- Remove splashguard from underneath engine.
- Undo connector.
- Undo the two screws holding the oil level sensor.
- Remove oil level sensor and replace.
- Assemble in reverse order.
