Coolant Level Sensor: Service and Repair

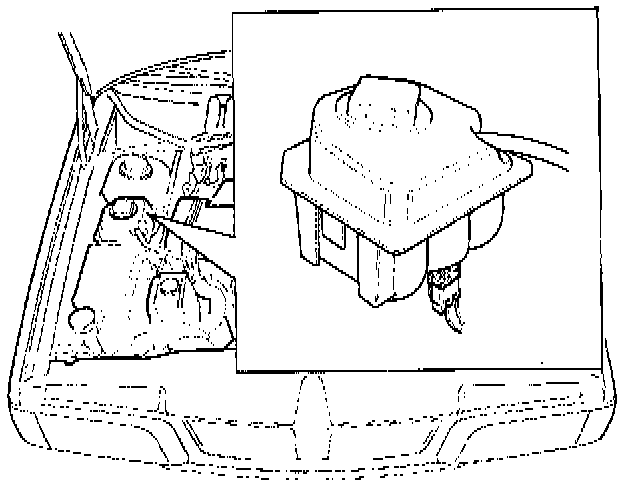

Expansion Tank/Level Sensor:
-
Lift expansion tank and tilt it sideways to get at the underneath.
-
Undo connector.
-
Remove
coolant level sensor
and replace.
-
Install in reverse order.
