Parking Brake Release Switch: Service and Repair

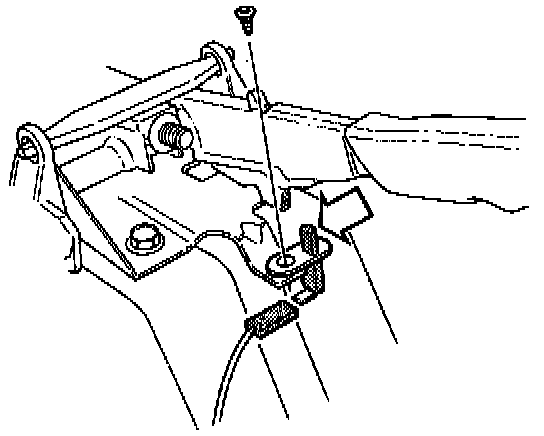

Parking Brake Switch:





- Remove Tunnel Compartment (Center Console), lifting it up carefully. Console
- Unscrew the screw holding the contact.
- Undo connector and replace the contact.
- Assemble in reverse order.
