Rear Seat

Removal:

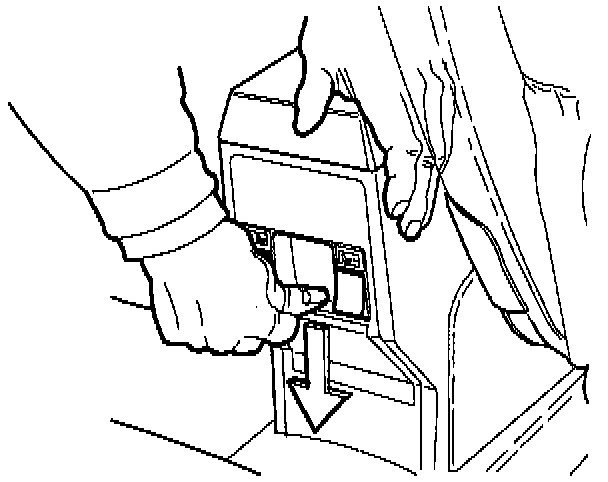

- Press top of ashtray panel down until it comes away.
- Undo connector.

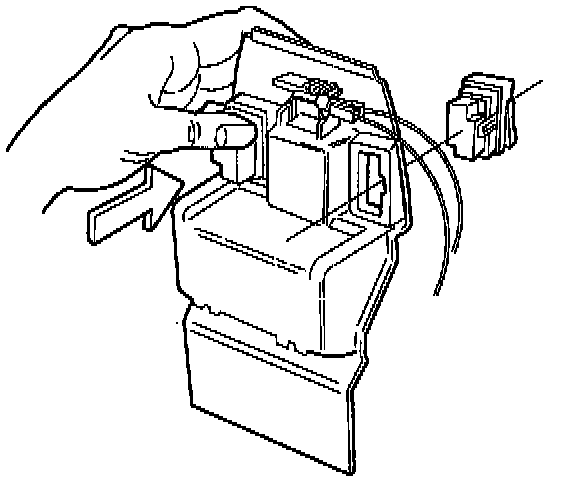

- Push out toggle switch from behind.

Installation:

- Connect connector.
- Check that switch works before installing.
- Install switch, pressing firmly into ashtray panel.
- Install ashtray panel, fit into catch at top then push in at bottom.
