Freeze Test

CF. Freeze Test

CF1 General

In the Freeze Test function, the user can choose between automatic freezing of values when a DTC is set or manual freezing of certain values.
This allows the user to identify extremely short-term faults and read off current operating data at the time the fault occurred.
It is also possible to freeze values which were manually selected, for example to study operating conditions under acceleration.






Function menu

Use the up and down arrow keys to move the cursor up and down.
Select the sub-function with ENTER.

Sub-function menu

Move the cursor with the up and down arrow keys.
Select the sub-function with ENTER.

Two sub-functions are available in Freeze List.

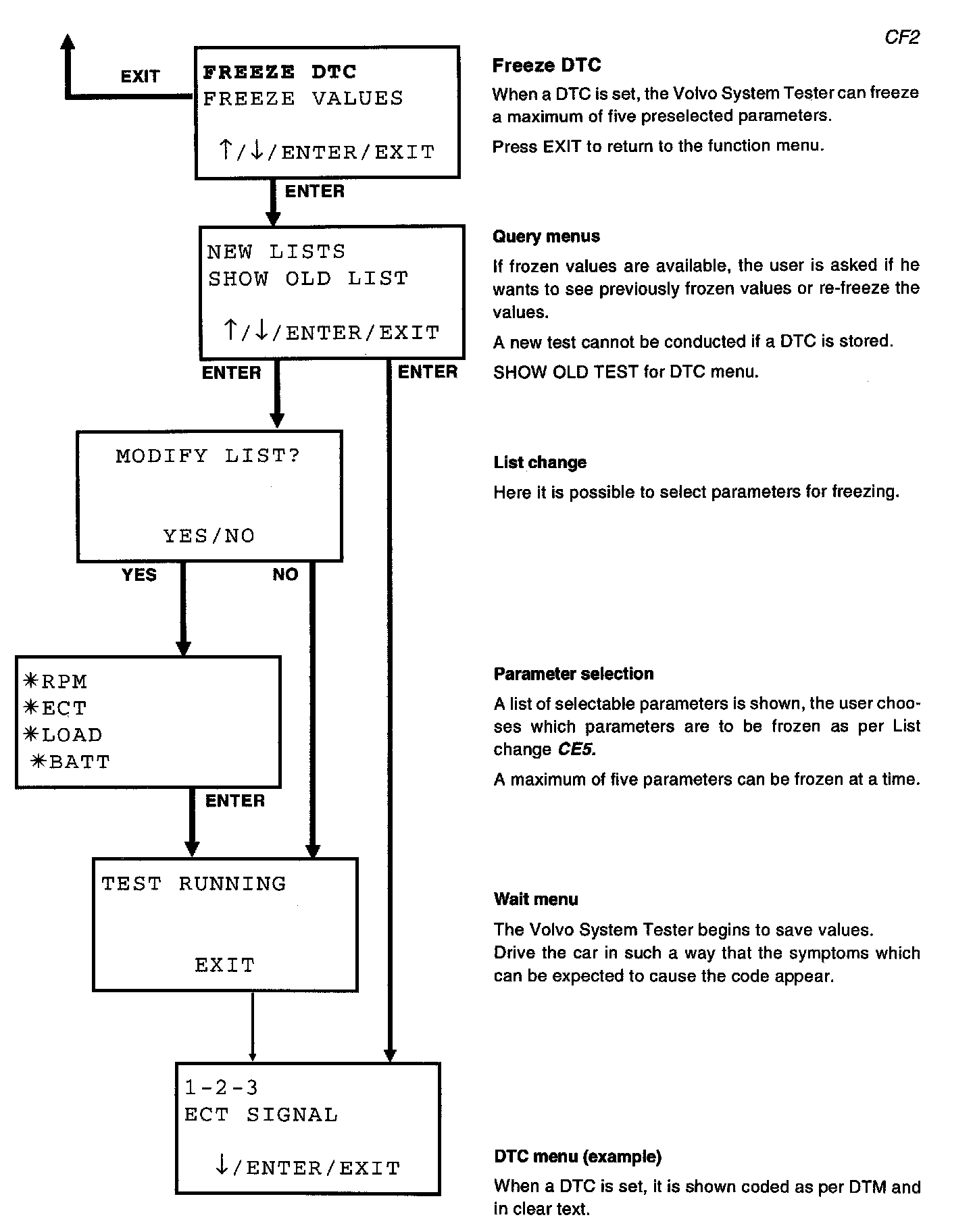

Freeze DTC CF2.

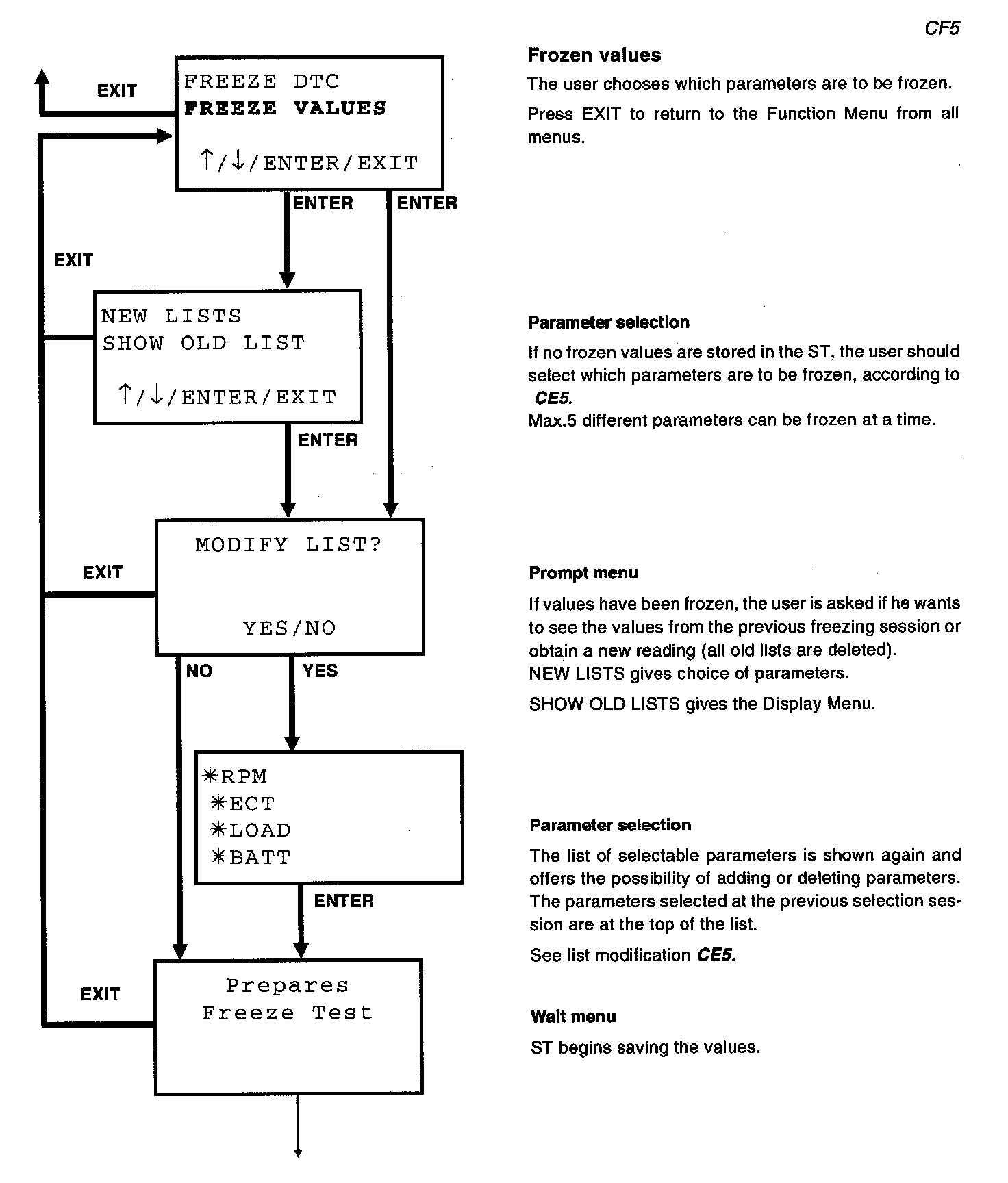

Freeze values CF5.

��,:
