Home >> Volvo >> 1996 >> 850 Turbo L5-2.3L Turbo VIN 57 B5234FT >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Rear of Engine Components

Rear of Engine Components

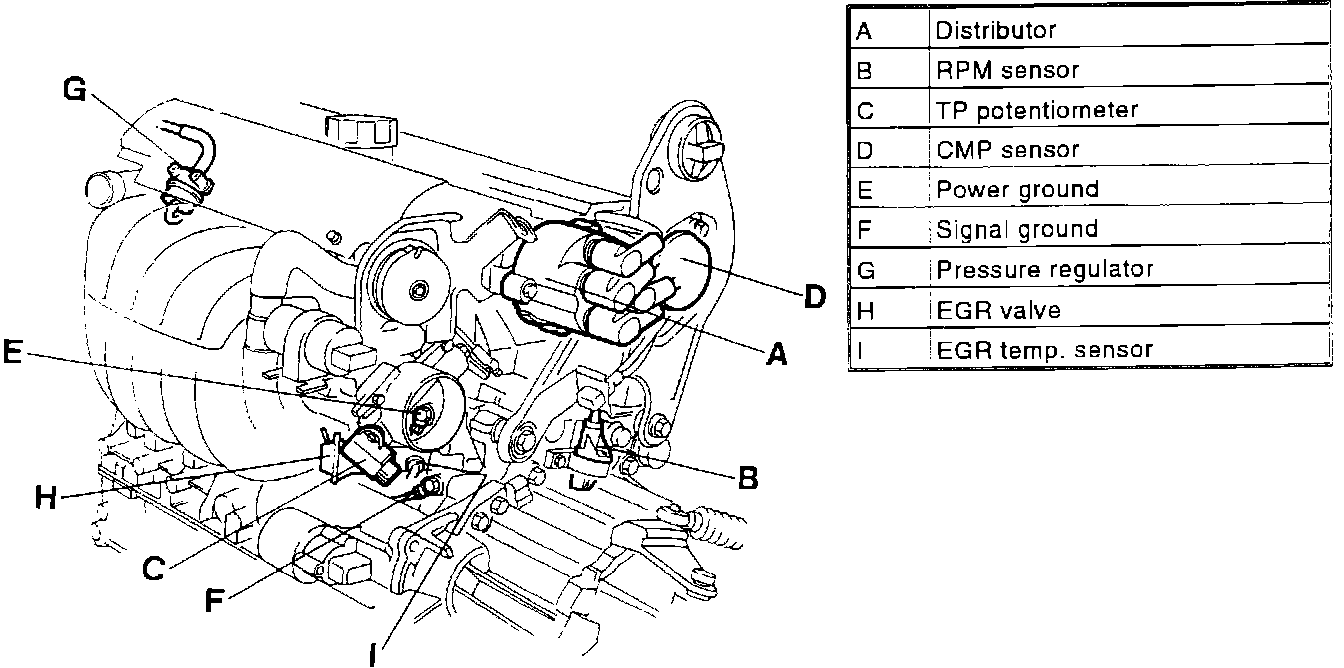

Rear of Engine:
