Fuel Filter: Service and Repair

Fuel Rail Service Port:

Relieve fuel system pressure at service port

Fuel Filter Removal:

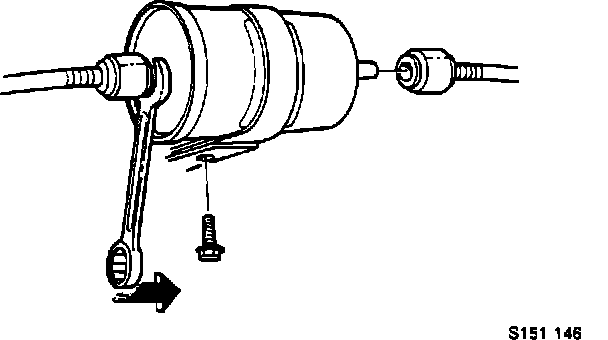

Remove fuel filter
- Use 17 mm open-end wrench to push back quick-release sleeves.
- Remove filter clamp screw.
- Remove filter.

Install fuel filter
- Attach clamp to bracket loosely.
- Slide filter into place and tighten clamp.
- Attach quick-release couplings to filter.
- START engine and check for fuel leaks.
