Front Flashers and Parking Lights

Replacing Bulbs and/or Light Casings:

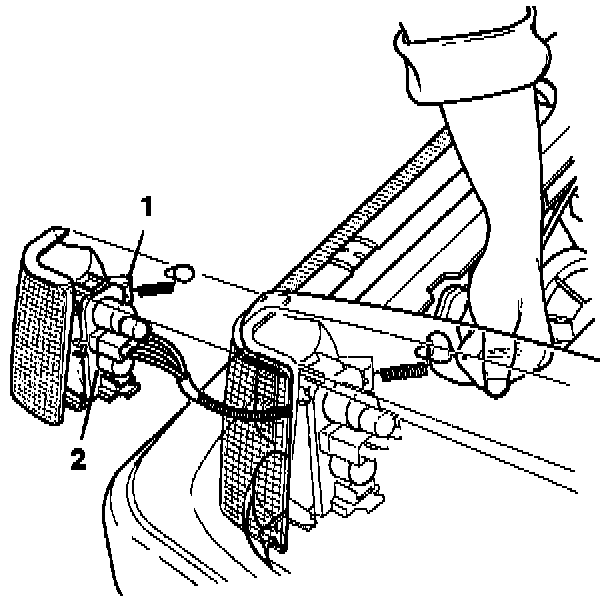

1. Parking lights
2. Flashers

Single-Bulb Headlight, Replacement:

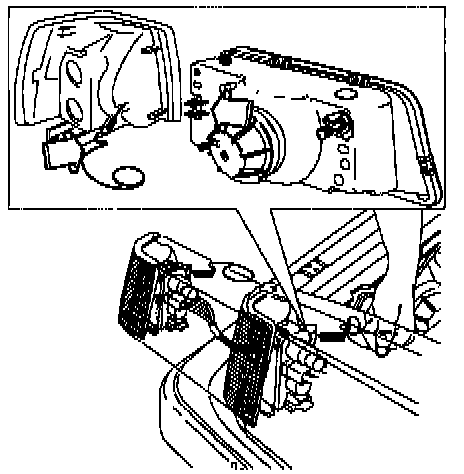

- To remove the light casing, remove the spring clip hooked onto the lug on the side of the headlight casing (see Image).
- Remove complete light casing forwards.
- Undo bulb-holder by pushing the catch at the bottom upwards. Leave connector and leads resting on bulb-holder.
- Replace the bulb which has blown. Service and Repair (Bulb Type)
- Replace light casing if damaged or cracked.
- Testing operation.
- Assemble in reverse order.

Check that hook and spring are correctly hooked up and that the light casing guides match up correctly.
