Tailgate Wash/Wipe

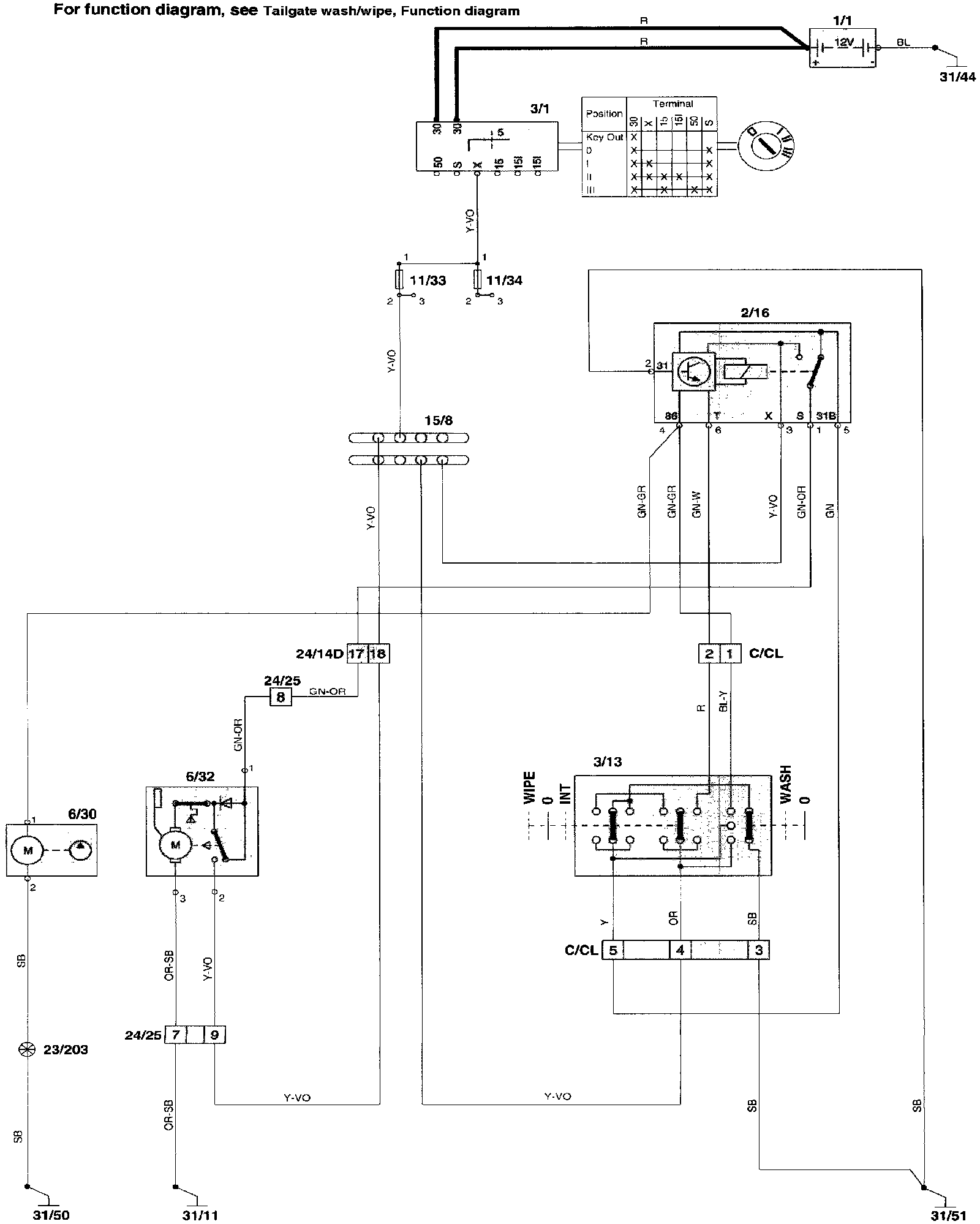

Wiring Diagram

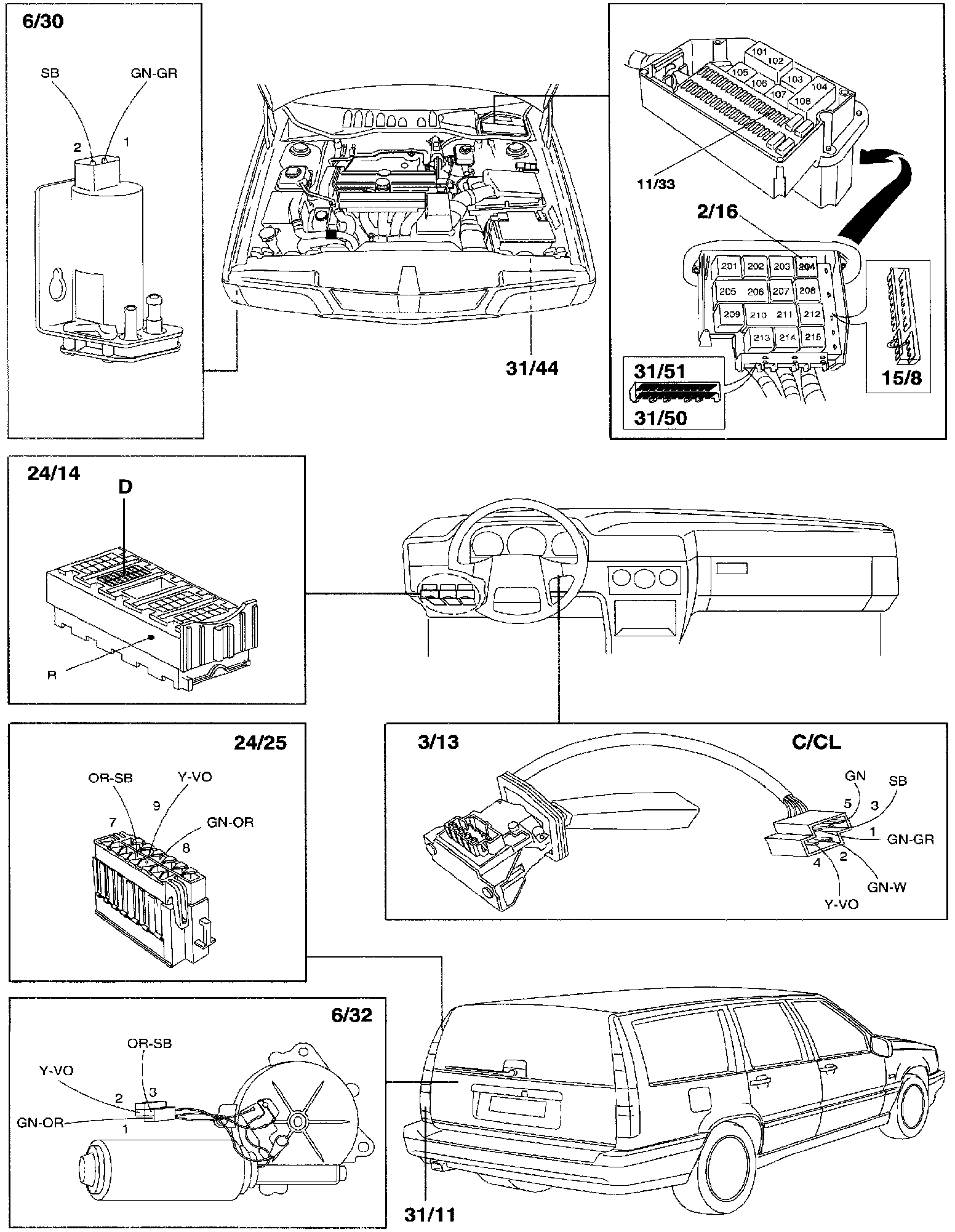

Component Location

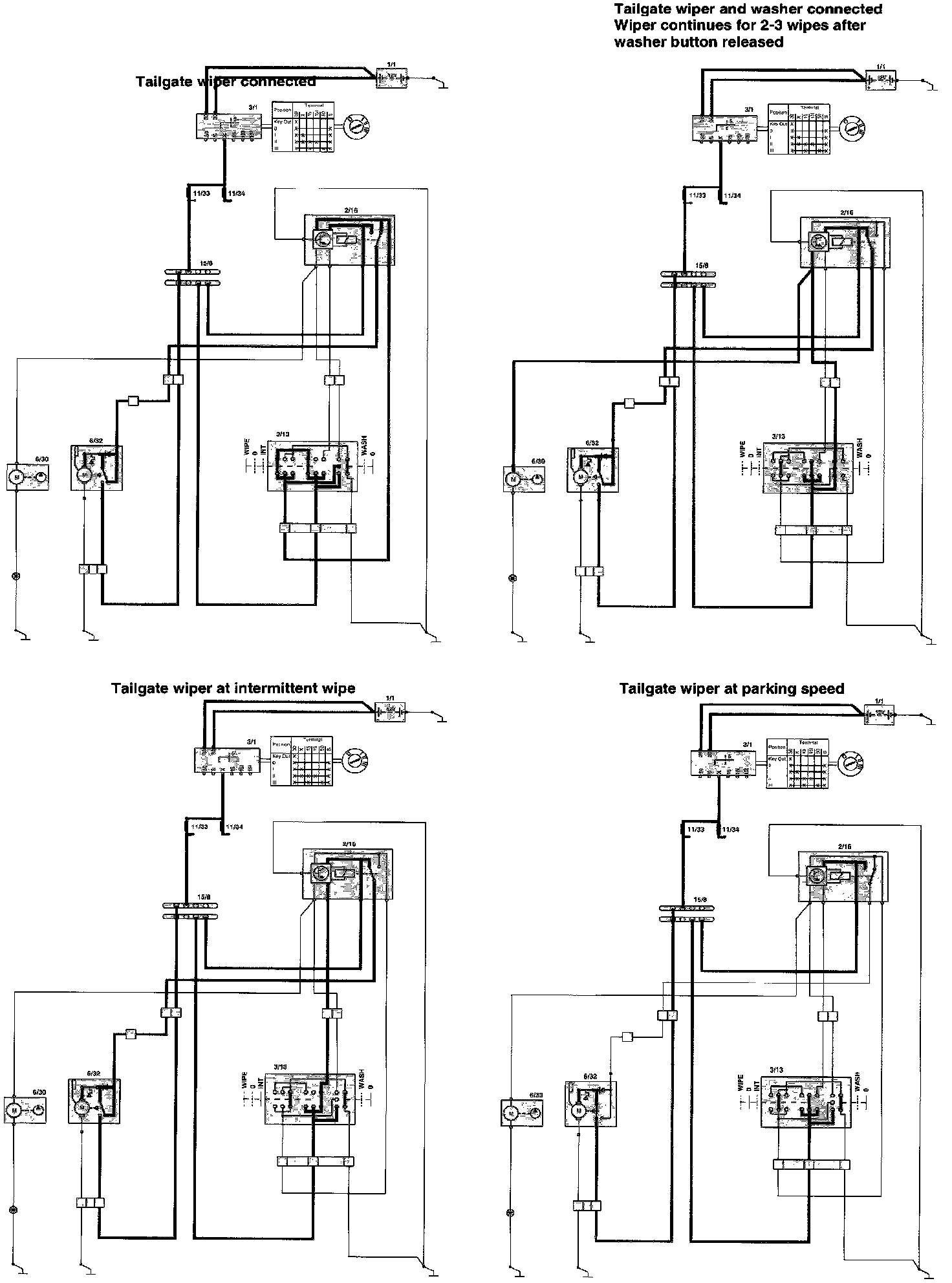

Fuction Diagram

Component I.D. List
C/CL Connector, 6-pin, tailgate wash/wipe
2/16 Tailgate wiper intermittent relay
3/13 Switch, tailgate wiper and washer
6/30 Tailgate washer motor
6/32 Tailgate wiper motor
11/33 Fuses
15/8 X-rail in central electrical unit
24/14 Connector
Engine compartment harness - left door sill harness
24/25 Connector, 14-pin
Left door sill harness - tailgate harness
31/11 Ground point, trunk, left side
31/44 Ground point, engine compartment (ground point, battery - body)
31/50 Ground point, central electrical unit, power ground
31/51 Ground point, central electrical unit, signal ground
