System Diagram

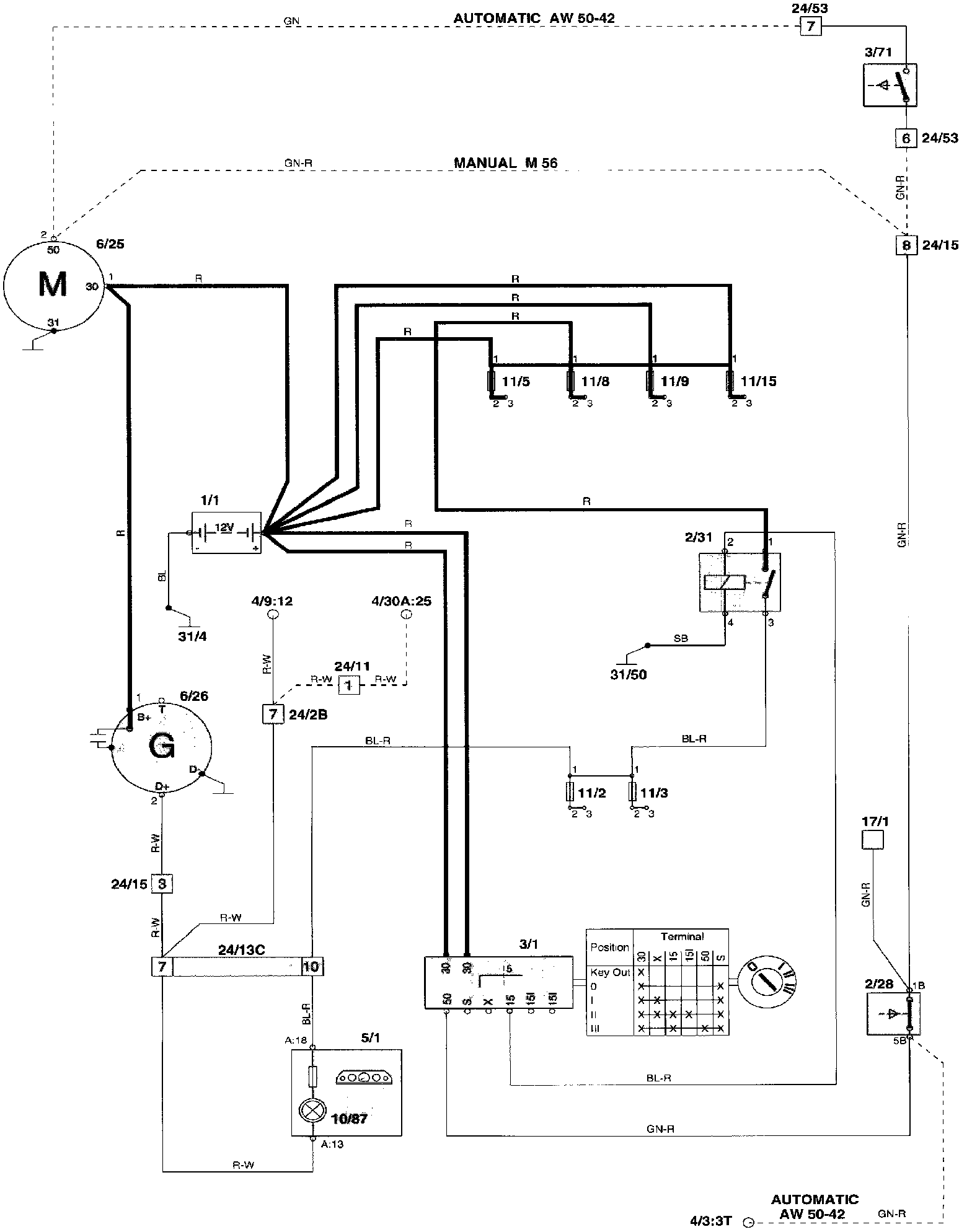

Wiring Diagram




Component Location

Component I.D. List
1/1 Battery
2/28 Alarm relay
2/31 Overload relay 15+
3/1 Ignition switch
3/71 Transmission range sensor
4/3 Control module, cruise control
4/9 SRS sensor unit
4/30 Control module, ECC
5/1 Combined instrument panel
6/25 Starter motor
6/26 Generator
10/87 Warning lamp, charging
17/1 Service socket for starter motor
24/2 Connector
Engine compartment harness - firewall harness
24/11 Connector, 10-pin
Firewall harness - climate unit harness
24/13 Connector
Engine compartment harness - instrument panel harness
24/15 Connector, 14-pin
Engine compartment harness - engine harness
24/53 Connector, engine harness - automatic transmission
31/4 Ground point, engine (ground point, battery - engine)
31/50 Ground point, central electrical unit, power ground
