Grounding Point

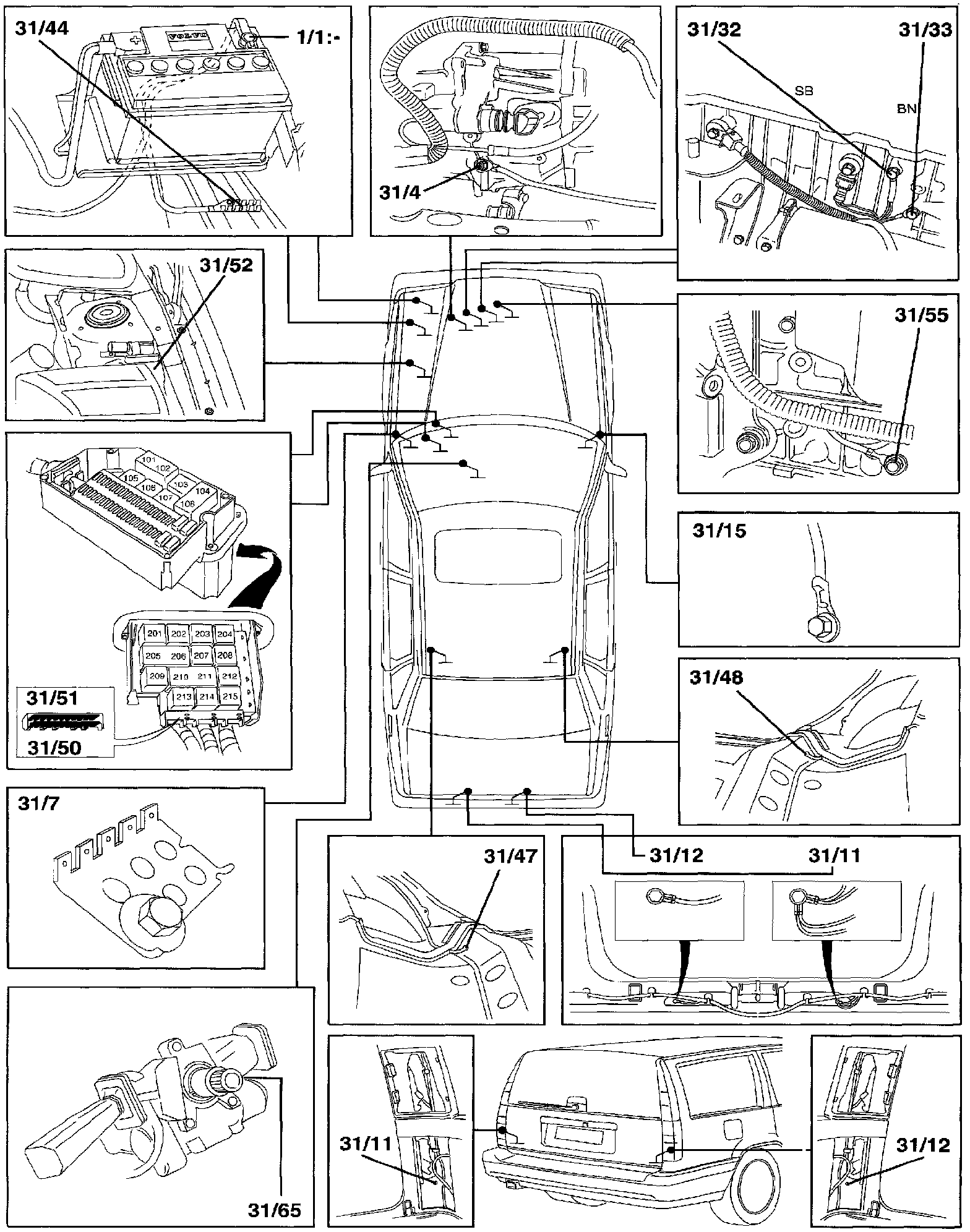

Ground Point Overview:

Component Location

Ground Point I.D. List
1/1 Battery
31/4 Ground point, engine (ground point, battery - engine)
31/7 Ground point, A-pillar driver side
31/11 Ground point, trunk, left side
31/12 Ground point, trunk, right side
31/15 Ground point, A-pillar passenger side
31/32 Ground point, on engine (power ground)
31/33 Ground point, on engine (signal ground)
31/44 Ground point, engine compartment (ground point, battery - body)
31/47 Ground point, left cross member
31/48 Ground point, right cross member
31/50 Ground point, central electrical unit, power ground
31/51 Ground point, central electrical unit, signal ground
31/52 Ground point, DI power stage and ignition coil
31/55 Ground point, engine cooling fan
31/65 Ground point, steering column
