Backup Lamp

Back-up (Reversing) Light Diagram

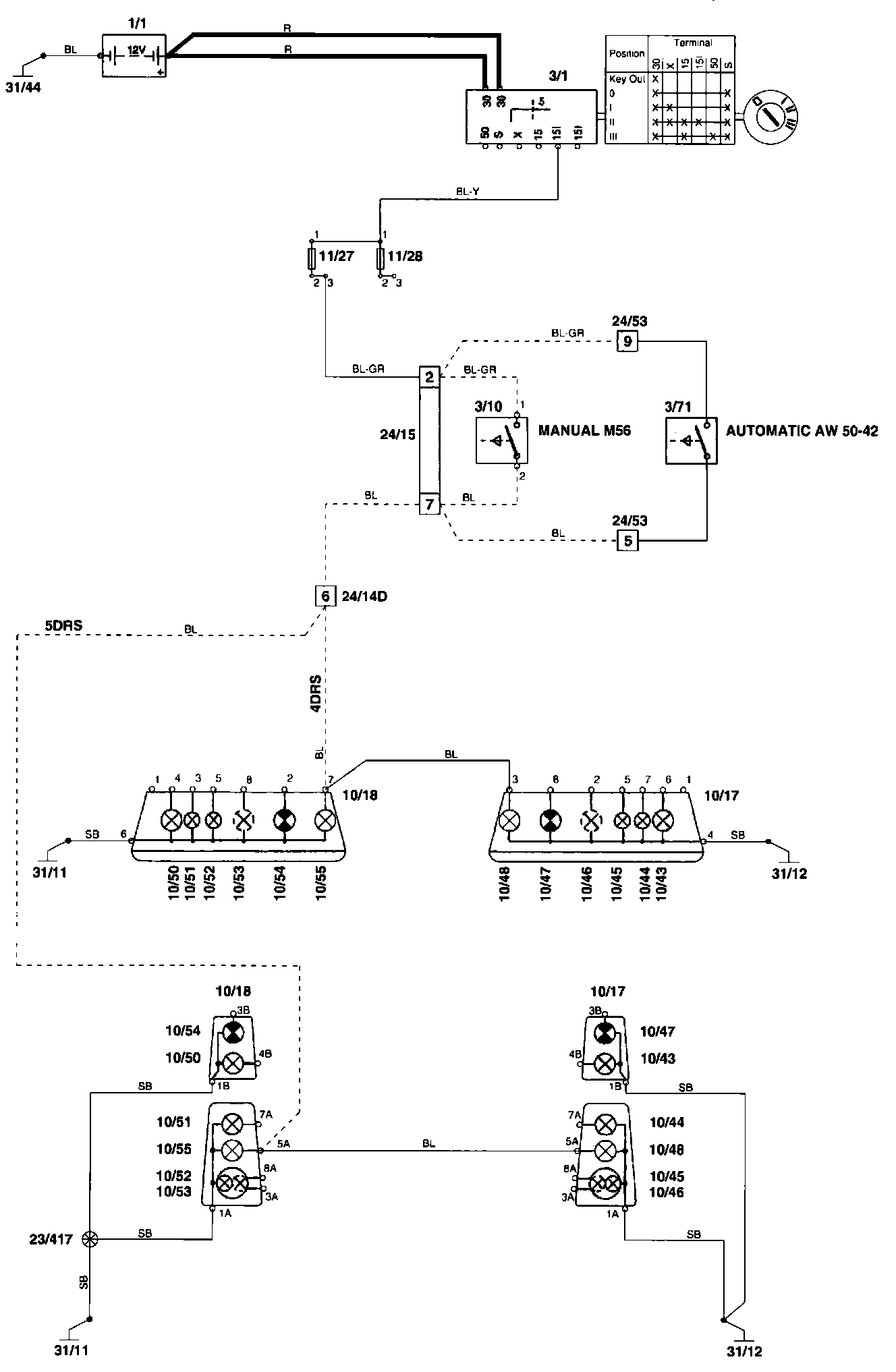

Back-up Light Diagram:

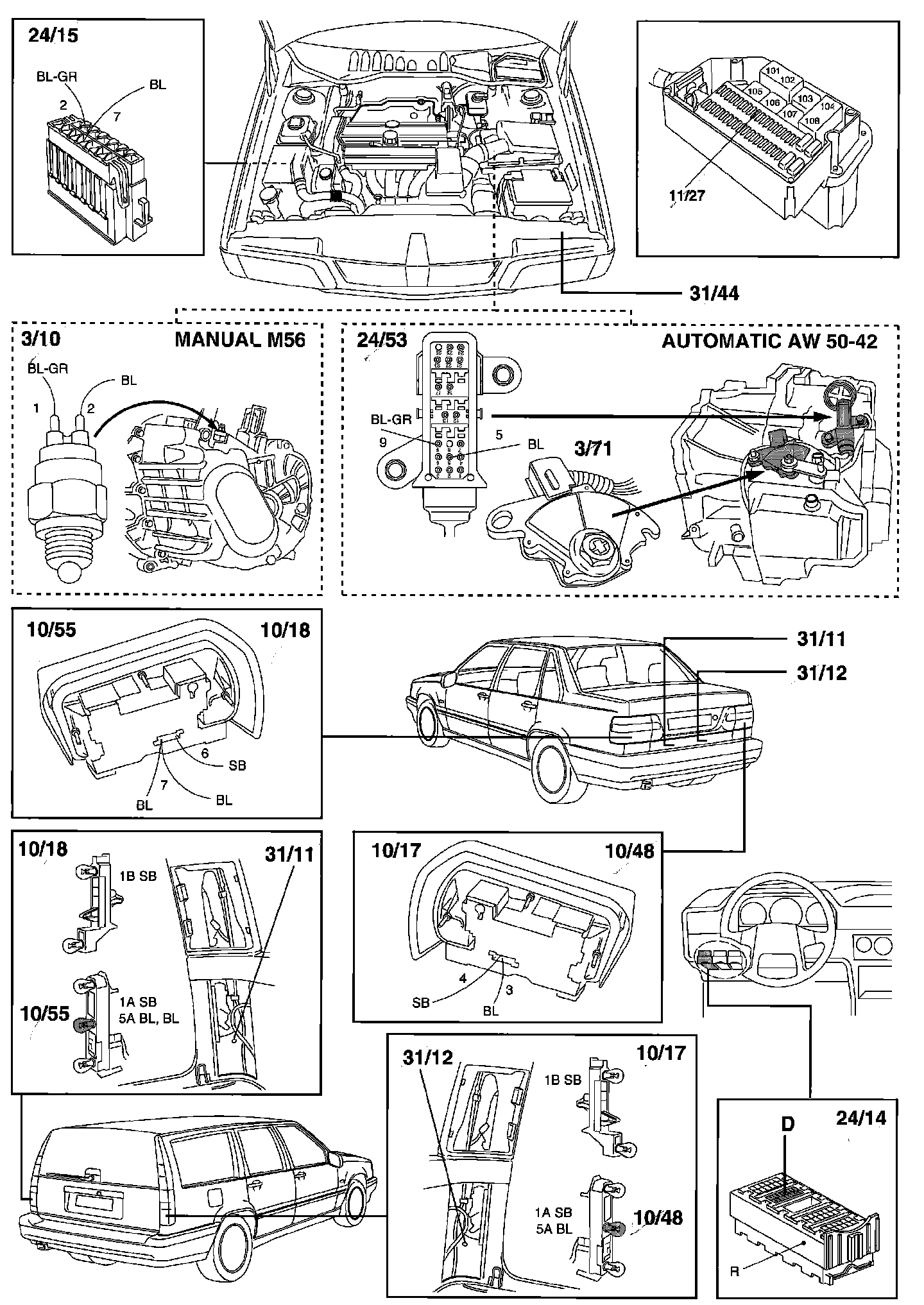

Components:

Component List

3/10 Back-up (Reversing) Light Switch
3/71 Transmission Range Sensor
10/17 Right Tail Light
10/18 Left Tail Light
10/55 Left Back-up (Reversing) Light
10/48 Right Back-up (Reversing) Light
11/27 Fuses
24/14 Connector, Engine compartment harness - left door sill harness
24/15 Connector 14 Pin, Engine compartment harness - engine harness
24/53 Connector, engine harness - automatic transmission
31/11 Ground point, trunk, left side
31/12 Ground point, trunk, right side
31/44 Ground point, engine compartment
