Home >> Volvo >> 1996 >> 850 Turbo L5-2.3L Turbo VIN 57 B5234FT >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors 24/1 and 24/13

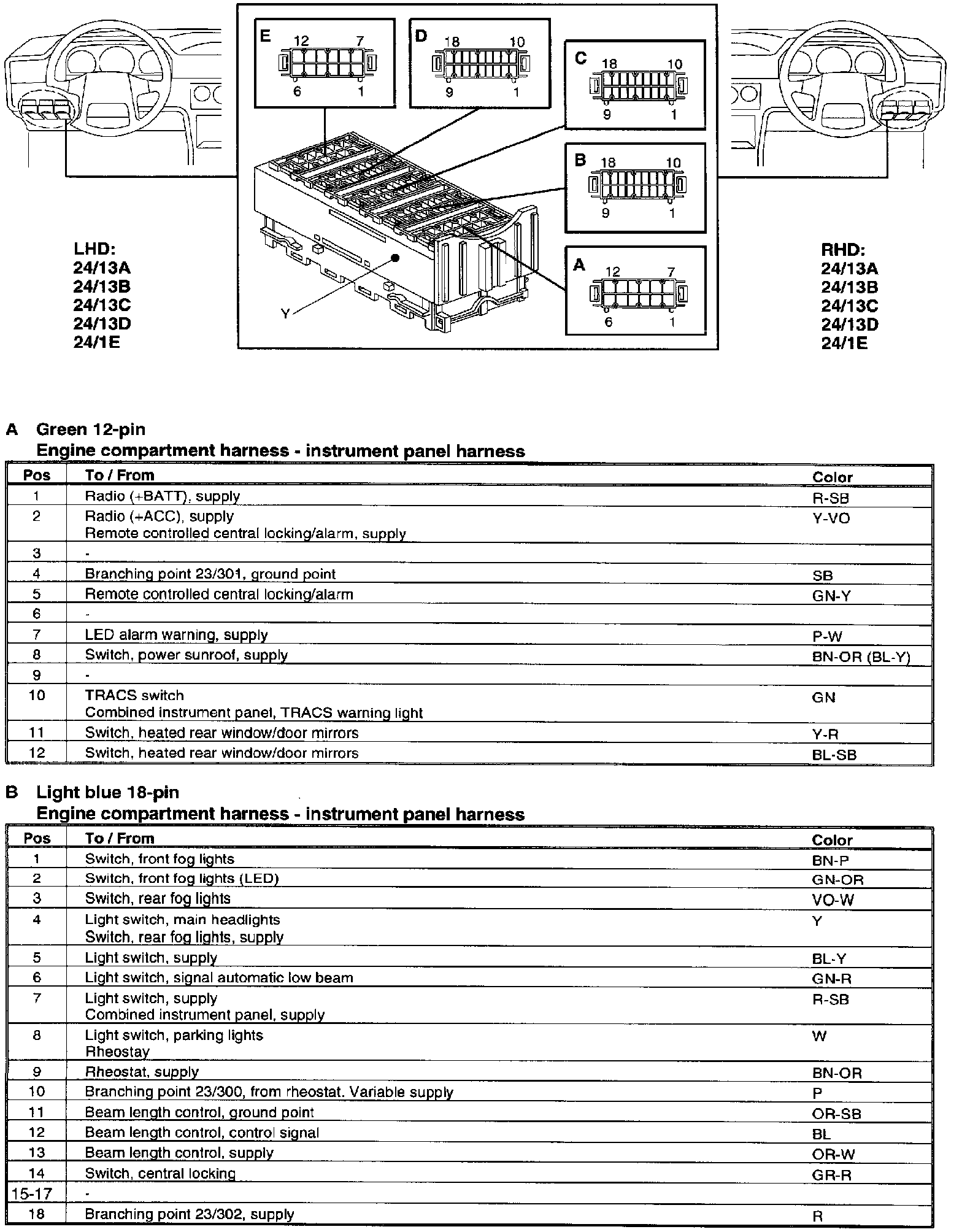

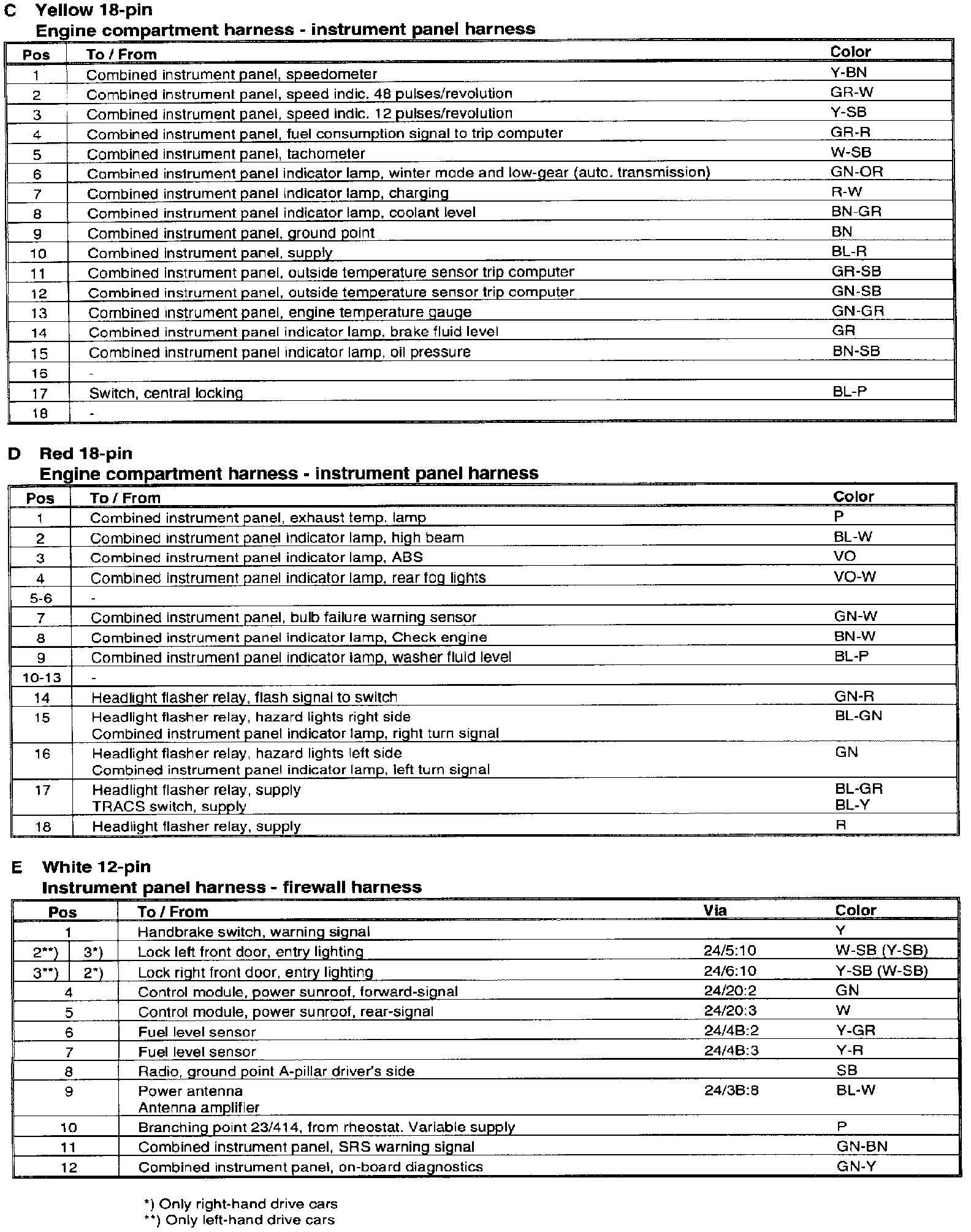

Connectors 24/1 and 24/13
