Signal Tables

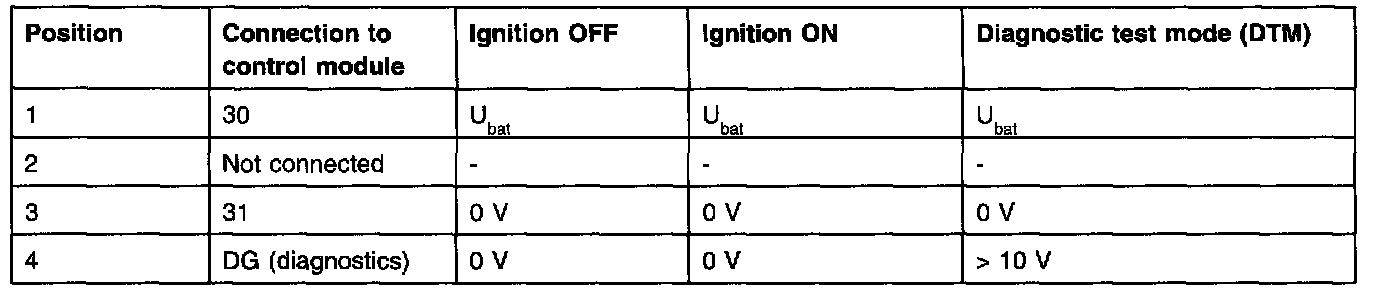

Connector A
4-pin gray connector













Type: Timer
U (bat) = Battery voltage


Connector B
14-pin gray connector













Type: Timer
U (bat) = Battery voltage

Connector C
14-pin gray connector









Type Mini-timer
U (bat) = Battery voltage.

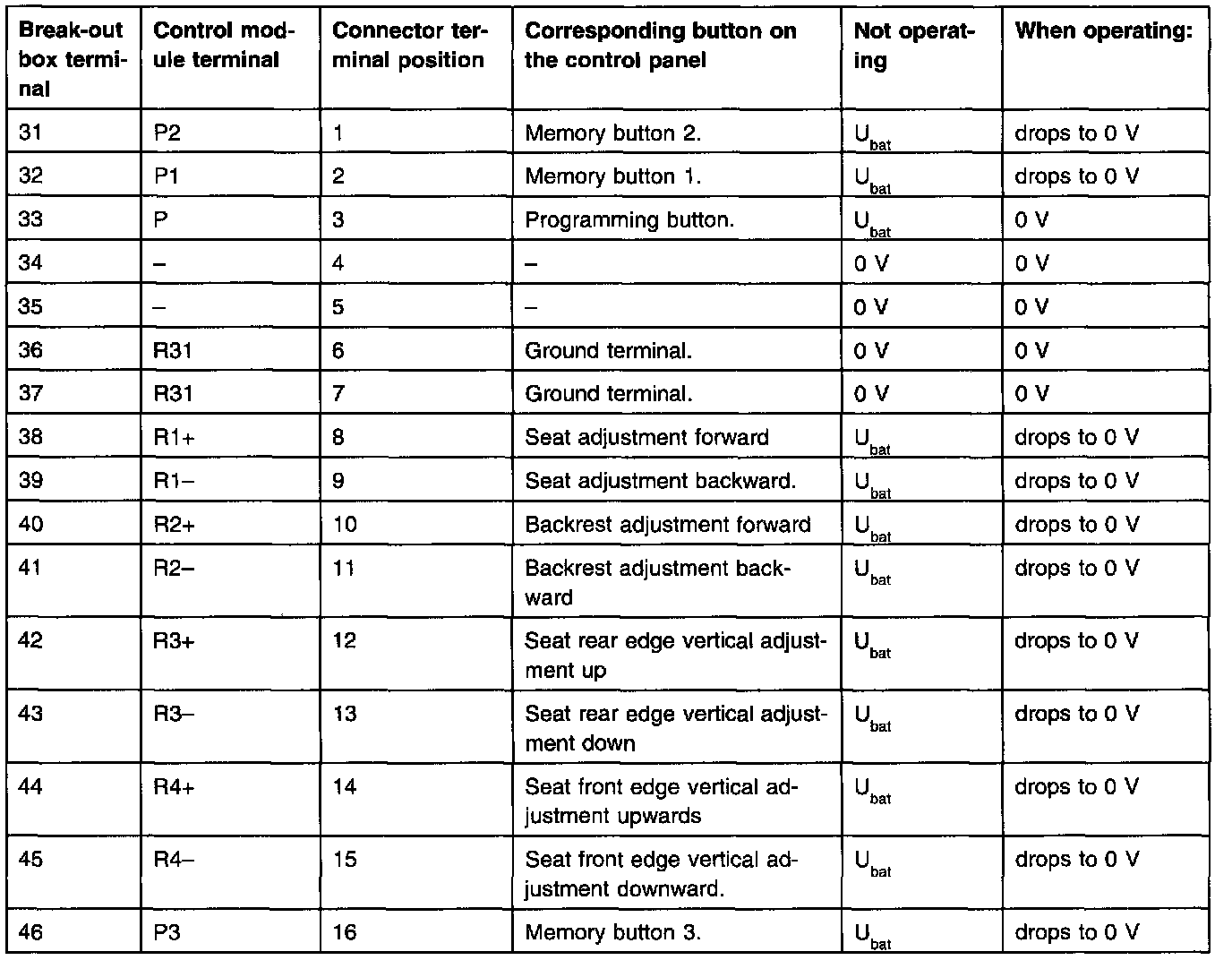

Connector D
16-pin green connector









Type: JAE
U (bat) = Battery voltage

Measurements taken on ground side, terminal 36 on break-out box, unless stated otherwise.
