Removing Rails/Holder

Remove:

- covers (1) (3 covers).
- bolts (3 bolts).
- rail.

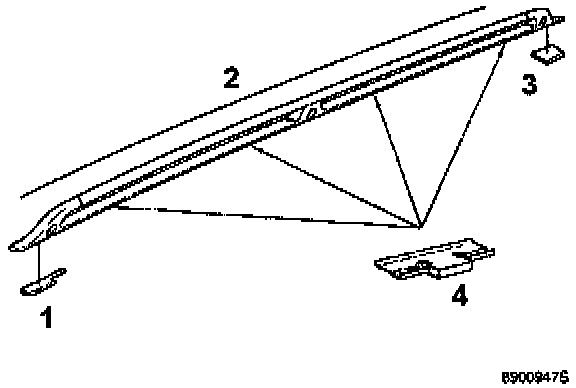

Remove:

- seal (1) from rail front end.
- side trim (2) from rail outer side.

Note:
If all the side trim is bonded the adhesive should be removed carefully.

- end fitting (3) from rail rear end.
- holders (4) (4 holders) carefully, (they will be used again).

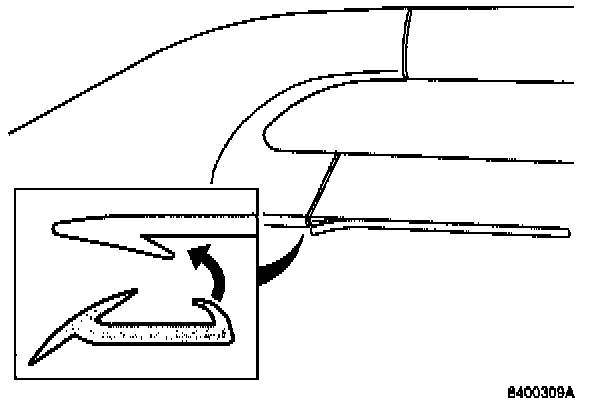

- Install the new side trim. Hook up under rail and press down over the rail side.





- Adjust trim lengthways so the cut-out in the trim is positioned In the middle of the rail central stay.

- Bond 5 mm (3/16") of surface in cut-out ends.
