Installing Holders/Rail

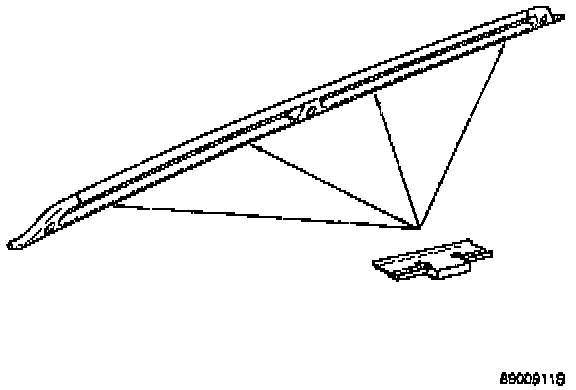

- Install 4 x holder.





Install:

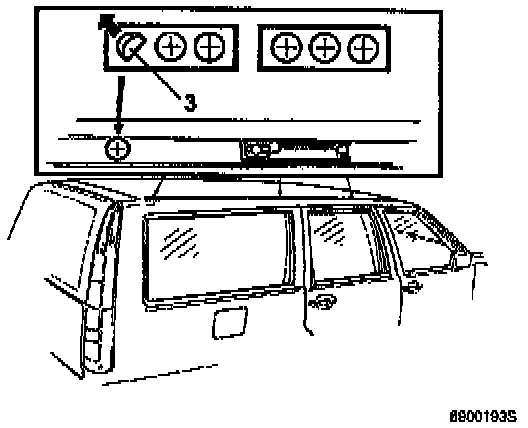

- butyl tape (3) (from the materials kit) on the existing seals over the bolt holes in the bodywork.





Install:

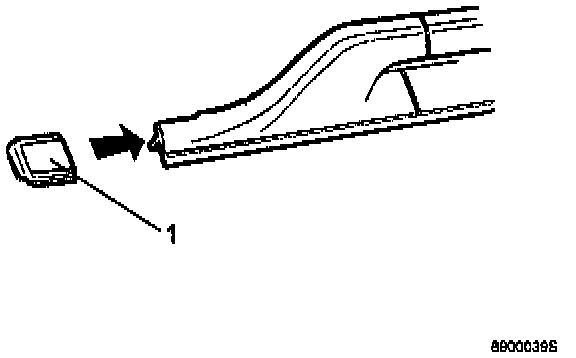

- end fitting (1) on rail.





Install:

- rail.
- bolts (3 bolts). Tighten to 5 Nm (44 in. lbs).

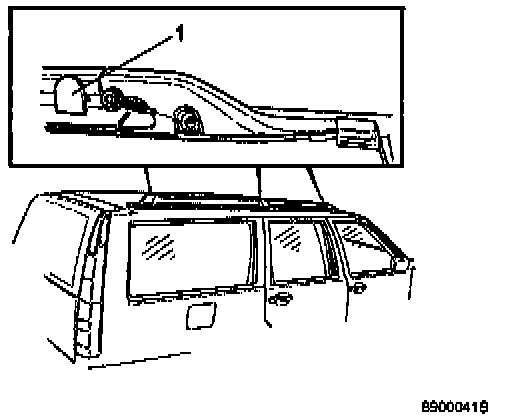

- covers (1).

Note:
Cover in older versions has one spike. In this case secure the cover using double sided adhesive tape (P/N 1161347-8).
