Sunroof / Moonroof Module: Service and Repair

Replacing sun roof control module




- Close sun roof.
- Remove:
- roof lamp panel (lens, mounting screws, connector).
- control module screw.
- Control module. Carefully pry straight down and forwards. Disconnect inner connector.


Install in reverse order.

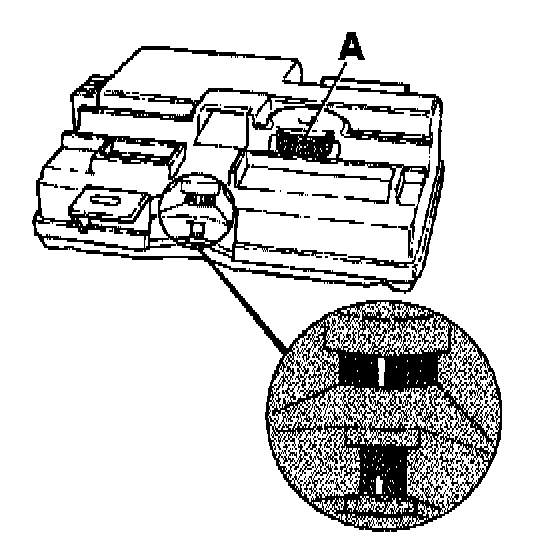

NOTE! The two white markings should be in position as illustrated.

NOTE! Check that the mechanism returns to "normal closed position".

Check function.
