Vehicles Without Pass. Air Bag

CAUTION: This procedure is for vehicles without a passenger Air Bag, for cars with a passenger Air Bag, Vehicles With Passenger Air Bag





- Turn ignition Off.
- Disconnect battery negative lead.

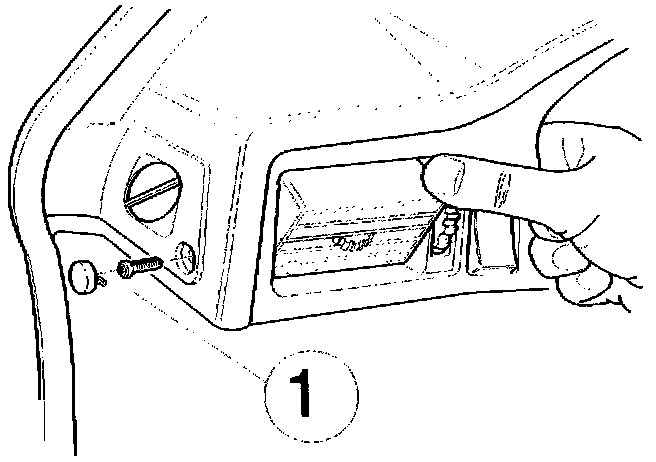

- Remove blind cover plugs, screws (2 x Torx 25) and right and left side defroster vents. See (1) in the image.





Remove:
- Driver's side dash board vent side defroster

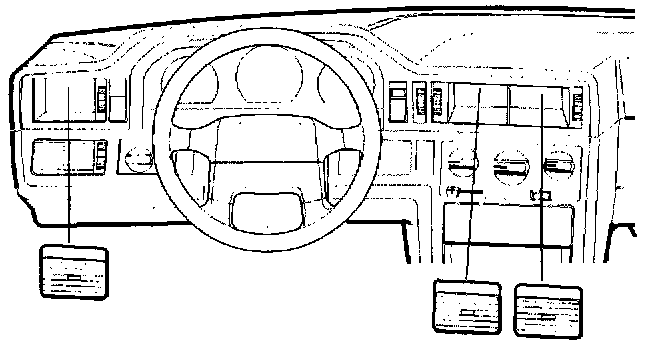

- The two center dash board vents. When removing dash board vents. Twist vents downwards and pull out, or carefully prize with a screwdriver at the side and pull out.





Remove:
- Left and right loudspeaker grilles.
- Plastic plugs (2) from left and right loudspeakers. Press the center of the plastic plug to loosen it before removing.
- Left and right loudspeakers.
- Connectors from left and right loudspeakers.

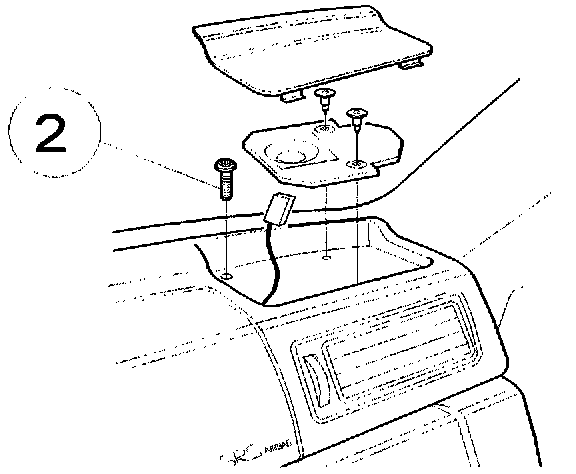

- Right loudspeaker screws (Torx 25). See (2) in image.

Removing Cover:





Remove mounting screws (9 x Torx 25) from the cover as follows:

Remove:
- Screws (x 2) at each A-pillar
- Screws (x 2) above combined instrument panel.
- Screw (x 3) above the left and center dash board vents.
- Screws (x 3) above the glove compartment.

Pull cover (with passenger module) back to release it from its guide by the center dash board vents. Carefully lift away the cover.

Installing cover:





- Install cover.
- Install mounting screws (9 x Torx 25) to the cover as follows.
- 2 screws at each A-pillar
- 2 screws above combined instrument panel.
- 3 screw above the left and center dash board vents.
- 2 screws above the glove compartment.





Install:
- Left and right loudspeaker connectors.
- Left and right loudspeakers.
- Plastic plugs (2) to left and right loudspeakers.
- Right loudspeaker screws (Torx 25). See (2) in image.
- Left and right loudspeaker grilles.





Install:
- The two center dash board vents.
- Driver's side dash board vent side defroster.
- Right and left side defroster vents, screws (2 x Torx 25) and blind cover plugs.
