Console: Service and Repair

- Ignition off.
- Unclip coin tray, upwards at the front.

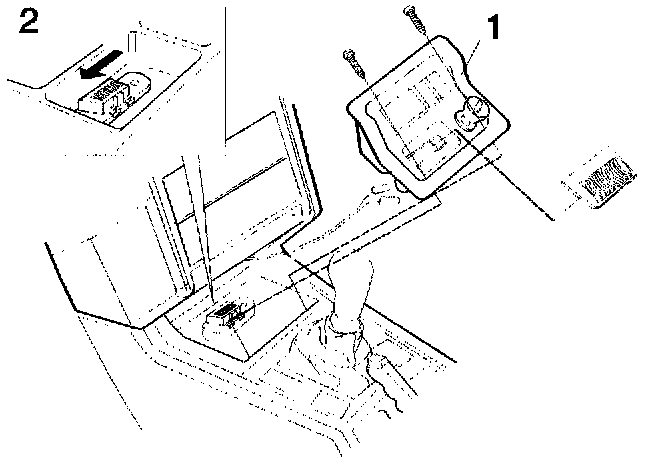

- Remove the 2 screws at the rear of the cigarette lighter compartment.
- Remove cigarette lighter compartment. Carefully pull back and up.
- Remove data link connector (DLC). Pull out though cut-out on left.





- Remove panel under parking brake lever.
- Remove cover in center console locker.
- Remove screws at the front of the tunnel compartment.





- Disconnect parking brake connector:

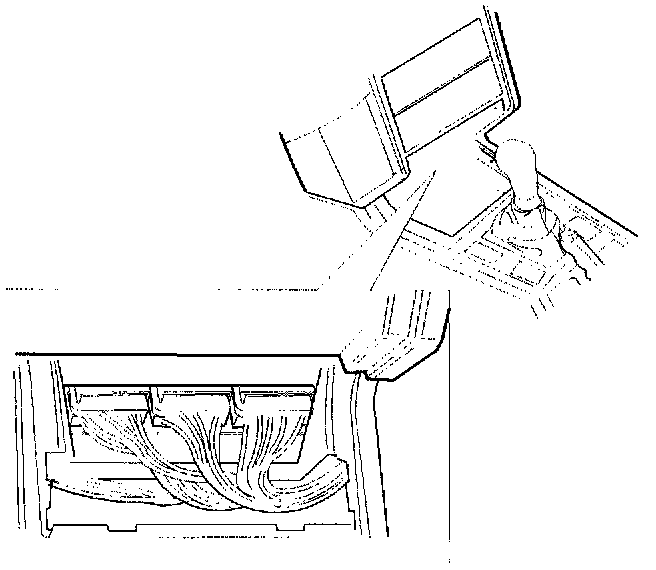

Disconnect connectors at the front of the tunnel compartment.
- Lift up carefully.
- Install in reverse order of removal.
