Replacing Gas Struts

Replacing Gas Struts

Remove panels before this procedure Refer to Removing Tailgate Components

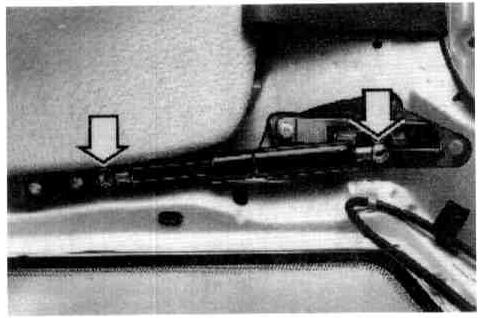

Slacken off the bracket holding the gas strut to the bodywork.
Press off the gas strut as illustrated.
