Basic Alarm Contact

Basic Alarm Components:


4. Alarm Control Module

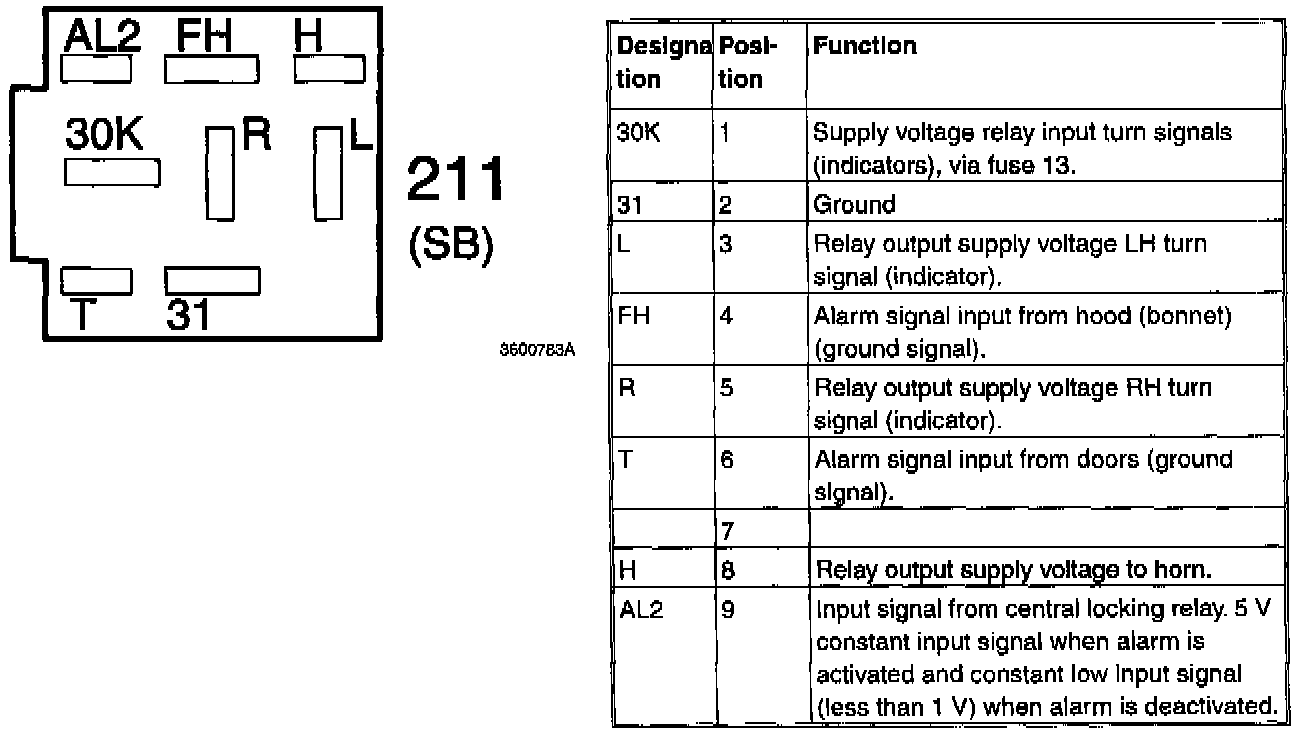

Basic Alarm System Relay:

The control module is mounted on the relay plinth (positions 210/211) in the passenger compartment fusebox. There are three integral relays for:
Start inhibitor, Visual signal and Horn signal.













The Following Components In The Car Are Used For All Anti-Theft Alarm Functions:

#3 Alarm Relay Plinth/Alarm Module:

1. Door contacts
2. Trunk (boot) contact
3. Electrical control center with alarm relay plinth (items 210/211)
4. Electrical control center with central locking relay (items 205/206)

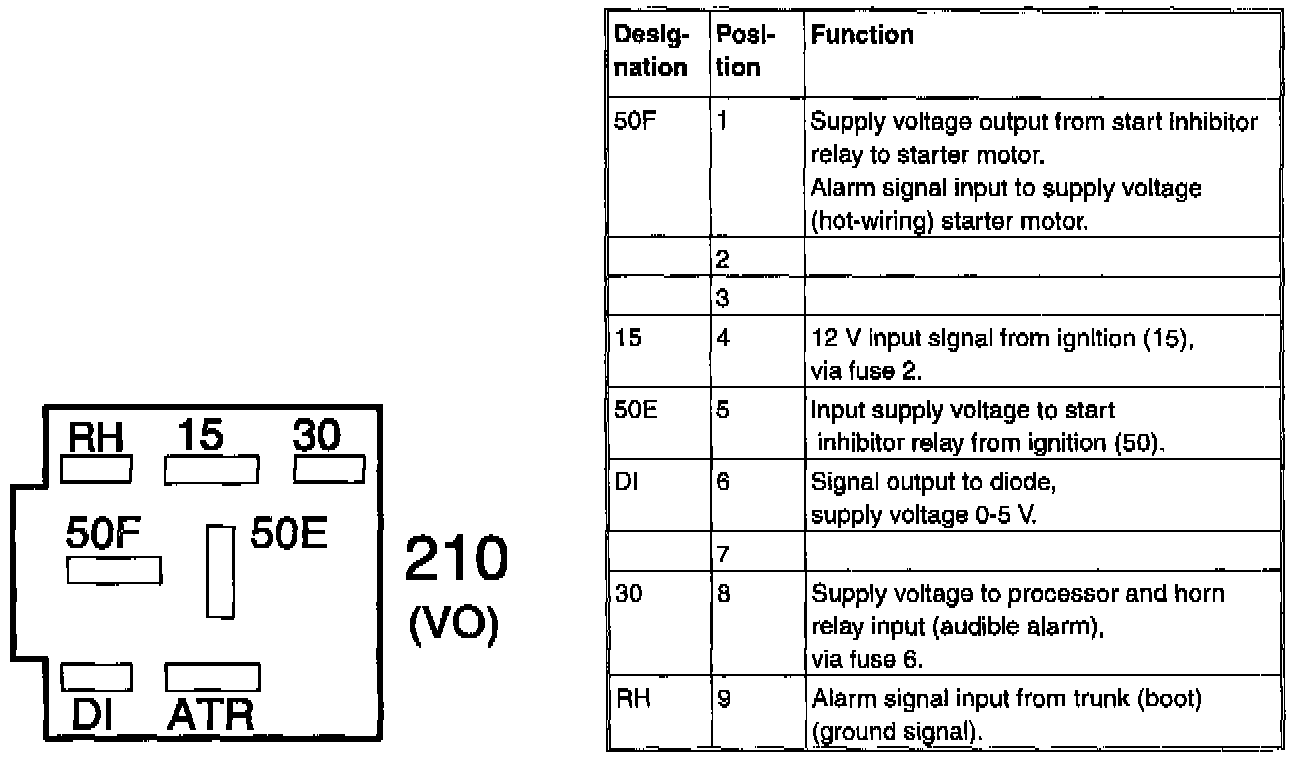

Inhibitor Integral In Relay Plinth 210-50F Relay/Module:
