Activated Too Long

VA. Diagnostic trouble code (DTC) information

Condition
If any of the buttons on the control panel have been activated for longer than 60 seconds diagnostic trouble code (DTC) PSL/PSR-423 is set.

Possible source
- One of the buttons has stuck in the down position.
- Defective control panel.
- Short-circuit to ground in wiring
- Defective control module.

Fault symptom(s)
- One or more seat motors operate only briefly before shutting down automatically.
- Seat does not operate.
- This diagnostic trouble code (DTC) may occur without any fault symptom being apparent.
- Fault-tracing begins at VB. Activated too long.





VB. Activated too long

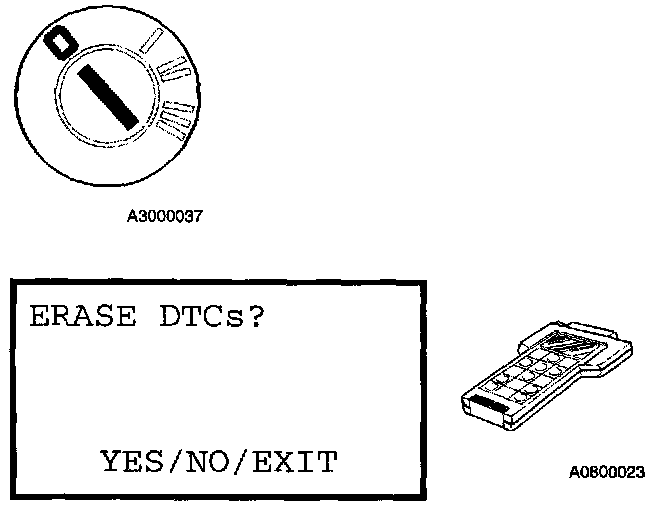

VB1: Erasing diagnostic trouble code (DTC)
- Ignition OFF.
Erase diagnostic trouble codes (DTCs)

Wait one or two minutes so that the diagnostic trouble code (DTC) has time to be set and read off diagnostic trouble codes (DTCs) again.

Is the diagnostic trouble code (DTC) set again?

Yes:
- VB3

No:
- VB2

VB2: Fault-tracing information
A button has been pressed for more than 60 seconds. If the diagnostic trouble code (DTC) is not set again no further action need be taken.

Then continue with:
- Fault corrected

VB3: Checking function of the control buttons
Checking the function of all the control buttons on the panel.

Are any of the control buttons stuck down so they are
permanently activated?

Yes:
- VB4

No:
- VB5





VB4: Replace component

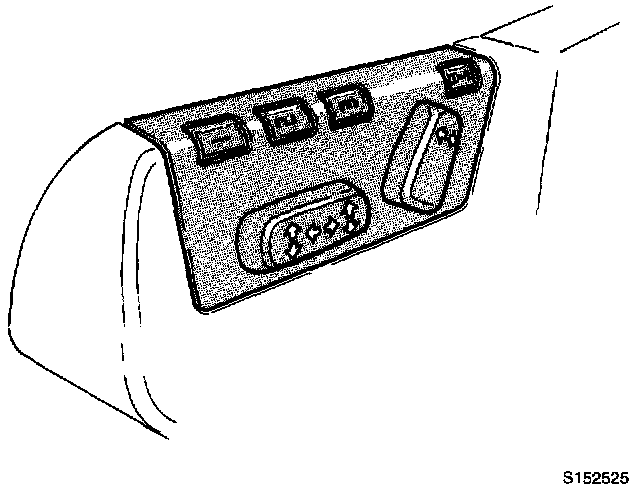

Free the sticking control button(s) or replace the control panel with a new one. Control Panel Replacement, Service and Repair

Then continue with:
- VB9

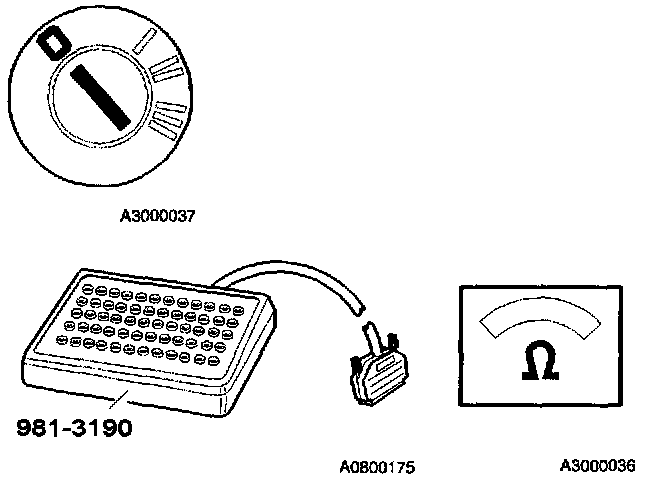

VB5: Connecting the break-out box
- Ignition OFF.
- Connect break-out box to 16-pin connector D.Connecting The Break-out Box

Then continue with:
- VB6





VB6: Check resistance to control buttons
- Ignition OFF.
- Break-out box connected.
Connect an ohmmeter between the positions for the respective control buttons on the break-out box.

The ohmmeter should read infinite resistance for all readings.

If reading is OK:
- VB8

If reading is incorrect:
- VB7





VB7: Checking for a short-circuit
Short-circuit to ground in the wire to a control button on the panel.

Check wiring for a short-circuit to ground.

Then continue with:
- VB9





VB8: Replace component

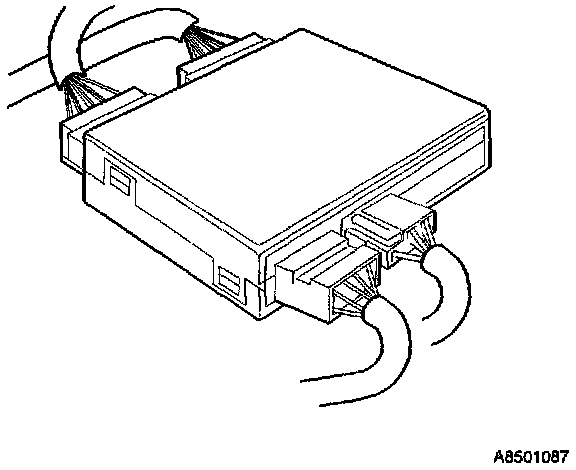

Try a new control module. Control module, Service and Repair

Then continue with:
- VB9





VB9: Verification
Hint: After carrying out the repair, check that the fault has been remedied as follows.
- Ignition OFF.
Test all functions on the power seat using the control buttons and the memory buttons.

Are all functions operating correctly?

Yes:
- Fault corrected

No:
- VB10

VB10: Fault-tracing information
The verification result shows that the fault persists.
Do you want to exit fault-tracing?

Yes:
- Fault not corrected

No:
- VB1
