Moves In Wrong Direction

NA. Diagnostic trouble code (DTC) information





Condition
Motor 2 controls the backrest angle. If the control module receives a signal from the potentiometer that motor 2 is turning in the wrong direction diagnostic trouble code (DTC) PSL/PSR-144 is set.

Possible source
- Wiring to motor 2 incorrectly connected.
- Wiring to potentiometer for motor 2 incorrectly connected.
- Defective control module.

Fault symptom(s)
- Backrest moves backward when control button pressed to move backrest forward or vice versa.
- Backrest moves in wrong direction when memory button pressed.
- Fault-tracing begins at NB. Moves in the wrong direction.

NB. Moves in the wrong direction

NB1: Checking movement direction
Operate backrest changing the angle forward/backward using the control button.

Does the backrest move in the correct direction?

Yes:
- NB3

No:
- NB2








NB2: Switching connections on motor 2
- Ignition OFF.
- Remove seat from car.

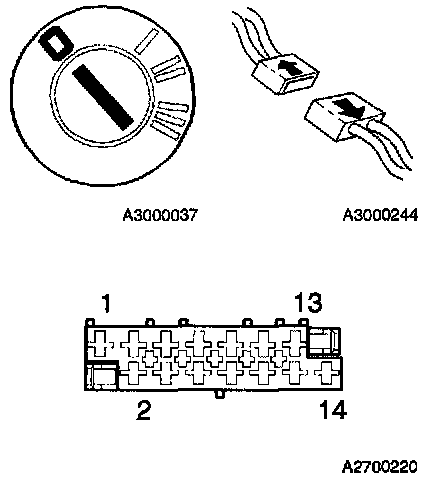

- Disconnect gray 14-pin connector B.

Switch over the leads:

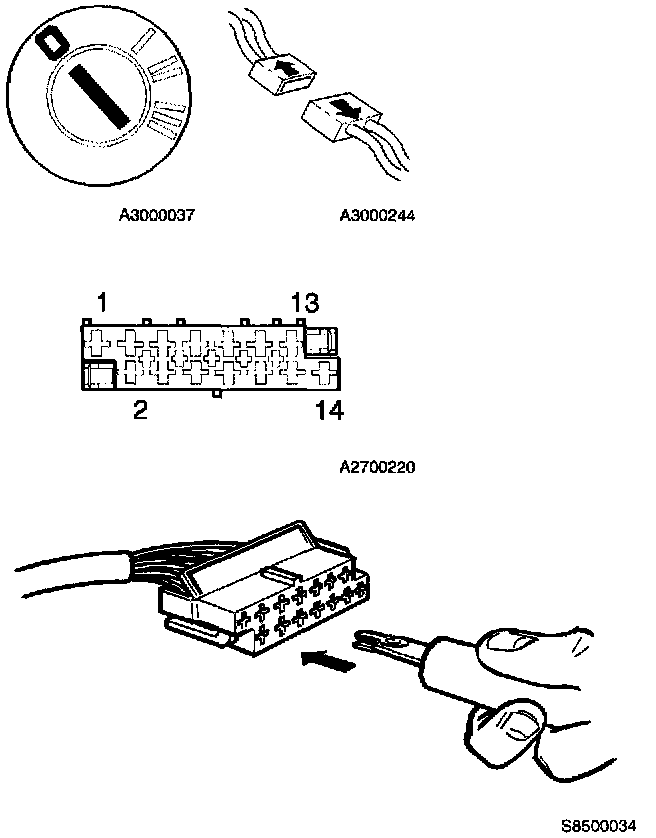

- Press out pins in pos. 1 (green lead) and 2 (black lead) from connector B. Use terminal removal tool 951 2631.
- Switch the leads over and press the pins into the connector.

Then continue with:
- NB5





NB3: Checking wiring in potentiometer 2
- Ignition OFF.
- Remove seat from car.
- Disconnect gray 14-pin connector B.

Check that the blue/white lead is connected to B:5 and the yellow/white lead is connected to B:4.

If the leads are in the wrong positions:
- Press out pins B:5 and B:4. Use terminal removal tool 951 2631.
- Switch the leads over and press the pins into the connector.
- Reinstall connector

Were the connections OK?

Yes:
- NB4

No:
- NB5





NB4: Replace component
The motor and potentiometer are correctly connected to the control module.

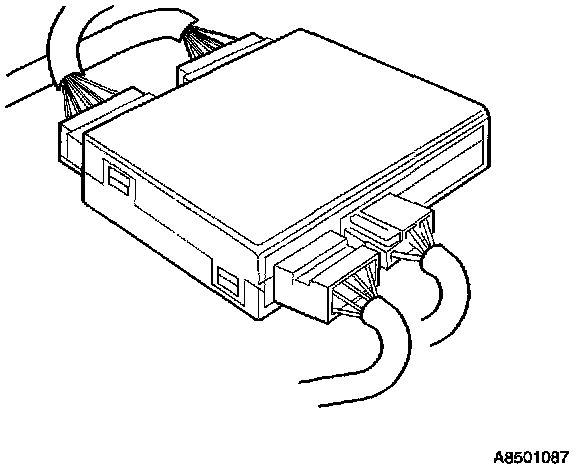

Try a new control module. Control module, Service and Repair

Then continue with:
- NB5





NB5: Verification
- Ignition OFF.
- Connect up seat in car.

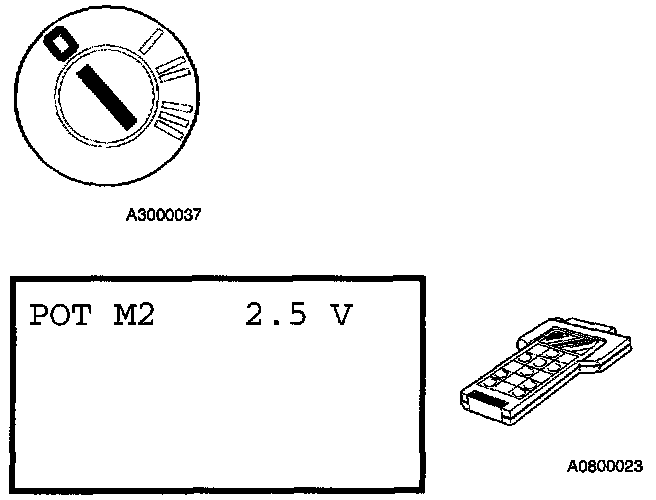

Select scrolling values and read off the value from the potentiometer for motor 2.

Operate backrest forward/backward using the control button.

The value should increase when the backrest moves forwards and decrease when it moves backwards.

If reading is OK:
- Fault corrected

If reading is incorrect:
- NB6

NB6: Fault-tracing information
The verification result shows that the fault persists.
Do you want to exit fault-tracing?

Yes:
- Fault not corrected

No:
- NB1
